5.15. Shorting Blocks: Factory Defaults
The C8051F970 target board comes from the factory with pre-installed shorting blocks on several headers.
Figure 6 shows the positions of the factory default shorting blocks.
By default, a shorting block is installed in the following locations:

J1 (VREG Select): +3.3V connected to VREG

J2 (VBAT Select): CR2032 connected to VBATT

JP1: P0.1 connected to VCP_RX

JP2: P0.2 connected to VCP_TX

JP3: VDD connected to VDD_MCU

JP4: VDD connected to VDD_LED

JP5: P5.0 connected to Potentiometer
In addition, the VDD Select switch is in the OFF position by default.

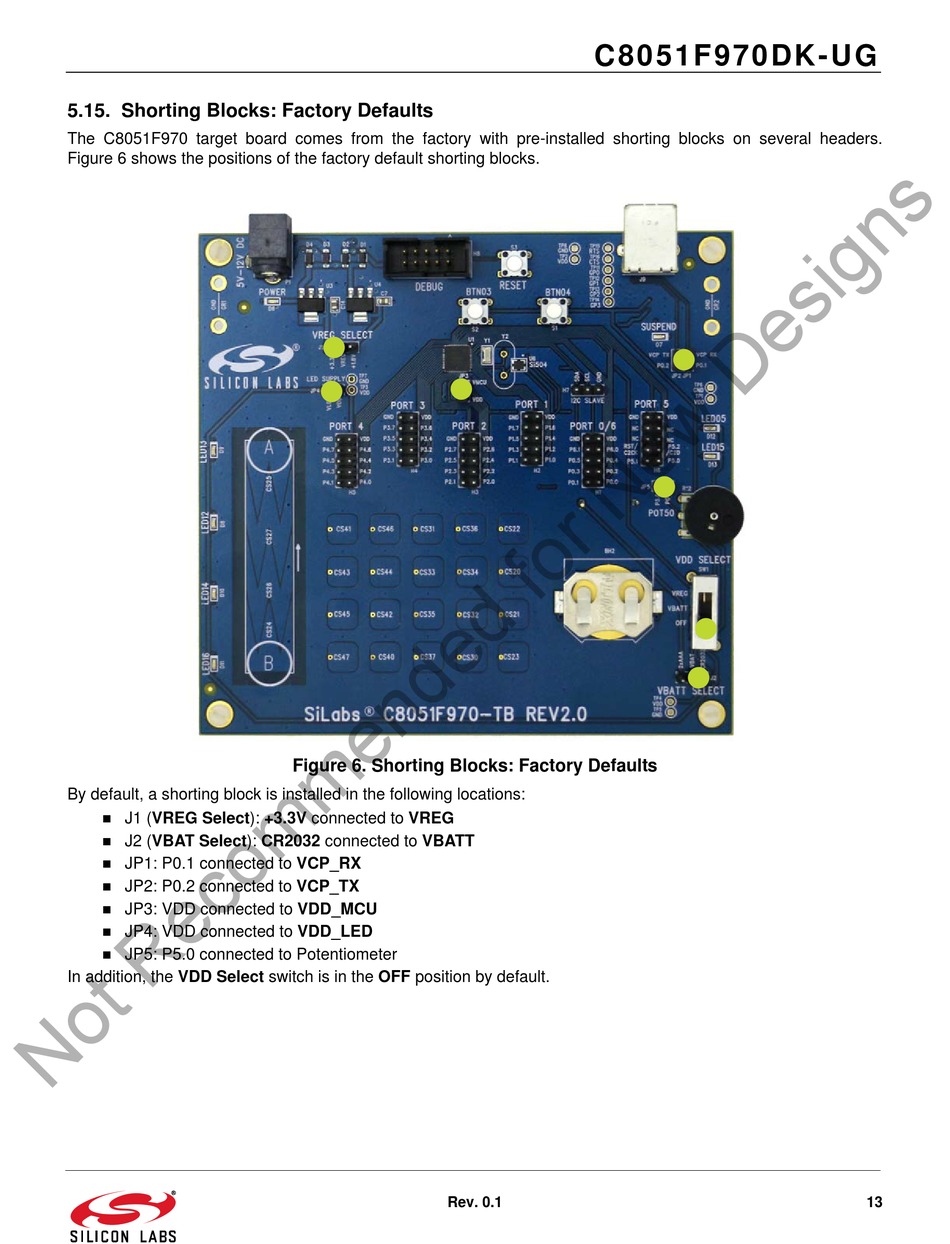

Figure 6. Shorting Blocks: Factory Defaults
Rev. 0.1
C8051F970DK-UG
13
