5 Hardware References
On the following pages, Table 1 shows the various connections available on the board. Fig 3,
below, illustrates the location of many of these components on the board:
A:SW1 – Isolated
Emulation and UART
communication Enable
Switch
A:J1 – USB
emulation/UART
connector
SW4 – ADC VREFHI
Control Switch for
ADC C & D
J8 – USB host/device
connector
SW3 – ADC VREFHI
Control Switch for
ADC A & B

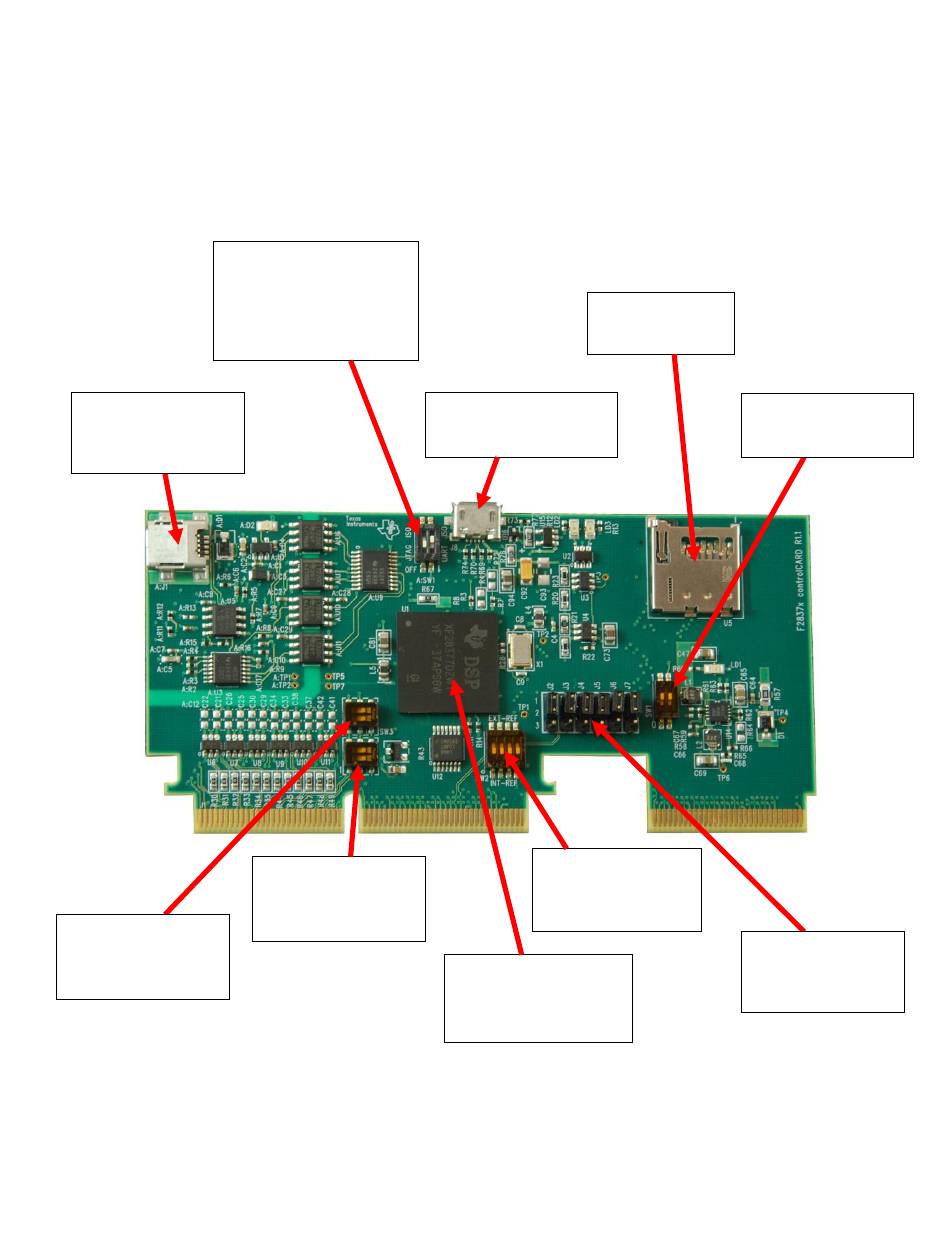

Fig3: Key components on the controlCARD
U5 - uSD card
connector slot
SW2 – External
VREFHI Disable
Switches for ADC
U1 - C2000 Delfino
F28377D
Microcontroller
7
SW1 – Boot Mode
Switch
J2-J7 – USB PHY
Connection
Enable Jumpers
