ADC VREFHI Control Switch for ADC modules C & D:
SW4
Switch 1 (lower switch) – VREFHI Control Switch for ADC module C:


Switch 2 (upper switch) – VREFHI Control Switch for ADC module D:


Isolated emulation & UART communication enables:
A:SW1
Switch Position 1 – JTAG Enable:


Switch Position 2 – ISO UART communication enable:


In the left position – If ADC-C is configured to use an external
reference via SW2, the ADC will be referenced to the alternate
reference chosen by R42/R43 (see above).
– If ADC-C is configured to use an external
In the right position
reference via SW2, the ADC will be referenced to a precise 3.3V
reference located on the controlCARD.
In the left position – If ADC-D is configured to use an external
reference via SW2, the ADC will be referenced to the alternate
reference chosen by R42/R43 (see above).
– If ADC-D is configured to use an external
In the right position
reference via SW2, the ADC will be referenced to a precise 3.3V
reference located on the controlCARD.
– All signals between the xds100v2 emulation logic and the
ON
MCU will be connected. This setting is valid when the MCU is
being debugged or programmed via the on-card xds100v2
emulator.
OFF – The xds100v2 emulation logic will
the MCU. This setting is valid when the device will boot from
FLASH, boot from a peripheral directly, or when an external
JTAG emulator will be used.
– The C2000 MCU's GPIO-28 (and pin76 of the 180pin
ON
controlCARD connector) will be coupled to the FTDI's USB-to-
Serial adapter. This allows UART communication to a computer
via the FTDI chip. However, in this position, GPIO-28 will be
forced high by the FTDI chip. Functionality of pin76 of the
connector will be limited.
OFF – The C2000 MCU will
to-Serial adapter. Pin76 of the 180pin controlCARD connector
will be directly connected to GPIO-28.

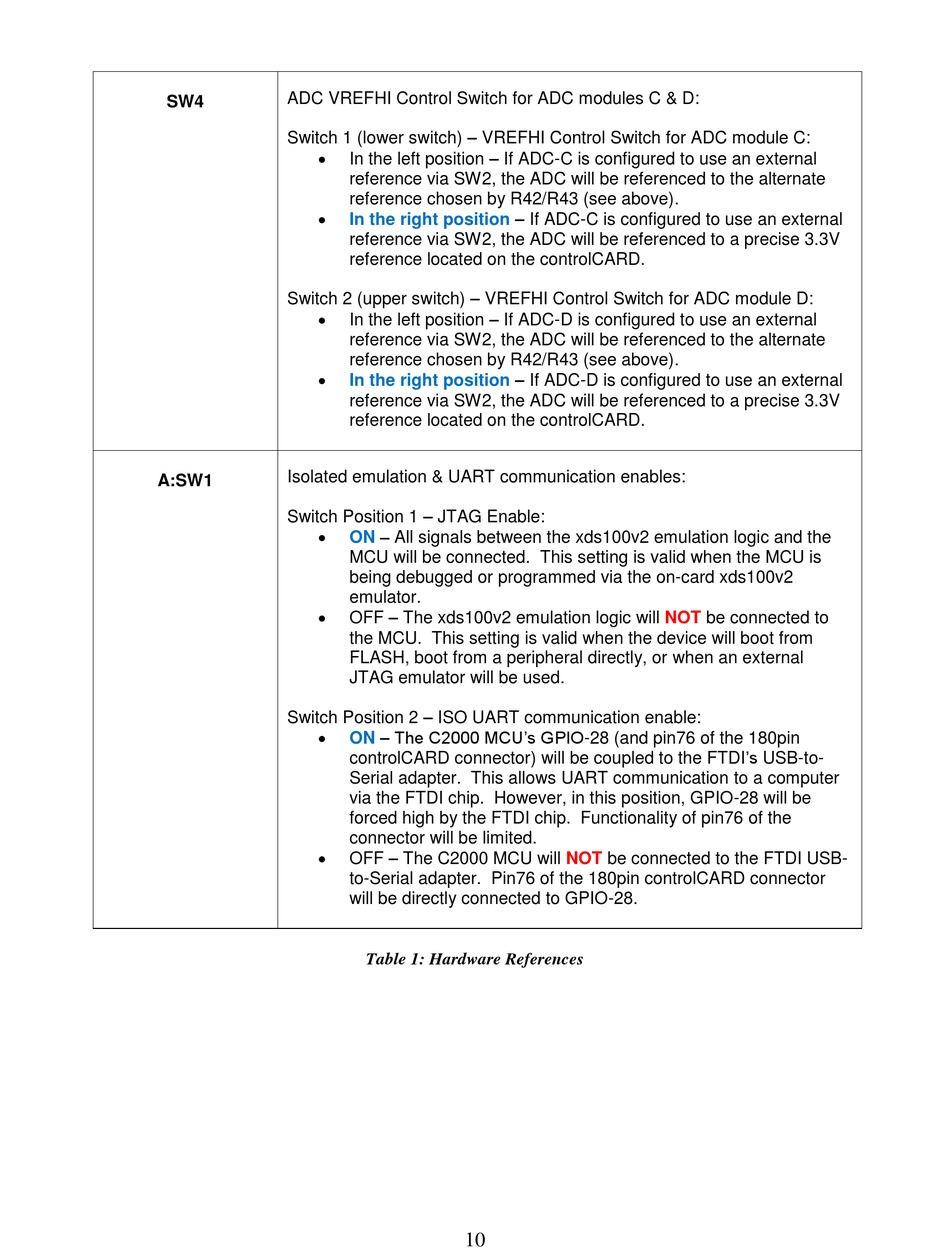

Table 1: Hardware References
10
NOT be connected to
NOT be connected to the FTDI USB-
