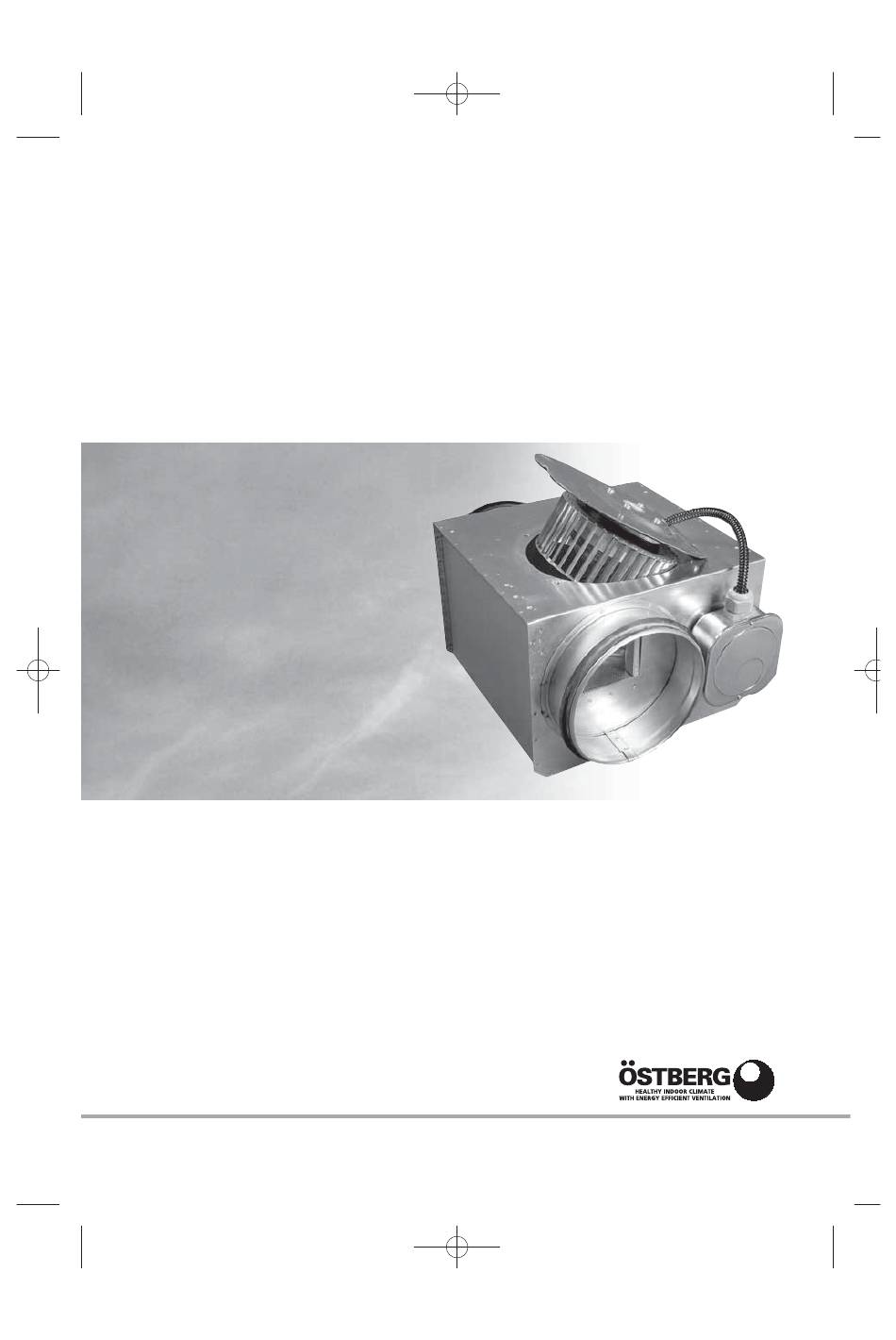

- Page 1 1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 1 Installation and directions for use Low profile duct fan, ’LPK’ UL VERSION...
- Page 2 1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 2 This directions for use contains the following product: Low profile in line duct fan ’LPK’ Read and save these directions. CAUTION! FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS. D E S C R I P T I O N •...
-
Page 3: Maintenance
1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 3 M A I N T E N A N C E WARNING! TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: • Use this unit only in the manner intended by the •... -
Page 4: Wiring Diagrams
1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 4 W I R I N G D I A G R A M S Wiring diagram no: 4040076 Wiring diagram no: 4040077 For ’LPK’-fans type: For ’LPK’-fans type: ’LPK’ 4”B, ’LPK’ 5”B, ’LPK’ 4”A, ’LPK’ 5”A. ’LPK’... -
Page 5: Sound Data
1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 5 S O U N D D A T A The sound data have been compiled by means of sound D E S I G N A T I O N S L wA Tot: Total A-weighted sound power level dB(A) measurements methods as follows: Pressure and drop: SS-ISO 5801. - Page 6 1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 6 P R E S S U R E A N D F L O W D I A G R A M S LPK 4”A/B LPK 5”A/B LPK 6”B/D...
- Page 7 1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 7 I N S T A L L A T I O N I N S T R U C T I O N S Installation instructions for exhaust systems for duct fan, type ’LPK’. Exhaust system Exhaust system for ceiling Exhaust system...
- Page 8 1270140_LPK_UL_utg1.qxp 2009-09-04 10:23 Sida 8 OSTBERG AMERICAS INC. 55 Raglin PL # 3 • Cambridge, N1R 7J2 • Canada Phone 519-623-6363 • Telefax 519-623-8543 www.ostberg.com...
