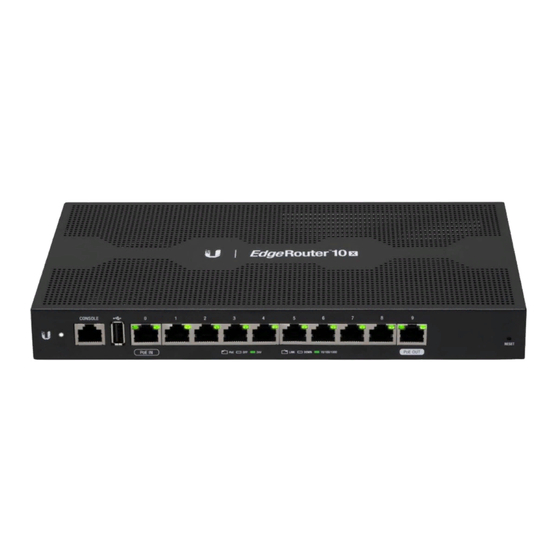

Ubiquiti EdgeRouter ER-10X Quick Start Manual
  1. Manuals
  2. Brands
  3. Ubiquiti Manuals
  4. Switch
  5. EdgeRouter ER-10X
  6. Quick start manual

Ubiquiti EdgeRouter ER-10X Quick Start Manual

Hide thumbs Also See for EdgeRouter ER-10X:
Table of Contents

Advertisement

Quick Links

Download this manual

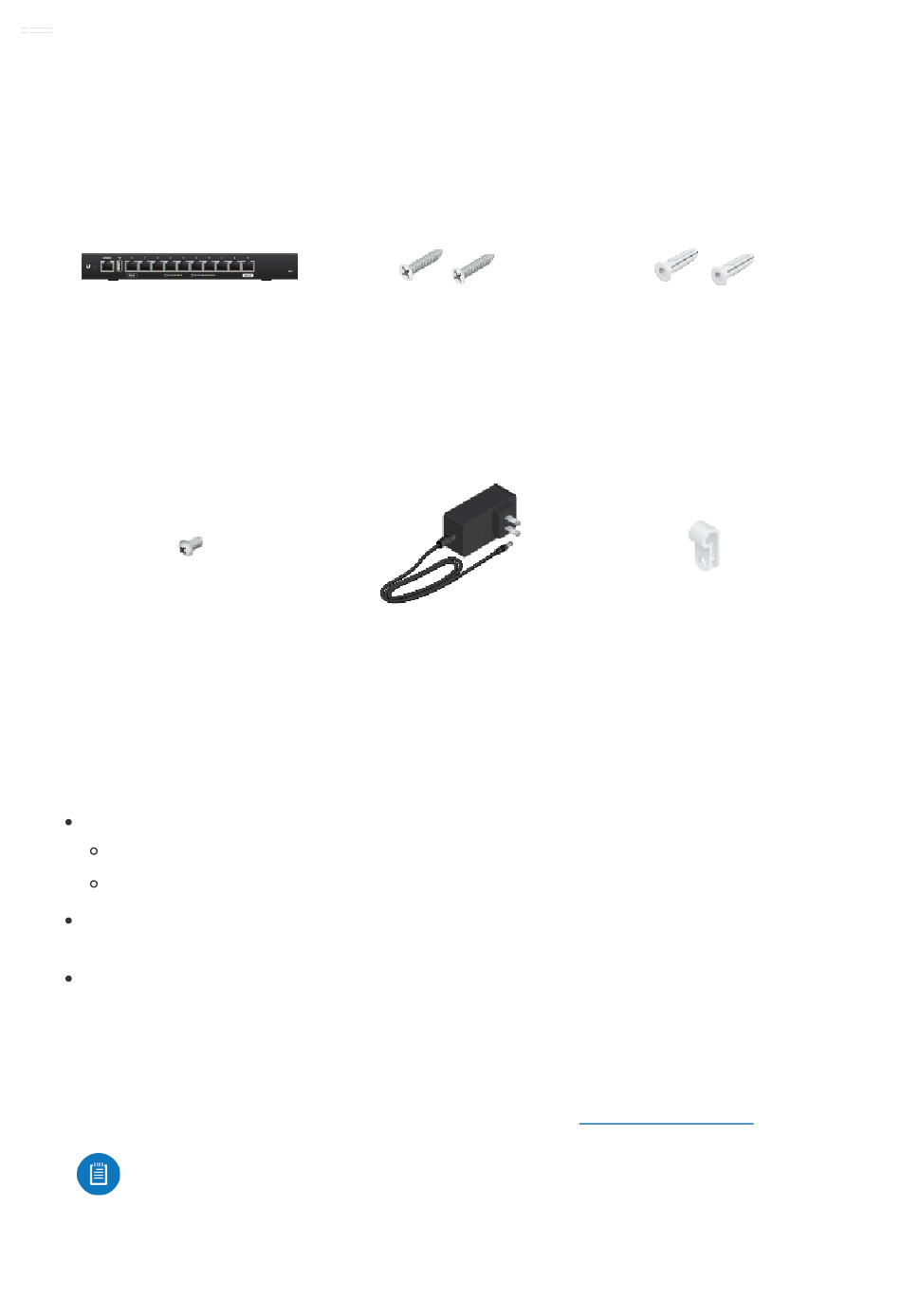

Package Contents
EdgeRouter ER-10X
Ground Screw
Installation Requirements
Wall-mounting (optional)
Drill with 6 mm drill bit
Phillips screwdriver
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the
AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit:
Note:
Although the cabling can be located outdoors, the EdgeRouter itself
should be housed inside a protective enclosure.
Hardware Overview
ER-10X Quick Start Guide
Wall Mount Screws (Qty. 2)
Power Adapter (24V, 1A)
Wall Mount Anchors (Qty. 2)
Cable Clip
ui.com/toughcable

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeRouter ER-10X and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti EdgeRouter ER-10X

Summary of Contents for Ubiquiti EdgeRouter ER-10X

  • Page 1 AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the EdgeRouter itself should be housed inside a protective enclosure.
  • Page 2 ER-10X Quick Start Guide System LED Flashing White Bootup in Progress Ready for Use White Not Connected to Ubiquiti® Network Management System (UNMS™) Ready for Use Blue Connected to UNMS Ready for Use Steady Blue with Occasional Flashing Unable to Connect to UNMS...

  • Page 3: Hardware Installation

    Green Link Established ER-10X Quick Start Guide Flashing Indicates Activity RJ45 PoE LED (Port 9) No PoE Green 24V 2-Pair Passive PoE Output Console RJ45 serial console port for Command Line Interface (CLI) management. Reserved for future use. RJ45 (Ports 0 - 9) All RJ45 ports can be used for routing and support 10/100/1000 Mbps Ethernet connections.
  • Page 4 ER-10X Quick Start Guide...
  • Page 5 ER-10X Quick Start Guide Grounding the EdgeRouter (Recommended)

  • Page 6: Connecting Power

    The Power Adapter grounds the device; however, you can add optional ESD ER-10X Quick Start Guide grounding for enhanced ESD protection (ground wire not included). Optional Connecting Power...
  • Page 7 3. Launch your web browser. Enter the appropriate IP address in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...

  • Page 8: Static Ip Address

    3. Launch your web browser. Type https://192.168.1.1 in the address field. Press enter (PC) or return (Mac). 4. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...

  • Page 9: Configuring Poe Settings

    ER-10X Quick Start Guide The EdgeOS Configuration Interface will appear, allowing you to customize your settings as needed. For more information, refer to the EdgeOS User Guide, which is available at ui.com/download/edgemax For more information on PoE configuration, refer to “Configuring PoE Settings”.

  • Page 10: Specifications

    ER-10X Quick Start Guide 2. The Interface Configuration window will appear. Select the appropriate PoE setting, and click Save. 3. The Ethernet port’s PoE LED will confirm the PoE setting. For detailed instructions on configuring other features, please refer to the EdgeOS User Guide.

  • Page 11: Safety Notices

    ER-10X ER-10X Quick Start Guide Passive PoE Voltage Range DC/PoE Passthrough Max. Wattage per Port 15W (24V) Supported Voltage Range 9 - 30VDC Button Reset LEDs System Booting Up (Blue), Powered On RJ-45 Ports Link / Activity, PoE Processor MIPS 1004Kc 880 MHz Dual-Core System Memory 512 MB DDR3 On-Board Flash Storage...

  • Page 12: Electrical Safety Information

    WARNING: Do not use this product in location that can be submerged by water. ER-10X Quick Start Guide WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Electrical Safety Information 1.

  • Page 13: Weee Compliance Statement

    ER-10X Quick Start Guide CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2020 Ubiquiti Inc. All rights reserved.
