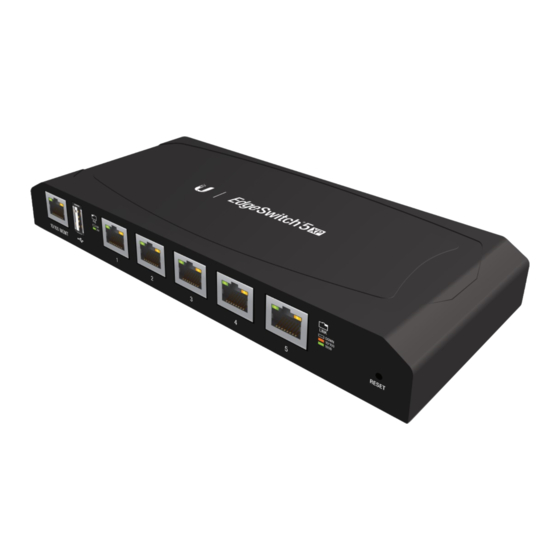

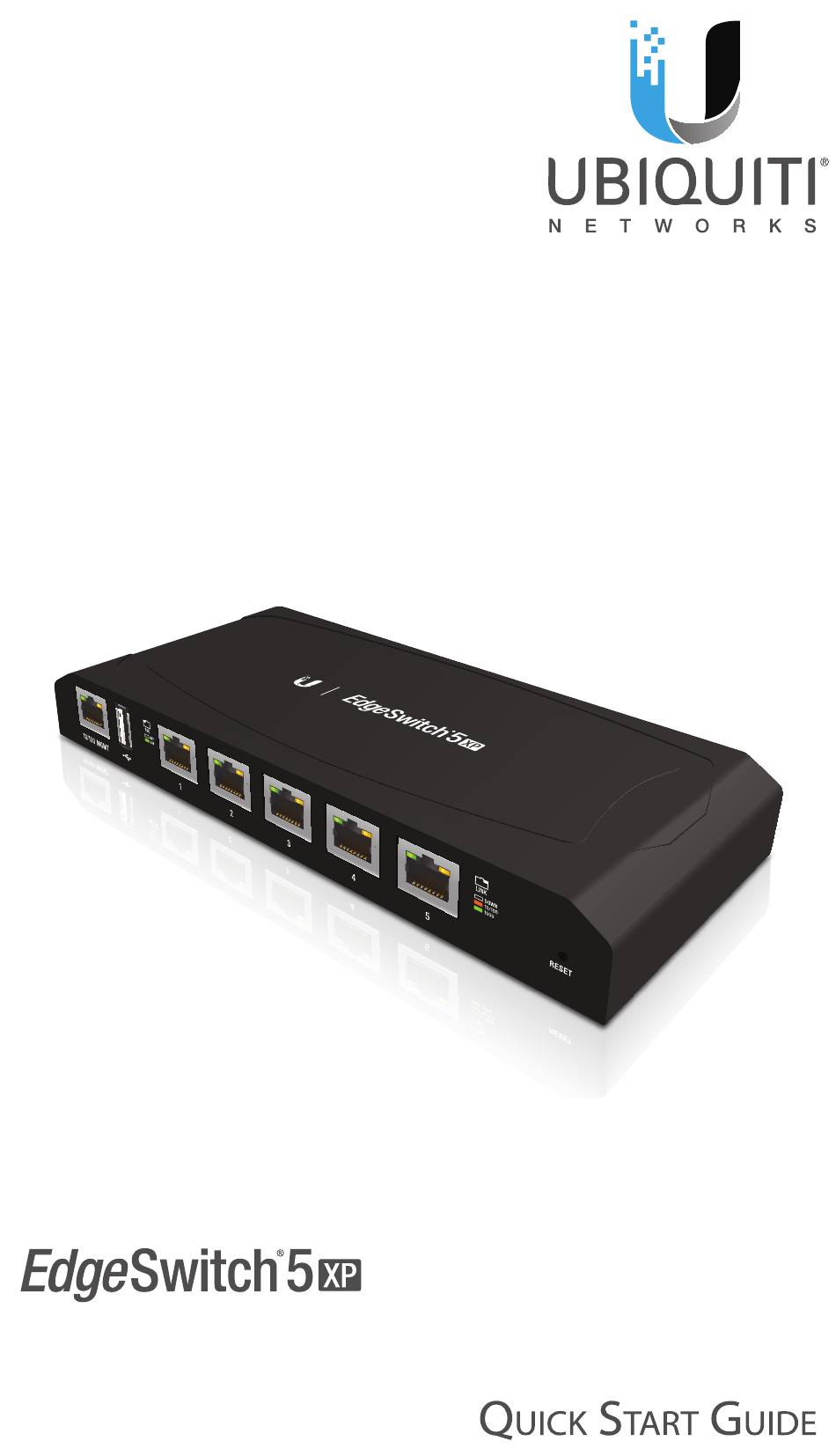

- Page 1 5-Port Power over Ethernet Managed Switch Model: ES-5XP...
-
Page 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch® 5XP. This Quick Start Guide is designed to guide you through installation and includes warranty terms. Package Contents EdgeSwitch 5XP Screws Anchors (Qty. 2) (Qty. 2) 5-Port Power over Ethernet Managed Switch... -
Page 3: Hardware Overview
Hardware Overview Back Panel Grounding Grounding Slot Slot Power Ventilation Holes Note: There are additional ventilation holes on the top and sides of the EdgeSwitch. Front Panel Ports Management Reset Interface Description 10/100 Mbps port used to access the Management EdgeSwitch Configuration Interface. - Page 4 Front Panel LEDs Power/Link Speed/Link/Act State Status No Power/No Link After bootup, the LED indicates power. After an initial link is established, the LED indicates a Power/ 10/100 Mbps connection. If the link Link Amber terminates, the LED turns off until a link is re-established.
-
Page 5: Hardware Installation
AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable IMPORTANT: Although the cabling can be located outdoors, the EdgeSwitch itself should be housed inside a protective enclosure. -
Page 6: Wall Mounting
Wall-Mounting To mount the EdgeSwitch on a wall: 1. Use a 6 mm drill bit to drill two holes 60 mm apart. 2. Insert the Anchors into the holes. 3. Use a Phillips screwdriver to secure a Screw to each anchor. Leave a clearance of approximately 3 mm between each screw head and its anchor. - Page 7 Grounding the EdgeSwitch (Optional) The EdgeSwitch is grounded through the Power Adapter; however, you can add optional ESD grounding for enhanced ESD protection. 1. Insert a ground wire (not included) through a corner slot. 2. Twist tie to secure the ground wire to the EdgeSwitch. 3.
-
Page 8: Connecting Power
Connecting Power 1. Connect the power connector of the Power Adapter to the Power port of the EdgeSwitch. 2. Connect the Power Cord to the power port on the Power Adapter. Connect the other end of the Power Cord to a power outlet. -
Page 9: Connecting Ethernet
Connecting Ethernet 1. Connect an Ethernet cable from the Ethernet port of your computer to the Management port of the EdgeSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the EdgeSwitch. Note: PoE is disabled by default on all numbered ports and is not available on the Management port. -
Page 10: Accessing The Configuration Interface
Password fields. Click Login. The Configuration Interface will appear and allow you to customize your settings. You can enable PoE on the Ports tab. You can also manage your device using the Ubiquiti® Network Management System. UNMS lets you configure, monitor, ™... -
Page 11: Specifications
Specifications ES-5XP Dimensions 197 x 87.5 x 27.3 mm (7.76 x 7.28 x 1.61") Weight 250 g (8.82 oz) Power Input 24VDC, 2.5A Power Adapter (Included) Max. Power Consumption PoE Out Voltage Range 22-24VDC Max. PoE Wattage Per 11.5W Data Port ESD Rating ±24 kV Air/Contact... -
Page 12: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Failure to provide proper ventilation may cause fire hazard. Keep at least 20 mm of clearance next to the ventilation holes for adequate airflow. WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. -
Page 13: Limited Warranty
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 14: Limitation Of Liability
SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 15 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 16: Australia And New Zealand
Australia and New Zealand Warning: This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. - Page 17 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
-
Page 18: Declaration Of Conformity
български [Bulgarian] С настоящото UBIQUITI NETWORKS декларира, че това устройство ES-5XP е в съответствие със съществените изисквания и други приложими разпоредби на Директиви 2014/30/ЕС, 2014/35/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: www.ubnt.com/compliance Hrvatski [Croatian] UBIQUITI NETWORKS ovim putem izjavljuje da je ovaj uređaj ES-5XP... -
Page 19: Online Resources
Íslenska [Icelandic] Hér, UBIQUITI NETWORKS, því yfir að þetta ES-5XP tæki er í samræmi við grunnkröfur og önnur viðeigandi ákvæði tilskipana 2014/30/ESB, 2014/35/ESB. Fullur texti ESB samræmisyfirlýsing er að finna á eftirfarandi netfangi: www.ubnt.com/compliance Italiano [Italian] Con la presente, UBIQUITI NETWORKS, dichiara che questo dispositivo ES-5XP, è... - Page 20 New York, NY 10017 ©2012-2018 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeSwitch, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S.
