Package Contents
EdgeSwitch 10X
Ground Screw
Installation Requirements
Wall-mounting (optional)
Drill with 6 mm drill bit
Phillips screwdriver
For indoor applications, use Category 5 (or above) UTP cabling approved for indoor
use.
For outdoor applications, shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded through the AC ground of the
power supply.
We recommend that you protect your networks from harmful outdoor environments
and destructive ESD events with industrial-grade, shielded Ethernet cable from
Ubiquiti. For more details, visit: ui.com/toughcable
Note: Although the cabling can be located outdoors, the EdgeSwitch itself
should be housed inside a protective enclosure.
Hardware Overview

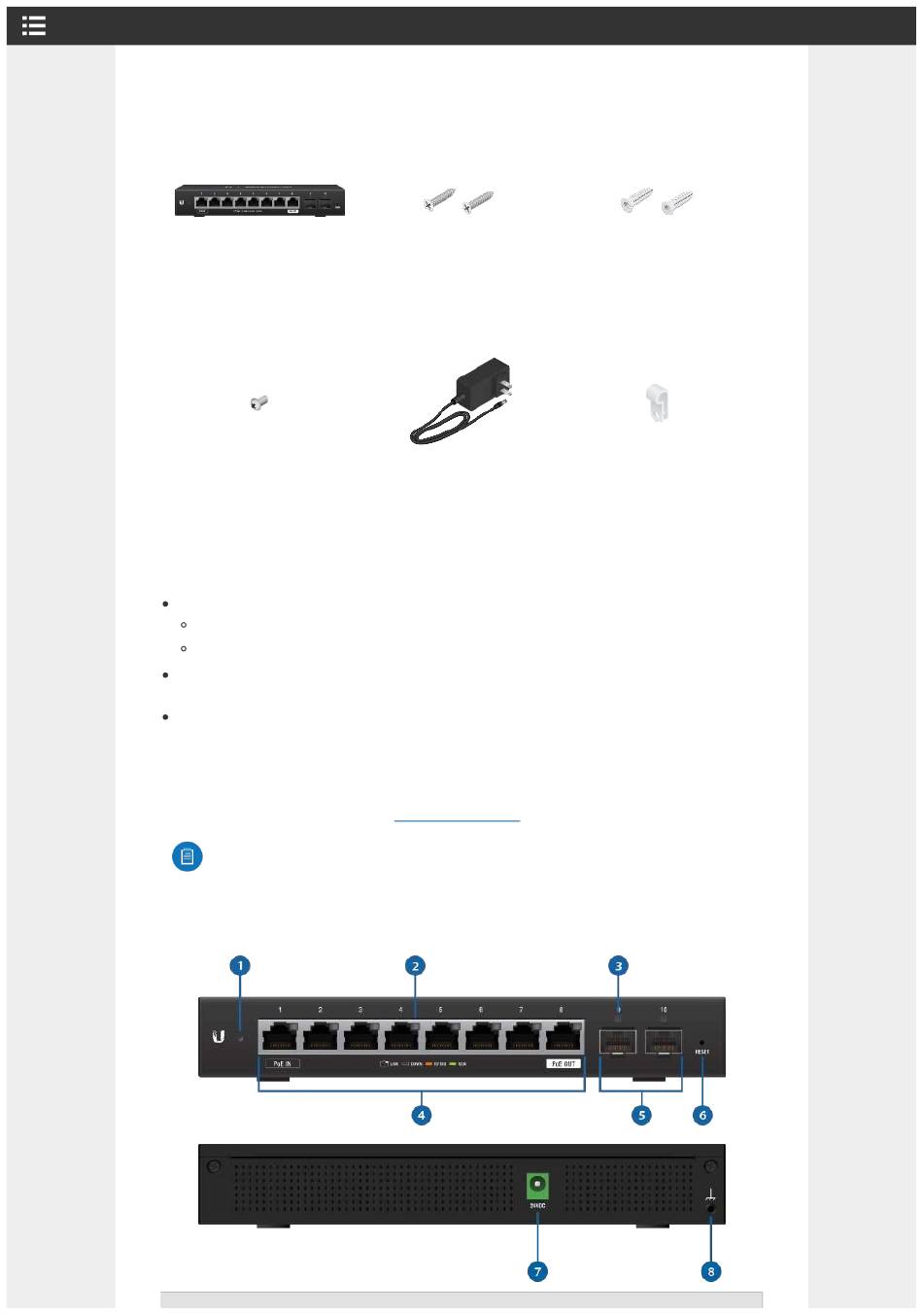

ES-10X Quick Start Guide
Wall Mount Screws (Qty. 2)
Power Adapter (24V, 1A)
Wall Mount Anchors (Qty. 2)
Cable Clip
