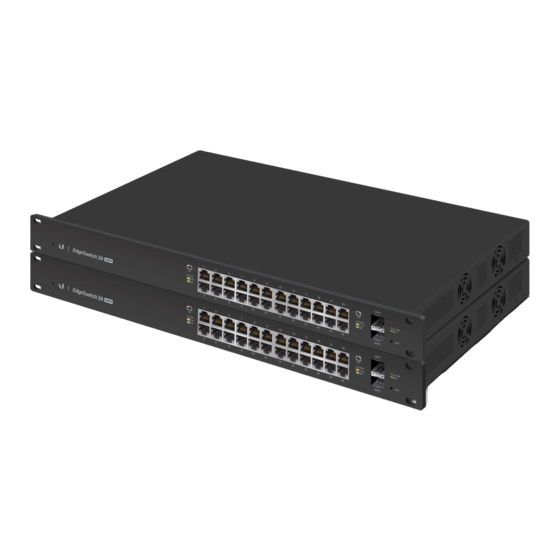

Ubiquiti EdgeSwitch ES-24-250W Quick Start Manual

Ubiquiti EdgeSwitch ES-24-250W Quick Start Manual

Managed poe+ gigabit switch with sfp
Hide thumbs Also See for EdgeSwitch ES-24-250W:

Advertisement

Managed PoE+ Gigabit Switch
with SFP
Models: ES-24-250W, ES-24-500W

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EdgeSwitch ES-24-250W and is the answer not in the manual?

Questions and answers

Summary of Contents for Ubiquiti EdgeSwitch ES-24-250W

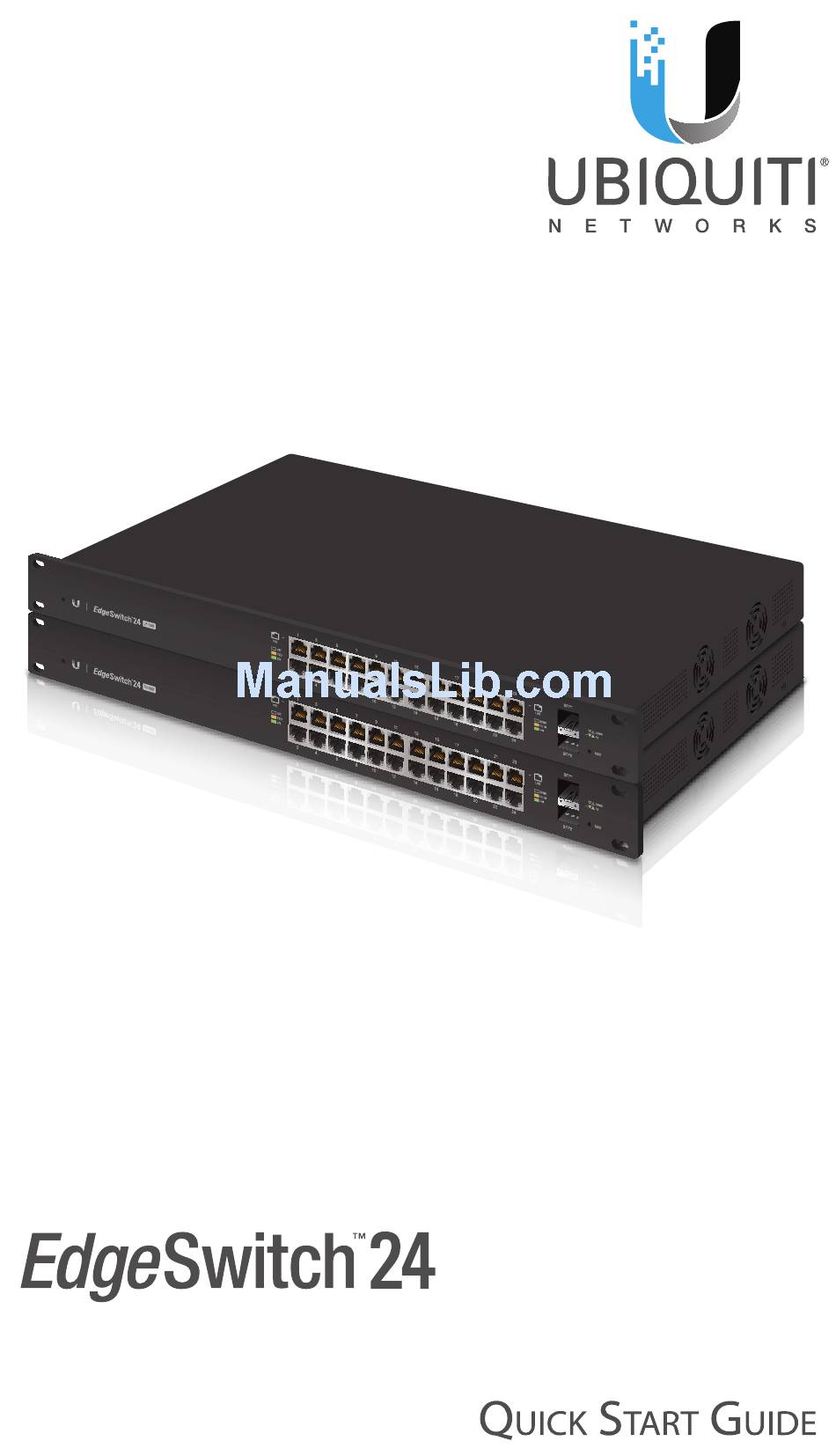

  • Page 1 Managed PoE+ Gigabit Switch with SFP Models: ES-24-250W, ES-24-500W...
  • Page 2: Package Contents

    Introduction Thank you for purchasing the Ubiquiti Networks® EdgeSwitch ™ This Quick Start Guide is designed to guide you through the installation and show you how to access the Configuration Interface. This Quick Start Guide also includes the warranty terms, and is for use with the EdgeSwitch, model ES‑24‑250W or ES‑24‑500W.
  • Page 3: Installation Requirements

    We recommend that you protect your outdoor networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable, TOUGHCable , from Ubiquiti Networks. For more details, ™ visit: www.ubnt.com/toughcable Note: Although the cabling can be located outdoors, the EdgeSwitch itself should be housed inside a protective enclosure.
  • Page 4 SFP: Speed/Link/Act State Status White Ready for Use Bootup in Progress Blue Flashing Indicates Reset to Factory Defaults No PoE Amber IEEE 802.3af/802.3at Green 24V Passive No Link Link Established at Speed/ 10/100 Mbps Amber Link/ Flashing Indicates Activity Link Established at 1000 Mbps Green Flashing Indicates Activity...
  • Page 5: Front Panel Button

    Front Panel Button Reset Button Description There are two methods to reset the EdgeSwitch to factory defaults: Runtime Reset (Recommended) The EdgeSwitch should be running after bootup is complete, and the System LED is white. Press and hold the Reset button. The EdgeSwitch will reboot, and the System LED becomes blue after three seconds.
  • Page 6: Front Panel Ports

    Front Panel Ports SFP 1-2 RJ45 1-24 Interface Description RJ45 ports support Power over Ethernet RJ45 1‑24 (PoE) and 10/100/1000 Ethernet connections. Hot‑swappable SFP ports support 1 Gbps SFP 1‑2 connections. Back Panel Mounting Holes Mounting Holes Power Side Panels Fans Ventilation Holes *640-00102-04*...
  • Page 7: Hardware Installation

    Hardware Installation 1. Connect the Power Cord to the Power port of the EdgeSwitch. 2. Attach the EdgeSwitch to the rack using the four Mounting Screws. (If the rack has square slots, then use the Cage Nuts with the Mounting Screws.) Note: Keep 20 mm of clearance next to the ventilation holes for adequate airflow.
  • Page 8: Connecting Ethernet

    3. Connect the other end of the Power Cord to a power outlet. Connecting Ethernet 1. Connect an Ethernet cable from your computer or host system to any port of the EdgeSwitch. 2. Connect Ethernet cables from the Ethernet ports of your devices to the numbered ports of the EdgeSwitch.
  • Page 9 Using SFP Ports To use an SFP port: 1. Remove the protective plug covering the SFP port. 2. Plug a compatible fiber module into the SFP port. 3. Connect the fiber optic cable to the fiber module. Then connect the other end of the cable to another fiber device. For information about compatible fiber SFP modules, visit: community.ubnt.com/edgemax...
  • Page 10: Accessing The Configuration Interface

    Press enter (PC) or return (Mac). 2. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License Agreement to accept it.
  • Page 11 Press enter (PC) or return (Mac). 4. The login screen will appear. Enter ubnt in the Username and Password fields. Read the Ubiquiti License Agreement, and check the box next to I agree to the terms of this License...
  • Page 12 5. The EdgeSwitch Configuration Interface will appear. Go to System > Connectivity > IPv4. 6. Change the IP Address to a unique IP address or select DHCP on the IPv4 tab. Click Submit. Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address.
  • Page 13: Configuring Poe Settings

    Configuring PoE Settings The PoE settings for ports 1-24 are set to PoE+ auto by default, so 802.3af/at devices can be plugged in and automatically receive PoE. WARNING: Before activating 24V passive PoE, ensure that the connected device supports PoE and the supplied voltage.
  • Page 14: Specifications

    Specifications EdgeSwitch Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24") Weight ES‑24‑250W 4.7 kg (10.4 lb) ES‑24‑500W 4.8 kg (10.6 lb) Total Non‑Blocking Line Rate 26 Gbps Max. Power Consumption ES‑24‑250W 250W ES‑24‑500W 500W Power Method 100‑240VAC/50‑60 Hz, Universal Input Power Supply ES‑24‑250W...
  • Page 15: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.
  • Page 16: Limited Warranty

    Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. In addition, the above warranty shall apply only if: the product has been properly installed and used at all times in accordance, and in all material respects, with the applicable Product documentation;...
  • Page 17 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.
  • Page 18: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...
  • Page 19: Industry Canada

    Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
  • Page 22: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
  • Page 23: Online Resources

    NETWORKS device, è conforme ai requisiti essenziali ed alle altre [Italian] disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem.
  • Page 24 ©2014 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, EdgeMAX, EdgeOS, EdgeSwitch, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners. JL072314...
