18/10/21, 15:20

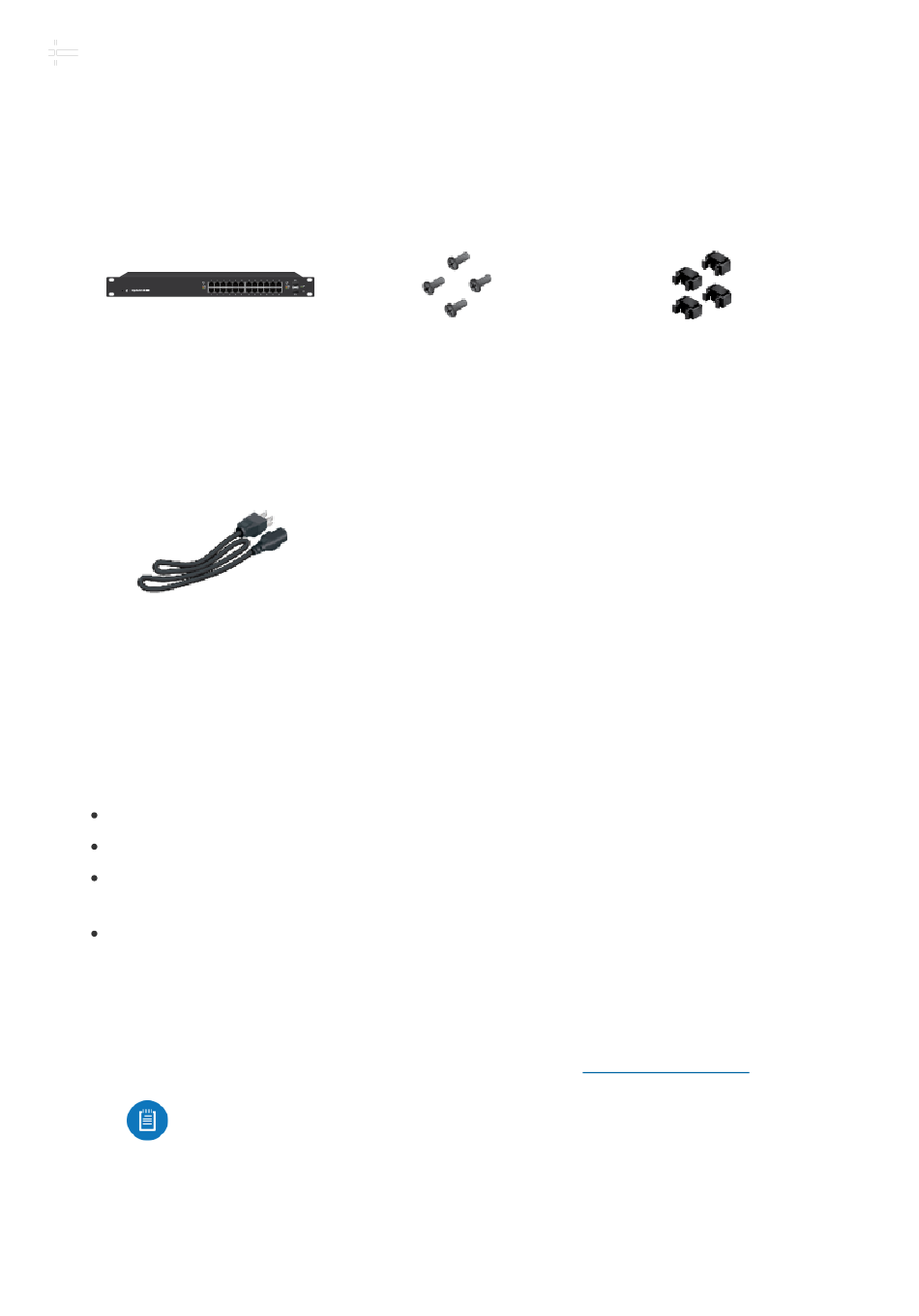

Package Contents
EdgeSwitch
Power Cord
Installation Requirements
Phillips screwdriver
Standard-sized, 19" wide rack with a minimum of 1U height available
For indoor applications, use Category 5 (or above) UTP cabling approved for
indoor use.
For outdoor applications, shielded Category 5 (or above) cabling should be
used for all wired Ethernet connections and should be grounded through the
AC ground of the power supply.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded
Ethernet cable from Ubiquiti. For more details, visit:
Note:
itself should be housed inside a protective enclosure.
Hardware Overview
https://dl.ui.com/qsg/ES-24-250W_ES-24-500W/ES-24-250W_ES-24-500W_EN.html
ES-24-250W, ES-24-500W Quick Start Guide
ES-24-250W, ES-24-500W Quick Start Guide
Mounting Screws (Qty. 4)
Although the cabling can be located outdoors, the EdgeSwitch
Cage Nuts (Qty. 4)
ui.com/toughcable
1/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-24-250W and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti ES-24-250W

Summary of Contents for Ubiquiti ES-24-250W

  • Page 1 AC ground of the power supply. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit: ui.com/toughcable Note: Although the cabling can be located outdoors, the EdgeSwitch itself should be housed inside a protective enclosure.
  • Page 2 The System LED functionality has been updated with firmware v1.8.0. We recommend that you update the EdgeSwitch to the latest firmware. Flashing White Bootup in progress. Ready for use, not connected to Ubiquiti® White Network Management System (UNMS™). See “UNMS Management”.

  • Page 3: Hardware Installation

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide No Link ES-24-250W, ES-24-500W Quick Start Guide Link Established at 10/100 Mbps Amber Flashing Indicates Activity Link Established at 1000 Mbps (1 Gbps) Green Flashing Indicates Activity SFP Speed/Link/Activity LED (Ports 1 - 2)
  • Page 4 18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide ES-24-250W, ES-24-500W Quick Start Guide https://dl.ui.com/qsg/ES-24-250W_ES-24-500W/ES-24-250W_ES-24-500W_EN.html 4/14...
  • Page 5 18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide ES-24-250W, ES-24-500W Quick Start Guide https://dl.ui.com/qsg/ES-24-250W_ES-24-500W/ES-24-250W_ES-24-500W_EN.html 5/14...

  • Page 6: Connecting Ethernet

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide Connecting Ethernet ES-24-250W, ES-24-500W Quick Start Guide Note: The PoE settings for ports 1-24 are set to PoE+ auto by default, so 802.3af/at devices can be plugged in and automatically receive PoE. For instructions on how to enable 24V passive PoE, refer to “Configuring PoE...

  • Page 7: Accessing The Configuration Interface

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide ES-24-250W, ES-24-500W Quick Start Guide For information about compatible fiber SFP modules, visit: ubnt.link/SFP_DAC_Compatibility Accessing the Configuration Interface The EdgeSwitch is set to DHCP by default, so it will try to automatically obtain an IP address.
  • Page 8 18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide Set up the DHCP server to provide a specific IP address to the EdgeSwitch ES-24-250W, ES-24-500W Quick Start Guide based on its MAC address (on the label). Let the EdgeSwitch obtain an IP address and then check the DHCP server to see which IP address was assigned.
  • Page 9 18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide 2. Configure the Ethernet adapter on your host system with a static IP address on ES-24-250W, ES-24-500W Quick Start Guide the 192.168.1.x subnet. 3. Launch your web browser. Type the appropriate IP address in the address field (192.168.1.2 is the default fallback IP address).

  • Page 10: Configuring Poe Settings

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide ES-24-250W, ES-24-500W Quick Start Guide Note: If you change the IP settings, then the session will be cut off, and you will need to reconnect to the EdgeSwitch using the new IP address.

  • Page 11: Specifications

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide ES-24-250W, ES-24-500W Quick Start Guide 3. Select the appropriate mode: Off, 24V, or PoE+. For more information, refer to the EdgeSwitch documentation, which is available ui.com/download/edgemax Specifications ES-24-250W/ES-24-500W Dimensions 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")

  • Page 12: Safety Notices

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide ES-24-250W/ES-24-500W ES-24-250W, ES-24-500W Quick Start Guide ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV Shock and Vibration ETSI300-019-1.4 Standard Operating Temperature -5 to 40° C (23 to 104° F) Operating Humidity...

  • Page 13: Limited Warranty

    18/10/21, 15:20 ES-24-250W, ES-24-500W Quick Start Guide a. Do not substitute the power cord with one that is not the provided approved type. ES-24-250W, ES-24-500W Quick Start Guide Never use an adapter plug to connect to a 2-wire outlet as this will defeat the continuity of the grounding wire.

  • Page 14: Weee Compliance Statement

    CE marking on this product represents the product is in compliance with all directives that ES-24-250W, ES-24-500W Quick Start Guide are applicable to it. WEEE Compliance Statement Declaration of Conformity Online Resources © 2021 Ubiquiti Inc. All rights reserved. https://dl.ui.com/qsg/ES-24-250W_ES-24-500W/ES-24-250W_ES-24-500W_EN.html 14/14...
