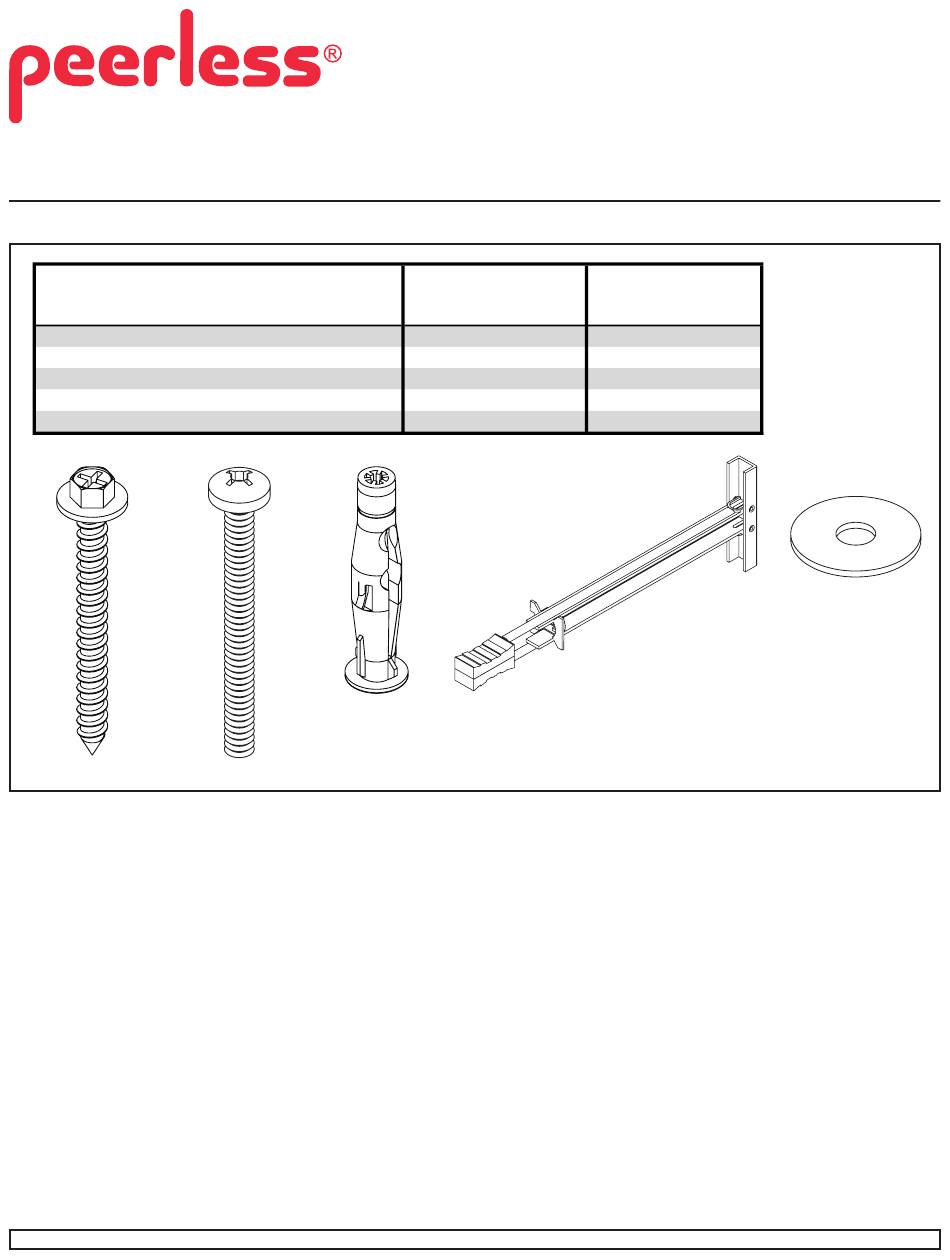

Installation and Assembly:
Mounting Hardware for IWB600-SB, and IWB600-UNIV
Model: ACC605, ACC610

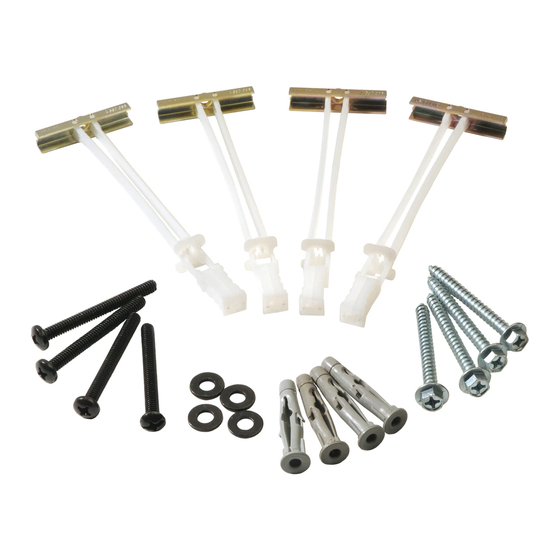

Parts List
Description
A #14 x 2.5" hex head wood screw
B 1/4 - 20 x 2.5" phillips screw
C concrete anchor
D 1/4 -20 toggler
E 1/4" flat washer
A
B
Installation To Wood Stud Wall..............................................................Page 2
Installation To Concrete Or Cinder Block Wall.....................................Page 3
Installation To Metal Stud Wall..............................................................Page 4
NOTE: Use IWB600-SB, and IWB600-UNIV Instruction sheets to determine
mounting hardware locations
ACC610
Qty. Part Number
4
5S1-015-C04
4
520-9521
4
590-0320
4
560-9708
4
540-9440
C
1 of 4
ACC605
Qty. Part Number
6
5S1-015-C04
6
520-9521
6
590-0320
6
560-9708
6
540-9440
D
ISSUED: 11-22-10 SHEET #: 120-9095-2 12-01-10
E
Advertisement
Table of Contents
Related Manuals for PEERLESS ACC605
Summary of Contents for PEERLESS ACC605
- Page 1 Installation and Assembly: Mounting Hardware for IWB600-SB, and IWB600-UNIV Model: ACC605, ACC610 Parts List ACC610 ACC605 Description Qty. Part Number Qty. Part Number A #14 x 2.5" hex head wood screw 5S1-015-C04 5S1-015-C04 B 1/4 - 20 x 2.5" phillips screw...
- Page 2 Installation to Wood Stud Wall WARNING • Installer must verify that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. • Tighten wood screws so that wall plate is firmly attached, but do not overtighten. Overtightening can damage the screws, greatly reducing their holding power.
- Page 3 WARNING • When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" (35 mm) of actual concrete thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid part of the block, generally 1"...
- Page 4 1/4-20 x 2.5" screw (B) and 1/4" washer (E). 4 of 4 ISSUED: 11-22-10 SHEET #: 120-9095-2 12-01-10 © 2010, Peerless Industries, Inc. All rights reserved. All other brand and product names are trademarks or registered trademarks of their respective owners.
