Application Field - Enco Control Technical Description

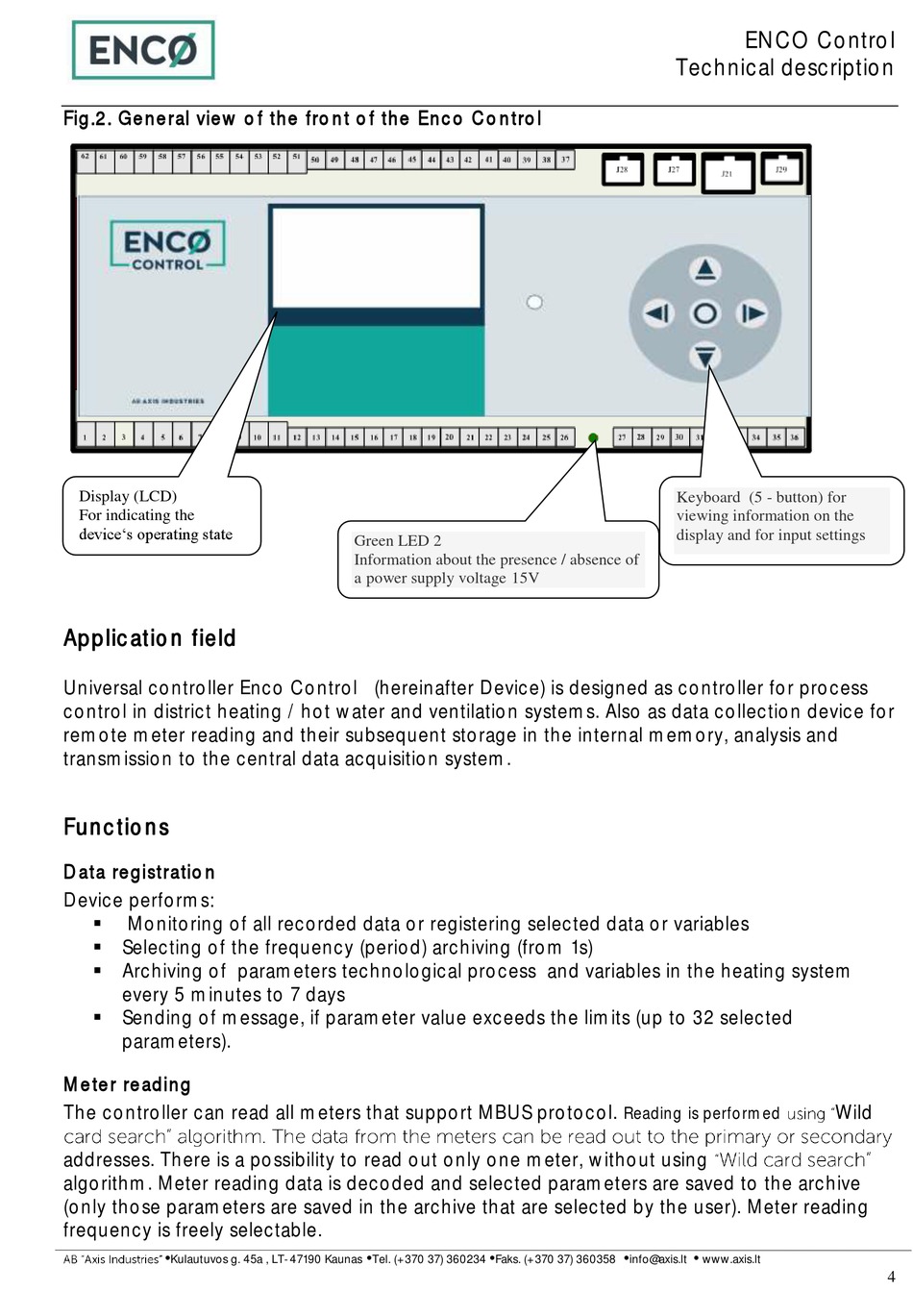

Fig.2. General view of the front of the Enco Control
Display (LCD)
For indicating the
device's operating state

Application field

Universal controller Enco Control (hereinafter Device) is designed as controller for process
control in district heating / hot water and ventilation systems. Also as data collection device for
remote meter reading and their subsequent storage in the internal memory, analysis and
transmission to the central data acquisition system.
Functions
Data registration
Device performs:
Monitoring of all recorded data or registering selected data or variables

 Selecting of the frequency (period) archiving (from 1s)
 Archiving of parameters technological process and variables in the heating system
every 5 minutes to 7 days
 Sending of message, if parameter value exceeds the limits (up to 32 selected
parameters).
Meter reading
The controller can read all meters that support MBUS protocol.
addresses. There is a possibility to read out only one meter, without using
algorithm. Meter reading data is decoded and selected parameters are saved to the archive
(only those parameters are saved in the archive that are selected by the user). Meter reading
frequency is freely selectable.
•
Kulautuvos g. 45a , LT-47190 Kaunas
Green LED 2
Information about the presence / absence of
a power supply voltage 15V
• •
Tel. (+370 37) 360234 Faks. (+370 37) 360358
ENCO Control
Technical description
Keyboard (5 - button) for
viewing information on the
display and for input settings
Reading is performed
• •
info@axis.lt www.axis.lt
Wild
4
