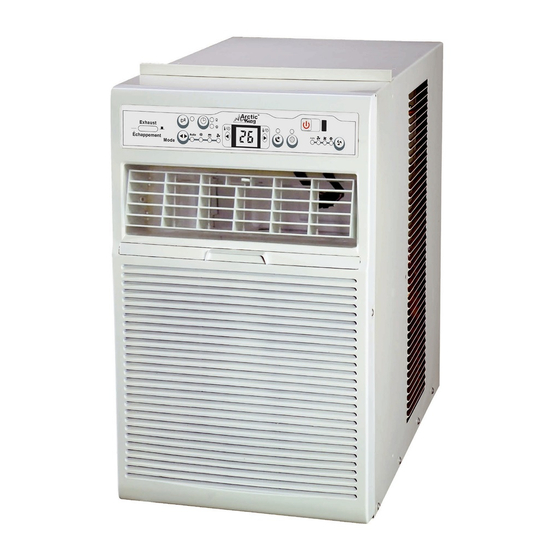

WINDOW AIR CONDITIONER
Operator's Manual
Customer Service / Service à la clientèle:
Our customer service staff is available to help you. For any problem with your purchase, or to receive further
information about this product, please call our toll-free number.
SAVE THIS MANUAL
Keep this manual and the original sales invoice in a safe, dry place for future reference.
Notre personnel du service à la clientèle est disponible pour vous aider. En cas de problème avec votre achat, ou pour
obtenir plus d'informations à propos de ce produit, veuillez composer notre numéro sans frais.
CONSERVEZ CE GUIDE
Conservez ce manuel avec la facture d'origine dans un endroit sûr et sec pour référence future.
Model/Modèle :
87795061
MWDUL-10CRN1-BCJ4
1 -866-206-0888
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Arctic King MWDUL-10CRN1-BCJ4
Summary of Contents for Arctic King MWDUL-10CRN1-BCJ4
- Page 1 Model/Modèle : 87795061 MWDUL-10CRN1-BCJ4 WINDOW AIR CONDITIONER Operator's Manual Customer Service / Service à la clientèle: 1 -866-206-0888 Our customer service staff is available to help you. For any problem with your purchase, or to receive further information about this product, please call our toll-free number.
-
Page 3: Read This Manual
2. OPERATING INSTRUCTIONS REMOTE CONTROL OPERATING INSTRUCTIONS Read this Manual You will find inside many helpful tips on how to use and maintain your air conditioner properly. Just a little preventice care on your part can save you a great deal of time problems in the Troubleshooting chart. - Page 4 must be followed. Incorrect operation due to failure to following the instructions may cause harm or damage. The severity level is classified as follows: This symbol indicates a risk of death or serious injury. This symbol indicates a risk of injury or damage to property. Plug in the power plug properly.
- Page 5 Ventilate the room properly when used together with a stove, etc.. An oxygen deficiency may occur. any other When the unit is to be purpose than air cooling. cleaned, switch it off and turn off the circuit breaker. Do not clean the unit when the This could harm the pet or plant.
-
Page 6: For Your Safety
For your Safety The power cord with this air conditioner contains a current detection device designed to reduce the risk of fire. Please refer to the section "Operating the Current Device" for details. In the event that the power cord is damaged, it cannot be repaired. -
Page 7: Normal Sounds
Operating Instructions Normal Sounds The unit may vibrate and make noise because of poor wall or window construction, or incorrect installation. Droplets of the water hitting the Gurgling or hissing noise may condenser during normal operation be heard due to refrigerant may cause pinging or switching sounds. -
Page 8: Unit Control Panel
Operating Instructions NOTE: The following instructions refer to the unit controls the same instructions can be used for the remote control. Unit Control Panel Temperature/ Time/ Remote Signal Enery Saver Mode Timer Activation Error Code Display Unit ON/OFF Receptor Mode Selector ON/OFF Button The unit will intiate automatically the ENERGY SAVER function under COOL... -
Page 9: Mode Button
Operating Instructions MODE Button To choose the operating mode, press the MODE button. At each button press, a mode is selected in a sequence that goes from AUTO, COOL DRY and FAN. The indicator light will illuminate and remain ON once the mode is selected. To operate on AUTO mode: When you set the air conditioner in AUTO mode, it will automatically select COOL, HEAT (on some models only), or FAN ONLY operation depending on the temperature you have selected and the... - Page 10 Operating Instructions Display: AUTO TIMER Error Codes: NOTE: The FAN ONLY mode will display LO or HI. Additional Features you You Should Know ● The COOL circuit has and automatic 3-minute starting time if the unit is turn OFF and ON quickly. This prevents overheating of the compressor and possible circuit breaker tripping.
-
Page 11: Installation Instructions
Installation Instructions (1575mm). Meeting Electrical Requirements This appliance must be grounded. If the cold water pipe is obstructed by plastic, NOTE: If codes permit and a separate grounding non-metallic gaskets, or other insulating material, wire is used, it is recommended that a qualified DO NOT use for grounding. - Page 12 Installation Instructions Installation Kit Contents: Use the scale below to measure the length (25 mm) (44 mm) (63 mm) Identify screws 1 in 1 3/4 in 2 1/2 in by length 3/8 in 3/4 in (10 mm) (19 mm) above the height slightly vary jambs (refer to "Alternate Window...
- Page 13 Installation Instructions Choose the proper window location. Choose a window that allows the cooled air to flow freely and directly into room(s) you wish to cool. Remember that it is difficult to move air around corners. Also choose a window that is within 6 feet of an electrical outlet (refer to "Meeting Electrical Requirements/Receptacle Wiring Needs"...
- Page 14 Installation Instructions Peel off protective backing Securely attach a siding-protection board Place the platform assembly, 3~4° in the "Preparing for Installation" section). Adjust the platform assembly it is tilted 3~4° to the outside, on the right. Put the platform tab against the inside of the track.
- Page 15 Installation Instructions 10.Clamp the plastic window panel between a board and a work table, and cut along the cutting line with a fine-toothed saw.Remove any burrs with a file. Fastening side 11.Fasten side channels to the sides of the air channels conditioner using three screws (ltem 17) per channel.
-
Page 16: Alternate Window Jamb Applications
Installation Instructions 16.Slide the inner window sash firmly against the side Slide the inner window sash firmly against the cabinet. 17.Hook the safety bracket over Install the safety bracket. 18.Push the foam seal strip/sash seal on the right 19.Use the window locking bracket Drill a 1/8-inch pilot hole. - Page 17 Installation Instructions Installing the Unit in a Casement Window two-glass Platform assembly 1.Attach the support brace to the platform as shown on the right. Use the adjustment bolt and hex flange nut to complete the assembly. Choose the slot and adjustment bolt hole locations that will create a 45-degree andle 1/4-in.
- Page 18 Installation Instructions 5.Adjust the platform assembly is 3/16 in. About 1 to 1-1/4 in. Adjust the platform assembly so that the air conditioner is 1-1/8 in. to 1-1/2 in. lower than the front (tilted about 3-4 degrees downward to the outside). After proper installation, condensate should not drain from the overflow drain hole during normaluse.
- Page 19 Installation Instructions 11.Cut the side channel seal into two equal lengths. 12.To remove the front panel: Apply the weather seal to the side channels, just below the edge of the panel frame. push or pull the air direction louvers. 13.Place the air conditioner in the window opening, as shown on the right.
-
Page 20: Care And Cleaning
Care and Cleaning Air Filter Cleaning the filter thoroughly. You may vacuum the filter clean instead of washing it. to clean Cabinet Cleaning hazards moistened with Winter Storage store it in its original box. the air conditioner in an upright position and in a dry place. -
Page 21: Troubleshooting
Troubleshooting Before calling for service, review this list. It may save your time and money. This list includes common issues that are not the result of detective workmanship or materials in this appliance. House fuse blown or circuit breaker tripped. Replace the fuse with a time delay type or reset circuit breaker. - Page 22 Remote Control Operating Instructions Handling the Remote Controll Location of the Remote controll. Use the remote controll within a distance of 16 feet (5 m) from the appliance, pointing it towards the receiver. The reception is confirmed by a beep. CAUTIONS The air conditioner will not operate if curtains, doors, or other materials block the signals from the remote controller to the indoor unit.
-
Page 23: Remote Controller Specifications
Remote Control Operating Instructions WARNING 1. The battery must be disposed of properly. Do not short circuit or dispose of in fire. 2. Keep batteries out of the reach of children. 3. Batteries must not be ingested. 4. Non-rechargeable batteries are not to be recharged. 5. -
Page 24: Function Buttons
Remote Control Operating Instructions NOTE: Function buttons MODE Button Press this button to select the ON/OFF Button desired operation mode from AUTO, COOL, DRY, HEAT Operation starts when this button (cooling & heating models is pressed and stops when the button is pressed again. -
Page 25: How To Use The Buttons
Remote Control Operating Instructions How to Use the Buttons AUTO Operation AUTO. In AUTO mode, the air conditioner can automatically choose between the COOL, FAN, and HEAT mode by sensing the difference between the actual room temperature and the set temperature on the remote control. AUTO cannot AUTO... -
Page 26: Sleep Operation
Remote Control Operating Instructions DRY Operation DRY. cannot Sleep Operation Press this button to active the SLEEP mode. This function is available under the most comfortable temperature for you. In this mode, the selected temperature will increase by 1 °C/ 2 °F 30 minutes after the mode is selected. -
Page 27: Timer Operation
Remote Control Operating Instructions TIMER Operation Press the TIMER button to initiate the AUTO-START and AUTO-STOP setting program of the unit. The time can be set in a range of 0~24 hours. To set the AUTO-START/AUTO-STOP Time. 1. Press the TIMER button. When TIMER ON indicator is displayed on the LED window of the air conditioner, it indicates that the AUTO-START setting program is initiated. - Page 28 Remote Control Operating Instructions Combined Timer AUTO-STOP AUTO-START going when waking up in the morning returning the air conditioner LED display. the air conditioner LED display. the air conditioner LED display. the air conditioner LED display. reverts screen. AUTO-STOP AUTO-START waking leaving the air conditioner...
- Page 29 Remote Control Operating Instructions ENERGY SAVER Operation 10-minute compressor starts.
- Page 30 Remote Control Operating Instructions The design of on the . In such case, the All functions described in these instructions apply to the available different models. If your model doesn't have a specific function, pressing the corresponding button will have no effect. If a function description between the "Remote Control Operating Instructions"...
-
Page 31: Air Conditioner Limited Warranty
Air Conditioner Limited Warranty These products have been made to quality standards and are guaranteed for domestic use against manufacturing faults for a period of 5 years from the date of purchase. One (1) year full warranty from original purchase date and limited 2nd through 5th year sealed system warranty if used for normal trade purposes.
