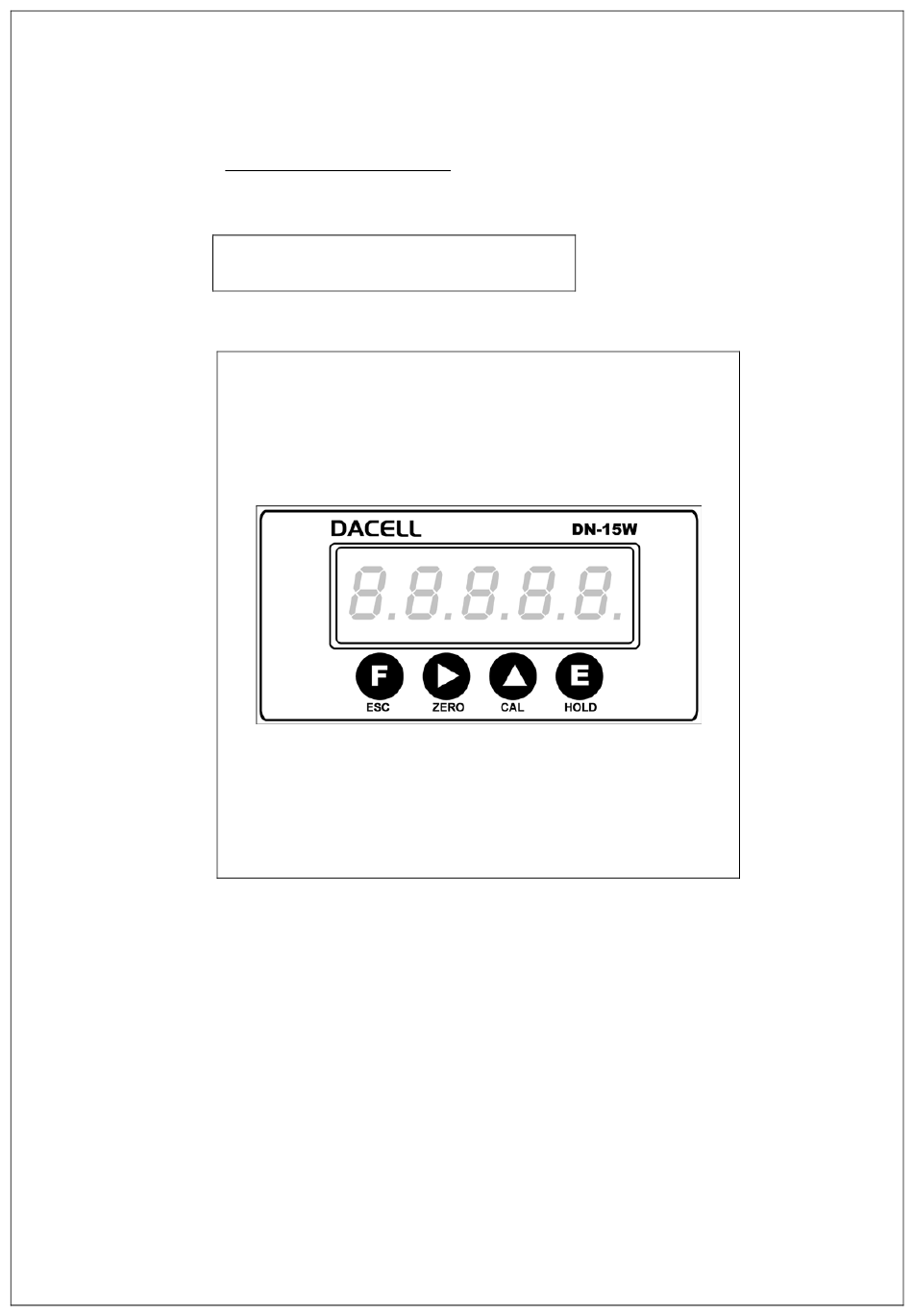

- Page 1 Ver 3.0 MODEL : DN-15W DIGITAL INDICATOR User’s Manual DACELL CO.,LTD. Address : 681-1 Cheoksan -Ri ,Nami - Myeon , Cheongwon - Gun ,Chung-Buk,Korea TEL : 82-43-260-2242 FAX : 82-43-260-2245 http://www.dacell.com E-Mail : dana@danaloadcell.com...
-
Page 2: Table Of Contents
Contents 1. Features ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2 1-1. Sigma-Delta Conversion System ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2 1-2. Calibration System ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2 1-3. Data Back-up Function ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅ 2 1 - 4 . P o w e r S u p p l y ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ ⋅ 2 1-5. -
Page 3: Features
1. Features We are grateful to you for picking up our product. If you experience problems while using it, you may refer to the user manual or contact the Technical Support Department of the company. This product is an indicator which amplifies the minute voltage signals of each sensor and converts themit into digital. -
Page 4: Cautions
2. Cautions For optimum performance and safety, please read these instructions carefully. Do not remodel this equipment at one's discretion. 2-1. Set-up Cautions • Keep it out of wet places. • Do not set it up near vibration & impulse, high temperature and humidity. Keep it out of the direct rays of the sun. -
Page 5: Specifications
3. Specifications • Available sensor ○ Micro-voltage output sensor(mV) ○ Strain gage sensor(Bridge 350Ω, 120Ω). • Maximum display Max 32767 • A/D conversion 100 time/sec • Temperature characteristics (Amp characteristics) Zero : 1µV/℃ Span : 100ppm/℃ • Front panel Measured value display : 7 segment 5 LED, Character height 14mm Key switch : 4 pieces... -
Page 6: Front Panel
4. Front Panel 4-1. Picture Description of the Display of the Front Panel ① Measured Value Indication ② Function Key / ESC Key ③ Shift Key / ZERO Key ④ Up Key / CAL Key ⑤ Enter Key / HOLD Key 4-2. -
Page 7: Back Panel
5. Back panel 5-1. Form of Back panel & Using terminal stand Make sure the terminal site and its use, and wire separately from a lot of nosing wiring. Press protruded button on the top of terminal stand, and insert it into the hole on the lower part of it to the end. -
Page 8: Wiring Diagram Schematic (Indicator & Loadcell)
◀Caution▶ 1. Turn it off when wiring (main power supply) 2. Please use thick cable for Terminal to prevent it from having impulse voltage and trouble resulting from surge. 3. Make sure the function of terminal belows and connect required contact input and output. -
Page 9: Setting Mode
6. Setting Mode 6-1. Setting Method If you push the key for about 3 seconds, will appear and then will come out. If you push the key at that time, the setting mode will change in the following direction, and if you push the key at that time, the setting mode will change in the opposite direction. -
Page 10: Setting The Number Of Buffer
Press ENT key to choose round off setting. Press Shift key to choose the required number. Press ENT key to store the number. -> -> (In case it is not good, will come out.) If you want to get out of the setting mode and return to the measurement mode, you may have to push the Function key. -
Page 11: Setting Auto Tracking Time
6-6. Setting Auto Tracking Time As setting time to operate Auto zero, it set up 0.1~5.0 second. According to 6-1, Press Function key and then Up key to be -> Press ENT key to choose time mode. Press Up key to change the required number. ……. -
Page 12: Real-Weight Calibration ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅11
7. Calibration Before calibration, You should select Dip switch to the most near thing in sensor output value and make a)Sensor Supply Voltage (ON : 5V, OFF : 10V) b)Amplification Adjustment Switch(1.0mV/V, 1.5mV/V, 2.0mV/V, 3.0mV/V) (Set with the number which gets near to maximum output value of sensor .) Press Function key about 3 seconds to return to Setup mode. - Page 13 (Currently the value is indicated.) 2) Zero and Span Setting Press Up key about 3 seconds to return to Real-weight Calibration mode. -> Leave the sensor free-load and press ENT key to set Zero. -> -> -> Press Up key to be Press ENT key, It uses Shift key and Up Key and it inputs Real-weight...
-
Page 14: Constant Value Calibration ⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅⋅13
Press ENT key , this then turn on Shunt CAL S/W in back panel Press ENT key to set Shunt CAL data. -> -> -> If you want to get out of the setting mode and return to the measurement mode, you may have to push the Function key. - Page 15 Press ENT key to store it. -> -> (In case it is not good, will come out.) Press Up key to be Press ENT key, It uses Shift key and Up Key and it inputs Sensor output value. Press ENT key to store it. ->...
-
Page 16: Setting Key Lock
8. Setting KEY LOCK This can be used as two function. If you choose key does not operate. If you choose , Setting is possible. Press Function key and Power on. Select After selecting from in , Press ENT key to store it. If you choose ->...
