Draper Ceiling Trim Kit Instructions Installation & Operation

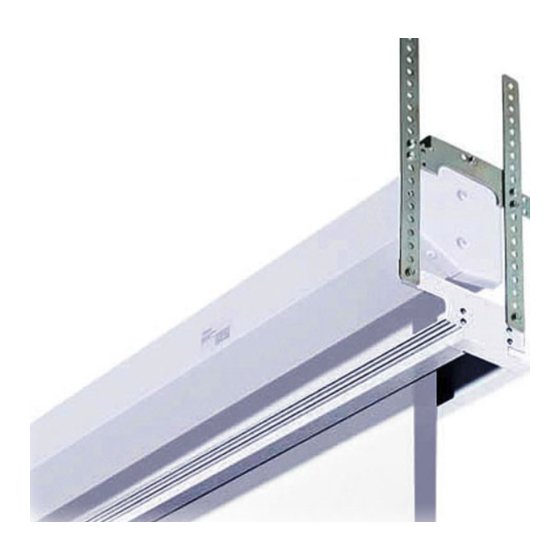

Ceiling Trim Kit
For recessing Targa and Premier projection screens
CAUTION
1. Read instructions through completely before proceeding.
2. Follow instructions carefully. Installation contrary to instructions invalidates warranty.
3. Should be installed level
(using a carpenter's level)
4. Before assembling ceiling slot trim kit, slot fascia must be cut to size
5. Mount ceiling slot trim kit to screen case before suspending case.
6. Hardware for assembling ceiling slot trim kit and attaching to screen case is provided;
installer is responsible for providing appropriate hardware for suspending or
otherwise mounting screen case.
7. Please also refer to the drawing on page 2.
The Ceiling Opening Trim Kit is for use in an
acoustical, drop ceiling only. Not recommended
for drywall or hard ceilings.
Excess metal hanger
material can be cut off
or folded over. Hangers
can also be used to
suspend screen.
F
.
.
(see drawings)
Please Note: Ceiling Trim Kit
Please Note: Case Attachment Brackets
have two attachment holes. If not using
Rigid Perforated Straps to suspend
(D)
screen, refer to specific screen instructions
for details on which hole can be used for
attaching ceiling slot kit to screen case.
"V" notched end piece fits beneath
B
G
7/ 8 "
(22mm)
suspending screen case.
NOT FOR USE on Targa XL
and Premier XL screens.
(H)
Please Note:
For the largest size trim
kit - 174"
Anti-Deflection Brackets
are also provided.
For installation details,
see page 2.
hole for electrical connection.
INSTRUCTIONS
INSTALLATION & OPERATION
D
Assemble ceiling slot
trim kit and attach to
screen case before
H
E
Slot fascia may need to be cut to
C
proper width. Measure total case
width
and cut slot fascia to match that
width. Make sure cuts are square.
Parts List
A
A Slot Fascia
B Left Fascia Bracket
- two
(4.42m)
C Right Fascia Bracket
D Rigid Perforated Strap
E 10-32 Nylon Insert Lock Nut
F Hex Head Screw #10-32 x .5"
G Cross Head Screw #6-32 x 3/4"
H Case Attachment Bracket
If you have any difficulties installing or servicing your
Ceiling Trim Kit, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2020 All Rights Reserved
(from outer edges of endcaps)
(2)
(1)
(1)
(4)
(10)
Long
(12.7mm) (16)
Long
(19mm) (8)
(2)
|
FORM: CeilingTrimKit_Inst20
