FlyCages

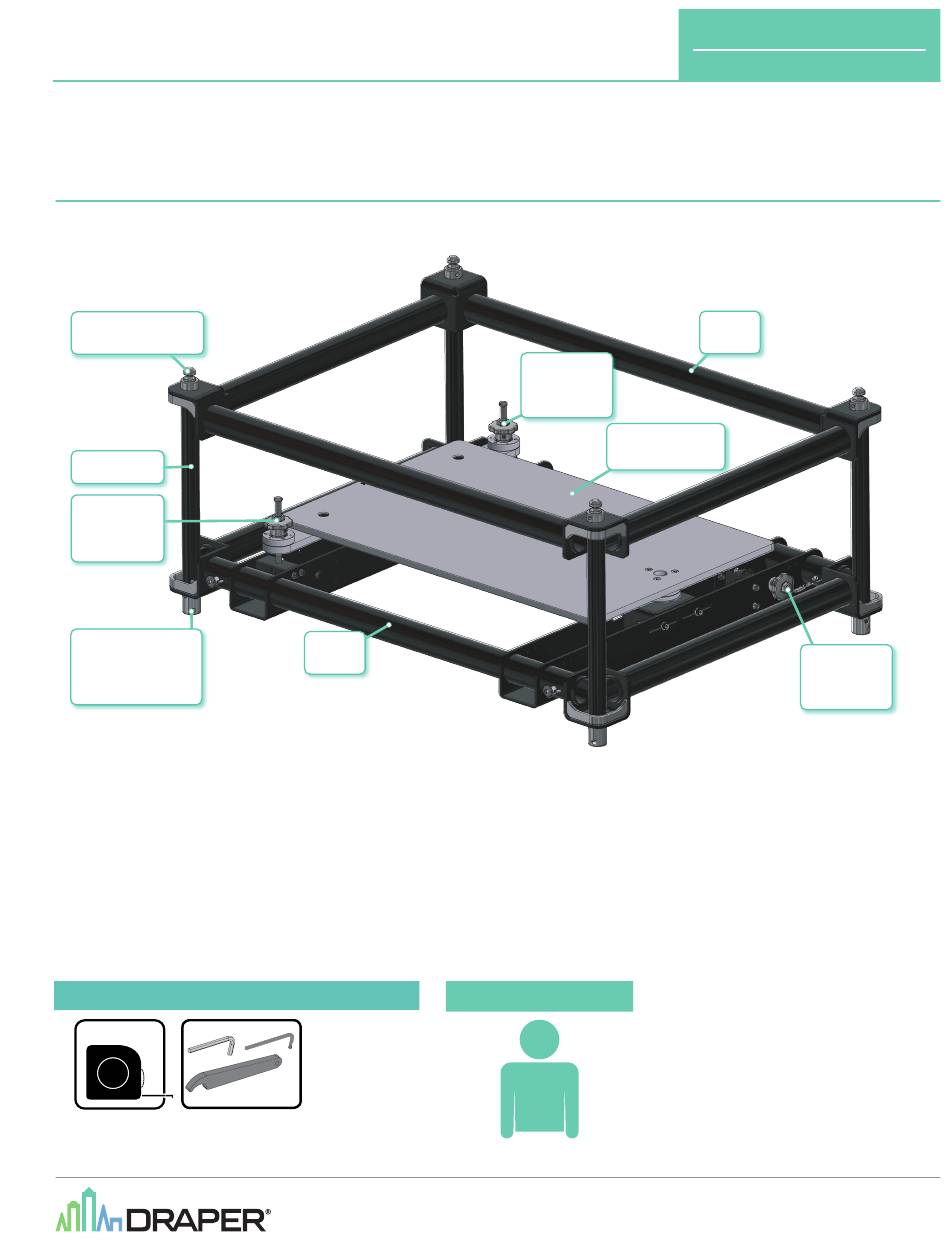

Overview - Features and Components
Alignment Pin
(for stacking multple FlyCages)
Uprights (4)
Pitch / Tilt
Adjustment
Knob
Alignment Pin
Receiver with
Locking Pin
(for stacking multiple FlyCages)
TOOLS REQUIRED
TAPE MEASURE
SPANNER WRENCH
TORX WRENCH
Lower
Frame
HEX WRENCH
INCLUDED
Pitch / Tilt
Adjustment
Knob
Configured
Projector Plate
PERSONELL REQUIRED
INSTRUCTIONS
INSTALLATION & OPERATION
Upper
Frame
Yaw
Adjustment
Knob
If you have any difficulties installing or servicing your
FlyCage, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FlyCages_Inst19
© 2019 All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Draper FlyCages
Summary of Contents for Draper FlyCages
- Page 1 TORX WRENCH If you have any difficulties installing or servicing your INCLUDED FlyCage, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: FlyCages_Inst19 © 2019 All Rights Reserved...
- Page 2 4. Do not affix the unit to wall or ceilings that have inadequate strength to permanently hold the unit during use. It is the owner's and installer's responsibility to confirm the wall or ceiling to which the unit attaches is sufficient to permanently hold the weight and stress loads of the unit at all times. Draper, Inc., is not responsible for improper installation, application, testing or workmanship related to the product at place of installation.
- Page 3 FlyCages page 3 of 4 Section 2 - FlyCage Assembly ATTACH Screw Projector Plate PROJECTOR PLATE Mounting Secure with Mounting Detail Hardware from Step 1 Projector Plate Washer REMOVE Projector Plate Mounting Hardware Bushing and set aside Lock Nut Figure 1...
- Page 4 3° of adjustment is available in either direction. Projector Figure 9 (by Others) Yaw Adjustment Knob Section 5 - Stacking Multiple FlyCages (Up to 3 if supported from below; 2 if flown overhead) Align all 4 cage uprights and secure them with the provided locking pins (four) (see Fig.
