Draper FlatScreen Lift

Now available in 3 sizes: See page 4 for details

, I

. is pleased to add to its extensive line of

raper

projector lifts and mounts its first-ever FlatScreen Lift.

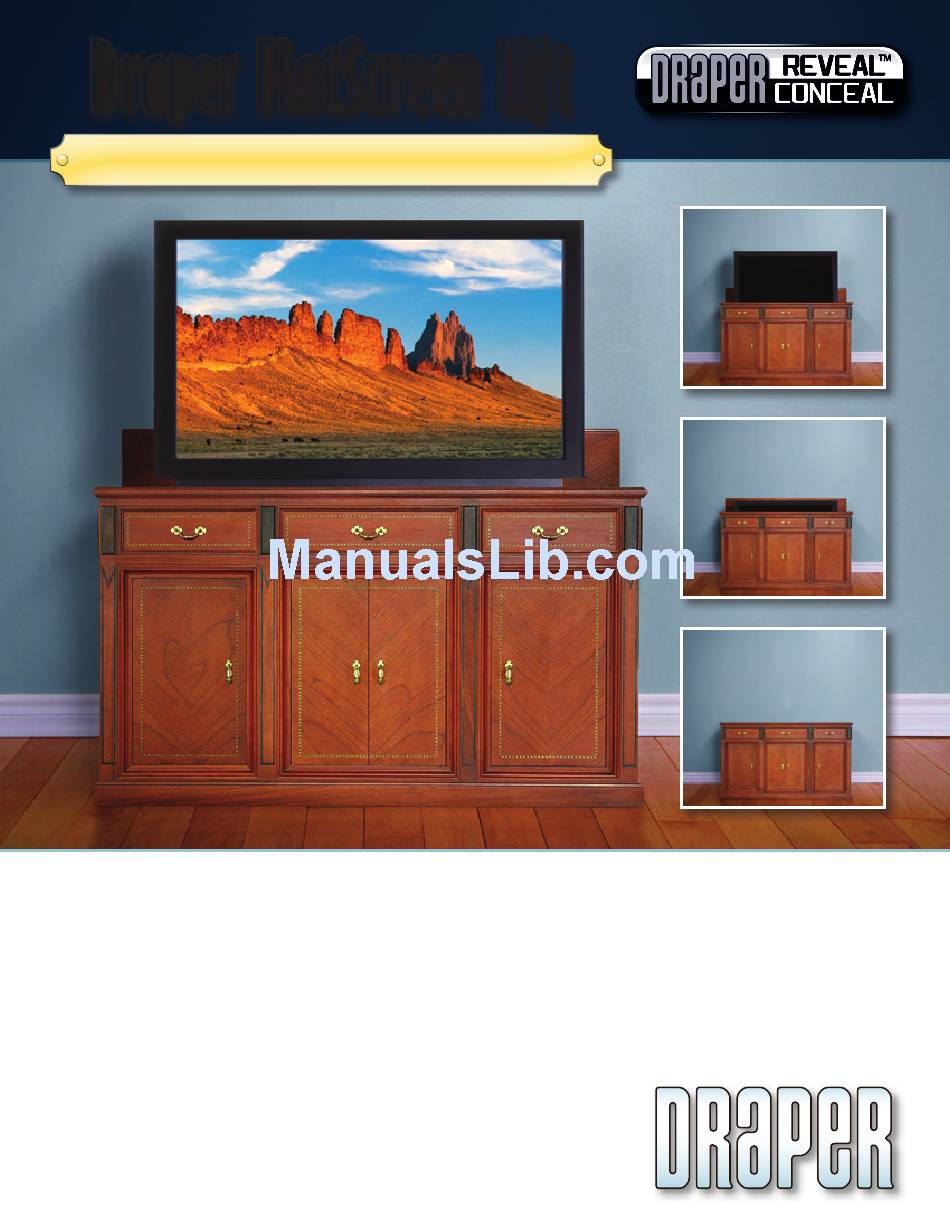

This unique product allows you to conceal a flatscreen

television or display inside your own cabinetry or

furniture, and raise it into view for "showtime."

Always aiming high, Draper's FlatScreen Lift far surpasses

the competition. Its "stored" dimensions are significantly

more compact, and yet the maximum extended height

is greater than any other model currently available. In

addition, the interior dimensions of the cabinet only

need to exceed the height of the stored lift by two

inches. The FlatScreen Lift offers more flexibility for the

installer or furniture manufacturer.

Draper's FlatScreen Lift is available in three sizes,

accommodating virtually any available model of display

up to 65" diagonal, utilizing a universal mounting option

and easy "drop-in" installation into your cabinetry or

furniture. In addition, it features a unique secondary

shelf beneath the display itself, allowing you to attach a

matching trim piece to fill the opening left by the open

cabinet lid for a clean, finished appearance when raised.

Need help?

Do you have a question about the FlatScreen Lift FSL-F-50 and is the answer not in the manual?

Page 1 This unique product allows you to conceal a flatscreen television or display inside your own cabinetry or furniture, and raise it into view for “showtime.” Always aiming high, Draper’s FlatScreen Lift far surpasses the competition. Its “stored” dimensions are significantly more compact, and yet the maximum extended height is greater than any other model currently available.
Page 2 Surpassing the Rest As you can see, Draper’s Flatscreen Lift greatly exceeds the abilities of the competition with a vertical extension of up to 148% of stored height. The nearest competitor only offers a possible extension of 84% of stored height. The FSL-F-50 does this while maintaining the most compact design, with the smallest stored height and depth.
Page 3 Flatscreen displays are a considerable investment. The long-term safety and stability of your display should therefore be taken into account when choosing a lift. Draper’s FSL-F-50 offers smooth acceleration and braking, which prevents “jarring” of the display during operation. In addition, Power Surge Line Overload Protection is built in, preventing spikes in power from damaging your precious equipment.
Page 4 “down” limits, which prevents “jarring” of display during operation. 411 S. Pearl St., Spiceland, IN 47385 USA 765-987-7999 fax 765-987-7142 © 2008 Draper, Inc. Form:FlatScreen_Brochure Printed in USA Front View (Extended) Model FSL-F-50 For display sizes up to and including 50˝ diagonal...
