Floating Mounting Bracket
For Targa, Premier, Premier C, Luma 2, and Luma 2 with AR projection screens
Components
6
9
Parts List
1. Brackets, Front Case
(Qty = 2)
2. Bracket, Right Case Attachment
3. Bracket, Left Case Attachment
4. Screws, #10-32 x 1/2"
Cross Head
(13mm)
Zinc Machine
(Qty=6)
5. Screws, #10-32 x 1"
Long Cross Head
(25mm)
Zinc
(Qty=2)
6. Brackets, Ceiling Mounting
(Qty = 2)
7. Brackets, Sliding Wall
(Qty = 2)
8. Nuts, .250-20 Nylon Inserted Hex Zinc Locking
9. Screws, .250-20 x 3/4"
(19mm)

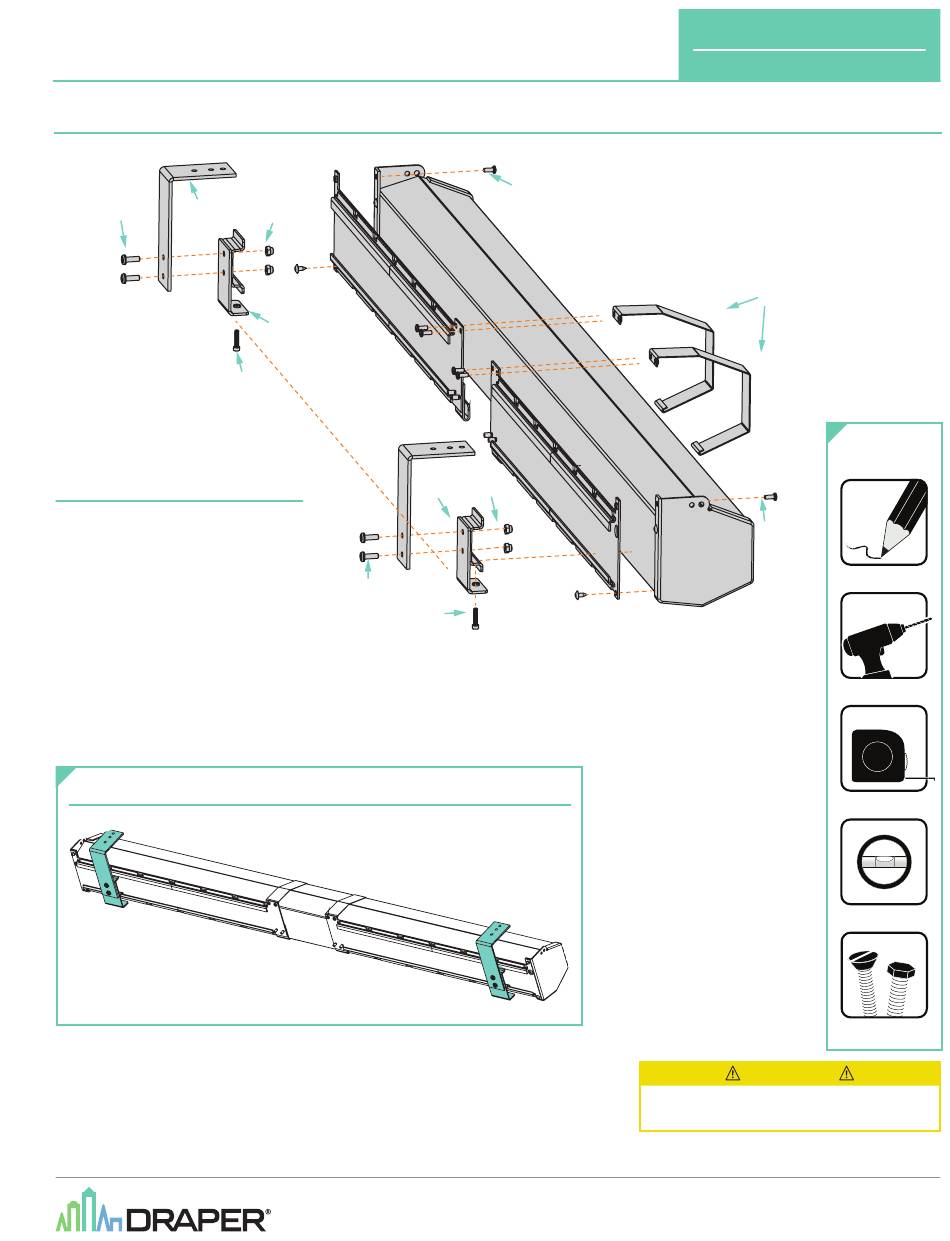

Completed Assembly Drawing
8
2
7
5
6
(Qty = 1)
(Qty = 1)
9
(Qty = 4)
Cross Head Machine
(Qty=4)
4
3
8
7
5
© 2020 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
1
4
CAUTION
Read and understand all warnings
before beginning installation.
this document)
If you have any difficulties installing or servicing your
Premier projection screen, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: FloatingMountingBracket_Inst20
TOOLS
REQUIRED
PENCIL
POWER DRILL
TAPE MEASURE
LEVEL
HARDWARE
(by others)
(Page 2 of
