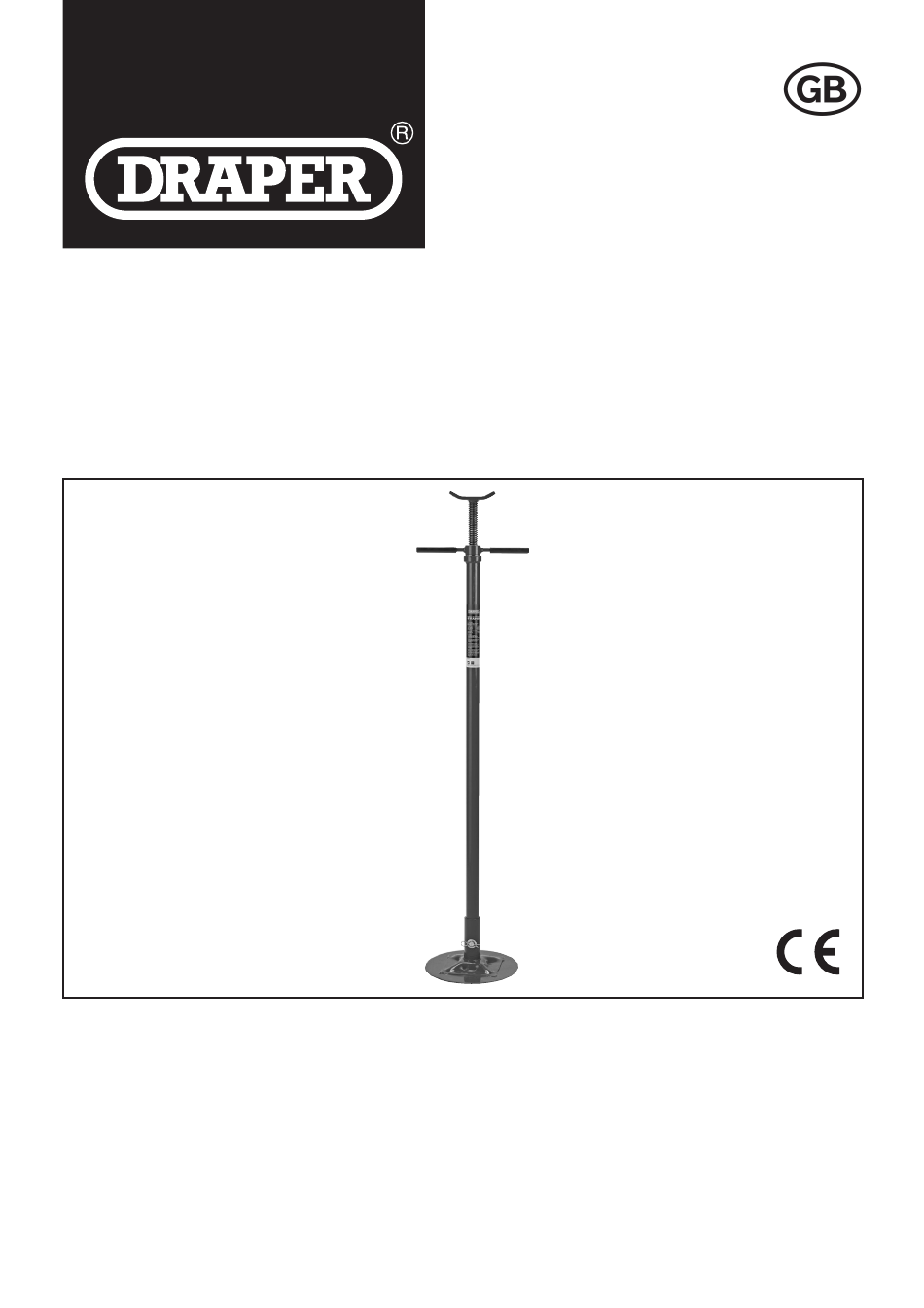

680KG SUPPORT
STAND
85629
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 85629 and is the answer not in the manual?

Questions and answers

Summary of Contents for Draper 85629

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
  • Page 2: Copyright Notice

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
  • Page 3: Table Of Contents

    CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................5 4.3 HANDLING AND STORAGE ..................
  • Page 4: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.
  • Page 5: Introduction

    & prop-shafts. Fitted with a bearing mounted spin handle for smooth & simple operation whilst raising & lowering. Acme threaded screw for self-locking positioning. Removable base. 4.2 SPECIFICATION Stock No........................... 85629 Part No........................... AS-680 Capacity............................ 680kg Minimum Height........................1360mm Maximum Height........................
  • Page 6: Health And Safety Information

    HEALTH AND SAFETY INFORMATION IMPORTANT: READ THESE INSTRUCTIONS BEFORE OPERATING 5.1 SAFETY PRECAUTIONS • This stand is solely for supporting under vehicle components and not the vehicle itself. • Do not exceed the rated capacity of this support stand. • Inspect the support stand before each use ensuring the stand is in good working order and condition.
  • Page 7: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Saddle Threaded rod Hand grip Handle Main column Base tube Base R clip Fixing rod Washer - 7 -...
  • Page 8: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.
  • Page 9: Assembling The Stand

    ASSEMBLING THE STAND Screw the base tube into the round base Thread the handle onto the threaded rod Install the bearing assembly onto the main column - 9 -...
  • Page 10 ASSEMBLING THE STAND Insert the threaded rod assembly through the bearing and into the main column until the underside of the handle rests on the bearing assembly (5A). Insert the fixing rod through a washer , through base tube , through main column then through another washer and secured with the R clip...
  • Page 11 SUPPORT STAND INSTRUCTIONS • Appropriate ‘Personal Protective Equipment’ must be used at all times. • Always consult the vehicle manufacturer for the applicable handling of the vehicles component and use of under vehicle support stands. • Once the stand has been correctly positioned under the vehicles component, hold the saddle in place while turning the handle clockwise until the saddle applies pressure against the component.
  • Page 12: Maintenance

    10. MAINTENANCE 10.1 MAINTENANCE • IMPORTANT: Maintenance of the support stand may only be performed by qualified persons. • Keep the support stand in a clean, dry place and out of children reach. • Periodically lubricate the threaded rod & bearing assembly by using a general multipurpose grease.
  • Page 13: Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Warning! Wear suitable foot protection. Warning! Wear suitable eye/face protection. Warning! Read the instruction manual. Warning! Keep bystanders away. - 13 -...
  • Page 14: Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 15 NOTES - 15 -...
  • Page 16 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
