- Page 1 WAFER GSM-DKEY REMOTE CONTROL UNIT GSM-DKEY MANUAL SHANGHAI WAFER MICROELECTRONICS CO.,LTD http://www.waferstar.com...
-
Page 2: Product Description

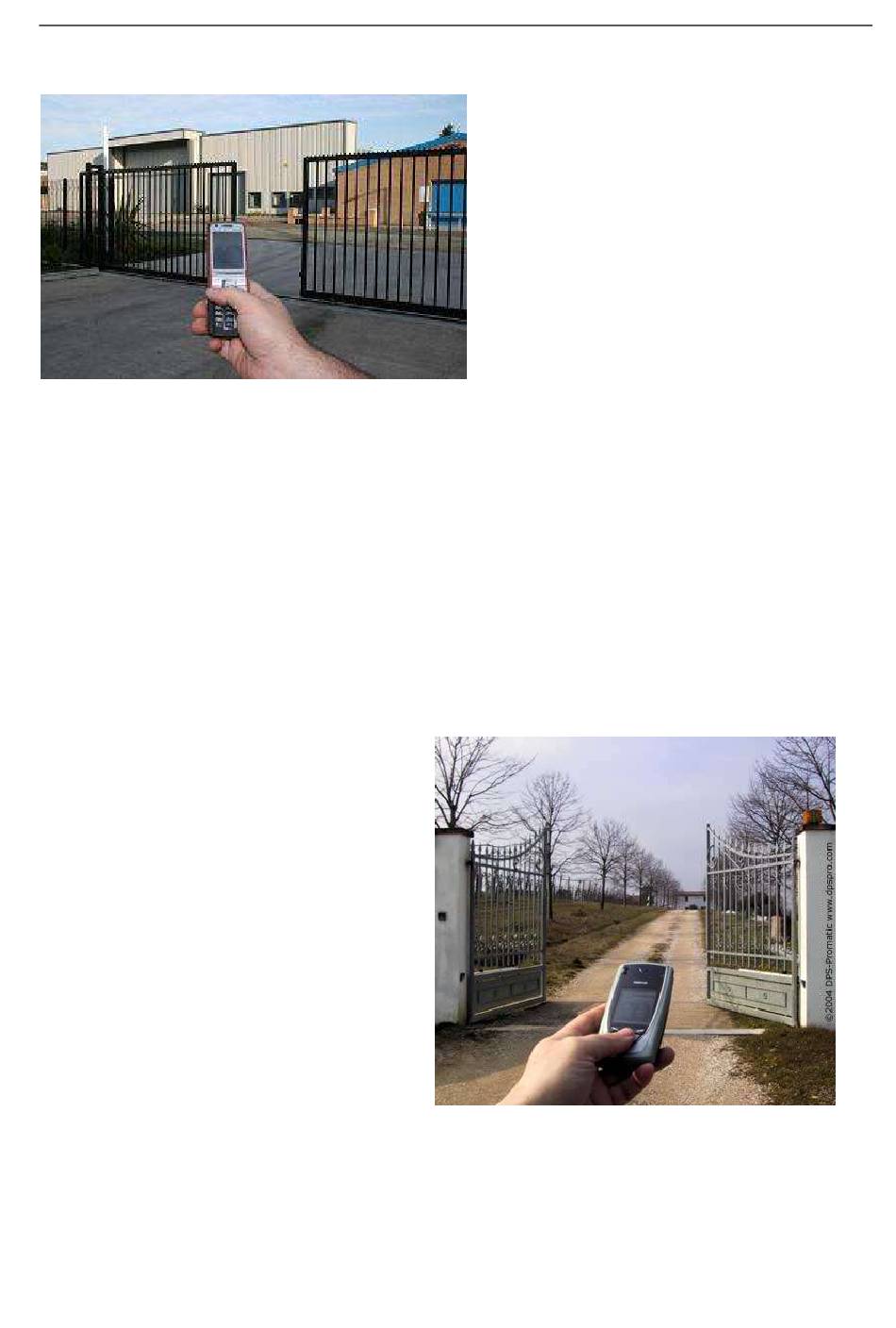

It has a White List of numbers who are enabled to control the device up to 200. When the GSM-DKEY receives a call, it will check to see if the calling number is in the list. If it is in the list it will reject the call (so there will be no charge -at least with today's charging procedures) and click the relay momentarily. -
Page 3: Installation
To install the GSM-DKEY, you need to connect the 2 wires of the relay contact in parallel with the gate opening button. The relay contacts can stand 48V 0.5A maximum, this is enough for its operation but don't try to switch higher voltages or currents. - Page 4 Alarm1 and Alarm2 input. WAFER GSM-DKEY PROGRAMMING You can program the GSM-DKEY with SMS commands using your phone. It is safe to do so because in addition to the fact that other people may not know the number of the SIM inserted in it, we also use a Password that makes it impossible for anybody who doesn't know it to access the system by chance.
- Page 5 WAFER GSM-DKEY REMOTE CONTROL UNIT GSM-DKEY SMS COMMAND LIST: #PWD Password. This command must always come first 6 digits as a password. The standard default one, when the device comes from the factory, is 123456. We suggest that you change it, using the #CAP command.
- Page 6 WAFER GSM-DKEY REMOTE CONTROL UNIT Acknowledge : WHL01 SET TO 00000000 List All numbers in the List #PWD123456#WHL=ALL? Acknowledge WHL01 IS XXX WHL03 IS XXX WHL08 IS XXX …… #SHL, #PHL, #QHL Special List. Set from what time to what time you want these numbers operate...
- Page 7 WAFER GSM-DKEY REMOTE CONTROL UNIT #ACM Safety control or free control mode setting. PC$PHONE) #PWD123456#ACM=ON #PWD123456#ACM=OFF ACM=OFF, Then any number can free control the device through the phone calling ACM=ON, Then only the authorized number can control the device through the phone calling #GOT Relay working output delay time.
- Page 8 This command is useful to see what is the GSM network signal level your GSM-DKEY is receiving. It ranges from 0 to 32 (if it is 0 we doubt it will ever answer...). You should have a signal above 12 to be sure of being able to open the gate in any condition.
- Page 9 WAFER GSM-DKEY REMOTE CONTROL UNIT #PWD123456#OUT2=ON or OFF (If has the second relay output on board) You will receive the following confirmation SMS: OUT2 ON OK or OUT2 OFF OK #RLY Toggle the Relay temporarily ON or OFF for specified timer...
-
Page 10: Troubleshooting
No tone can be heard after line off-hook · Check the telephone line connection. · GSM-DKEY is not initialized properly upon start (approx. 10s after power up). · GSM-DKEY is not supplied with power. EasyGate does not communicate with PC ·... - Page 11 WAFER GSM-DKEY REMOTE CONTROL UNIT This brochure provides an overview of the products and services of WEIFU GSM Modules, For further information and queries kindly contact: Email: coinco_cn@yahoo.com.cn Web: www.waferstar.com Tel: 0086-21-51870528 Also accessible via our online MSN service: frank_ic2001@hotmail.com Copyright 2008, WEFU GSM V2009-V2.1...
