- Page 1 WAFER GSM-KEY REMOTE CONTROL UNIT GSM-KEY-3G MANUAL New version published from 2016 SHANGHAI WAFER MICROELECTRONICS CO.,LTD http://www.waferstar.com...
-
Page 2: Product Description

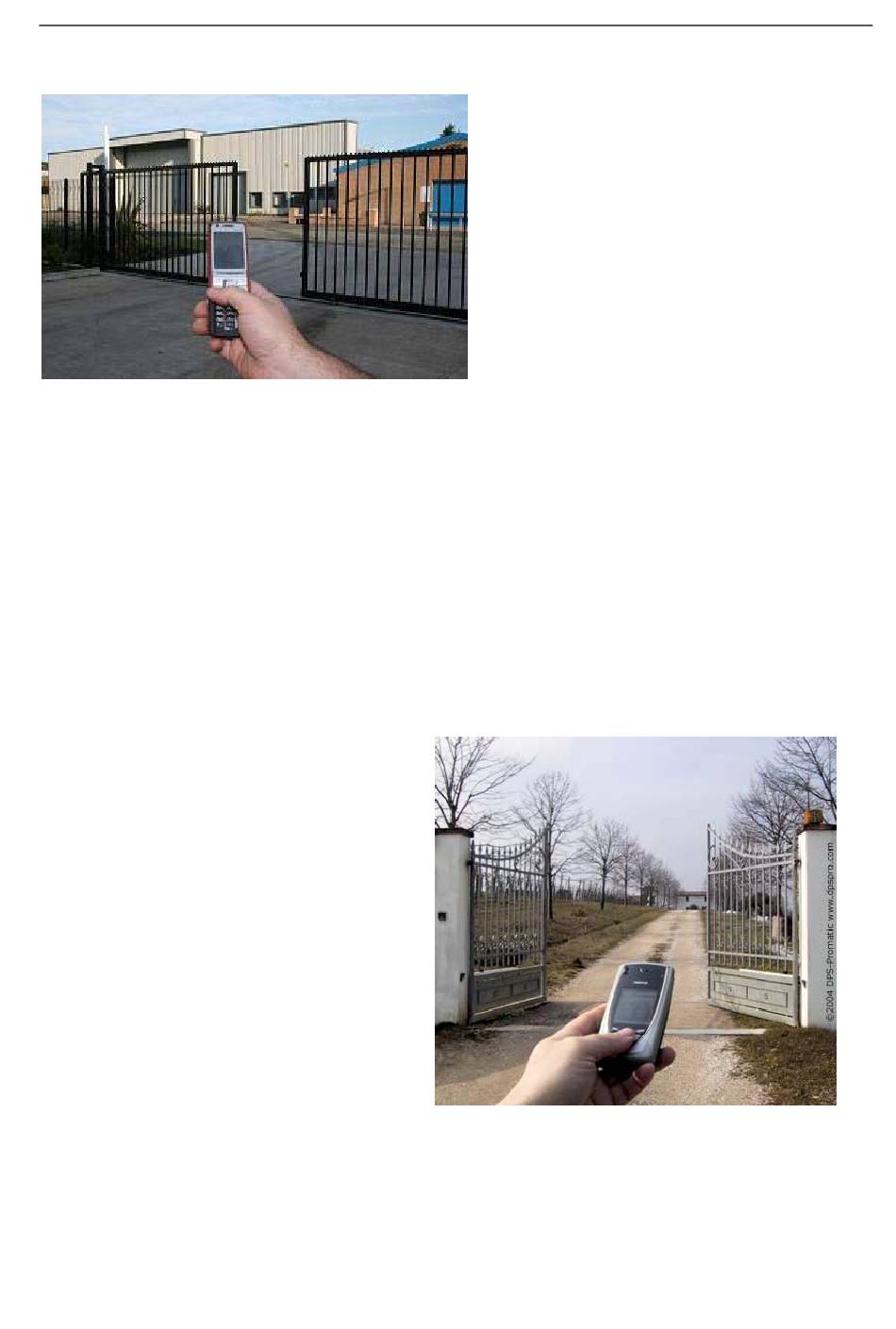

GSM-KEY OPERATING INSTRUCTIONS PRODUCT DESCRIPTION WAFER GSM-KEY is an electronic board with an on-board GSM modem.The purpose of this device is to open an electric gate by means of a GSM phone.It has a door open relay whose contact has to be connected in parallel with the button which opens the gate. It has a White List of numbers who are enabled to open the phone, up to 2000. -
Page 3: Installation
WAFER GSM-KEY REMOTE CONTROL UNIT ˇ Let visitors and deliveries in remotely. ˇ Caller ID confirmation for security. ˇ Easy programming in minutes with your phone or PC software INSTALLATION !Note! Please read this entire manual before installation Take EXTREME care with the high voltage AC220V Power line installation In case of fault pull the mains adapter out from 220V network immediately. - Page 4 WAFER GSM-KEY REMOTE CONTROL UNIT GSM-KEY also comes with additional 2 Input.The inputs can be used to generate alarms when triggered.For examples,you can can connect the saftey beam output to the GSM-KEY Alarm1 and Alarm2 input. WAFER GSM-KEY PROGRAMMING You can program the GSM-KEY with SMS commands using your phone. It is safe to do so...
- Page 5 WAFER GSM-KEY REMOTE CONTROL UNIT GSM-KEY SMS COMMAND LIST: #PWD Password. This command must always come first 6 digits as a password. The standard default one, when the device comes from the factory, is 123456. We suggest that you change it, using the #CAP command.
- Page 6 WAFER GSM-KEY REMOTE CONTROL UNIT Acknowledge : WHL01 SET TO 00000000 List All numbers in the List #PWD123456#WHL=ALL? Acknowledge WHL01 IS XXX WHL03 IS XXX WHL08 IS XXX …… #SHL, #PHL, #QHL Special List. Set from what time to what time you want these numbers operate (SHL maximum number is 250)
- Page 7 WAFER GSM-KEY REMOTE CONTROL UNIT Acknowledge : QUERY RESULT: 143535353 AT WHL004 #ACM Safety control or free control mode setting. PC$PHONE) #PWD123456#ACM=ON #PWD123456#ACM=OFF ACM=OFF, Then any number can free control the device through the phone calling ACM=ON, Then only the authorized number can control the device through the phone calling #GOT Relay working output delay time.
- Page 8 WAFER GSM-KEY REMOTE CONTROL UNIT Acknowledge : ALARM_IN1=ON:SMS:300, ALARM_IN2=ON:PHONE:10 If at phone mode: when receive the alarm input,then will phone the number in the alarm phone list until you reject the phone call or that will continue to phone the number again after the minutes setted.
- Page 9 WAFER GSM-KEY REMOTE CONTROL UNIT #OUT Control the Relay Output on or off (PC$PHONE) #PWD123456#OUT1=ON or OFF #PWD123456#OUT2=ON or OFF (If has the second relay output on board) Config the RELAY Status when power Reset again #PWD123456#POWER-RESET=11 (1 means ON ,0 means OFF when power on)
-
Page 10: Pc Software Interface
PC Software interface: Software language select Select the right language according to your county,wafer will update the language step by setp. (When Distributor need to support your local language,please contact wafer company) COM Port parameters config interface and connect to the device Before program the device through the PC,firstly you need to config the COM port paramters and then connect the device to PC software. - Page 11 WAFER GSM-KEY REMOTE CONTROL UNIT Input the ID number of your device and password. This mode is only for the GSM-RFKEY device. And each device have a special ID number. 3. GSM modem program mode (GSM modem program adapter) Check the select box of the “ use modem”...
- Page 12 WAFER GSM-KEY REMOTE CONTROL UNIT Phone Numbers Setting interface: (Before download the phone numbers,you need to SET the index to red color,then push the button”Download All Phones”) Special Phones Setting: http://www.waferstar.com...
- Page 13 WAFER GSM-KEY REMOTE CONTROL UNIT Alarm Phone Numbers Setting: Log Interface http://www.waferstar.com...
- Page 14 3. You can use the Relay Status selection box to check if that relay output can work well or not. Battery backup function is not available on the normal Wafer products. http://www.waferstar.com...
-
Page 15: Troubleshooting
· If you use the USB to RS232 adapter,should check the drive is properly installed or not What type of the USB to COM port adapter should order to work with GSM-KEY · That would be better to order WAFER USB adapter · Order the good quality USB adapter with FT232 chip inside GSM-KEY does not communicate with PC ·... - Page 16 This brochure provides an overview of the products and services of WEIFU GSM Modules, For further information and queries kindly contact: Email: wafer@waferstar.com Web: www.waferstar.com Tel: 0086-21-51870528 Also accessible via our online Service Skype: wafer-service If you need any sample order,please check our online store: Http://www.wafer-shopping.com Copyright 2008, WEFU GSM V2016-4.0 http://www.waferstar.com...
