- Page 1 WAFER GSM-KEY-DC REMOTE CONTROL UNIT GSM-KEY-DC MANUAL DC200 VERSION 5.0 SHANGHAI WAFER MICROELECTRONICS CO.,LTD http://www.waferstar.com...
-
Page 2: Product Description

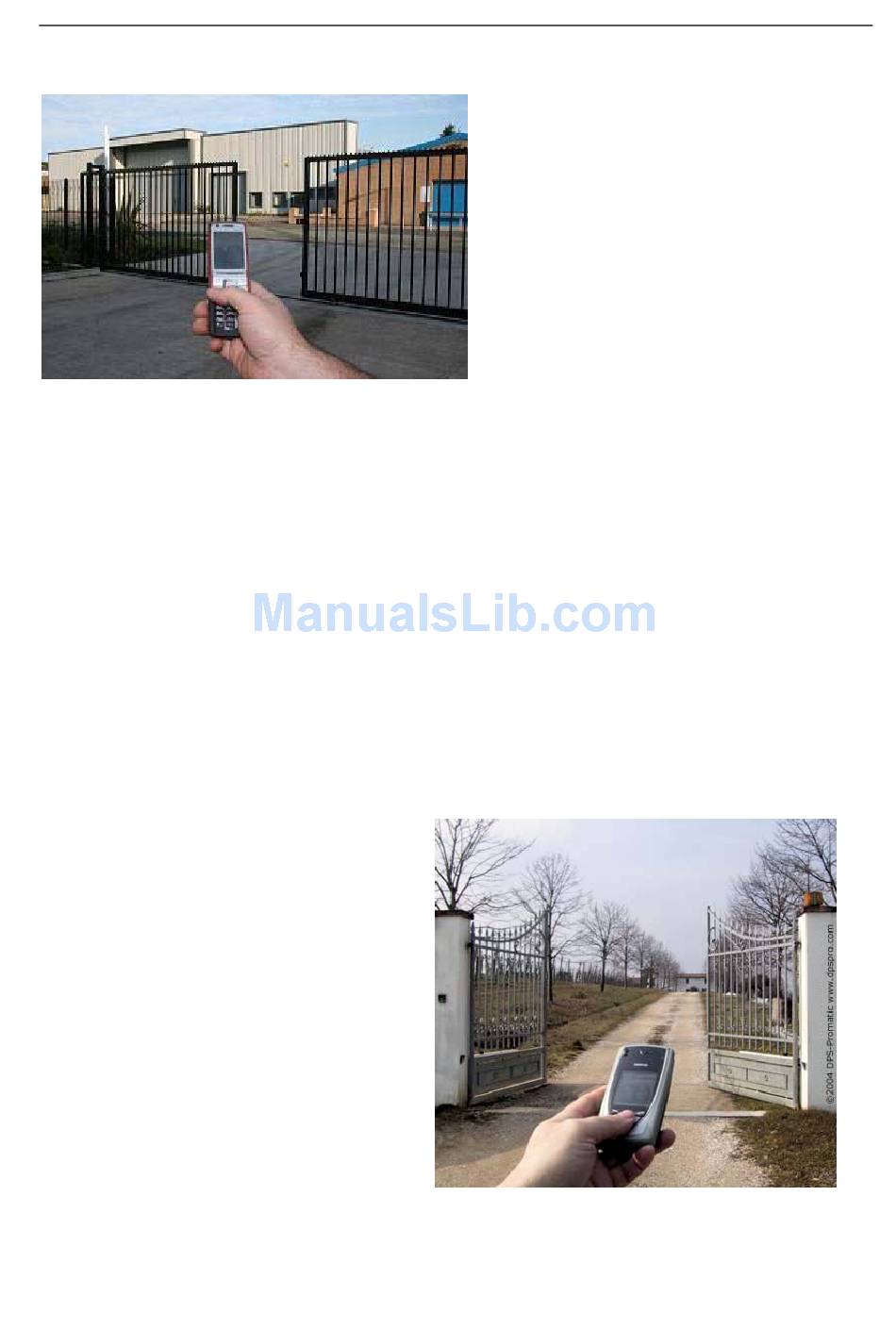

GSM-KEY OPERATING INSTRUCTIONS PRODUCT DESCRIPTION WAFER GSM-KEY is an electronic board with an on-board GSM modem.The purpose of this device is to open an electric gate by means of a GSM phone.It has a door open relay whose contact has to be connected in parallel with the button which opens the gate. It has a White List of numbers who are enabled to open the phone, up to 200. -
Page 3: Installation
WAFER GSM-KEY-DC REMOTE CONTROL UNIT INSTALLATION To install the GSM-KEY, you need to connect the 2 wires of the relay contact in parallel with the gate opening button. The relay contacts can stand 48V 0.5A maximum, this is enough for its operation but don't try to switch higher voltages or currents. - Page 4 WAFER GSM-KEY-DC REMOTE CONTROL UNIT GSM-KEY PC Program Software interface 1. Setting and Log page switch 2. Open saved file 3. Save units phone numbers in your computer for future changes 4. Save in a new file name 5. Communitcaton selection ,Com port configuration 6.
- Page 5 WAFER GSM-KEY-DC REMOTE CONTROL UNIT GSM-KEY SMS COMMAND LIST: #PWD Password. This command must always come first 6 digits as a password. The standard default one, when the device comes from the factory, is 123456. We suggest that you change it, using the #CAP command.
- Page 6 WAFER GSM-KEY-DC REMOTE CONTROL UNIT List All numbers in the List #PWD123456#WHL=ALL? (Instruction Only for Acknowledge WHL001 IS XXX WHL003 IS XXX WHL008 IS XXX …… #SHL, #PHL, #QHL Special List. Set from what time to what time you want these numbers operate...
- Page 7 WAFER GSM-KEY-DC REMOTE CONTROL UNIT Then you need to setup the GOT timer number: This command is useful in case you need to keep the button pressed longer. The standard time is 0,3 seconds (300 ms). You can change it with the GOT command.
-
Page 8: Pc Software Interface
Your will receive the Acknowledge as : OUT1 OFF okay PC Software interface: Software language select Select the right language according to your county,wafer will update the language step by setp. (When Distributor need to support your local language,please contact wafer company) http://www.waferstar.com... - Page 9 WAFER GSM-KEY-DC REMOTE CONTROL UNIT COM Port parameters config interface and connect to the device Before program the device through the PC,firstly you need to config the COM port paramters and then connect the device to PC software. Password is the PWD password, if no change,the initial password is “ 123456 ”...
- Page 10 WAFER GSM-KEY-DC REMOTE CONTROL UNIT RS232 and USB program adapter Wireless program adapter GSM Modem program adapter Phone Numbers Setting interface: (Before download the phone numbers,you need to SET the index to red color,then push the button”Download All Phones”) http://www.waferstar.com...
- Page 11 WAFER GSM-KEY-DC REMOTE CONTROL UNIT Special Phones Setting: Alarm Phone Numbers Setting: http://www.waferstar.com...
- Page 12 WAFER GSM-KEY-DC REMOTE CONTROL UNIT Log Interface http://www.waferstar.com...
- Page 13 3. You can use the Relay Status selection box to check if that relay output can work well or not. 4. Battery backup function is not available on the normal Wafer products. http://www.waferstar.com...
-
Page 14: Troubleshooting
· If you use the USB to RS232 adapter,should check the drive is properly installed or not What type of the USB to COM port adapter should order to work with GSM-KEY · That would be better to order WAFER USB adapter · Order the good quality USB adapter with FT232 chip inside GSM-KEY does not communicate with PC ·... - Page 15 This brochure provides an overview of the products and services of WEIFU GSM Modules, For further information and queries kindly contact: Email: wafer@waferstar.com Web: www.waferstar.com Tel: 0086-21-51870528 Also accessible via our online Service Skype: wafer-service If you need any sample order,please check our online store: Http://www.wafer-shopping.com Copyright 2008, WEFU GSM V201312-V5.0 http://www.waferstar.com...
