NOTE: LOCATION
Position your NWDC Series dryer in a location where material and vacuum hoses will not be
disturbed. Allow sufficient distance (at least 2 feet) from the surrounding equipment, so the
access doors may be opened to perform routine maintenance on the dryer and for safe
operation.

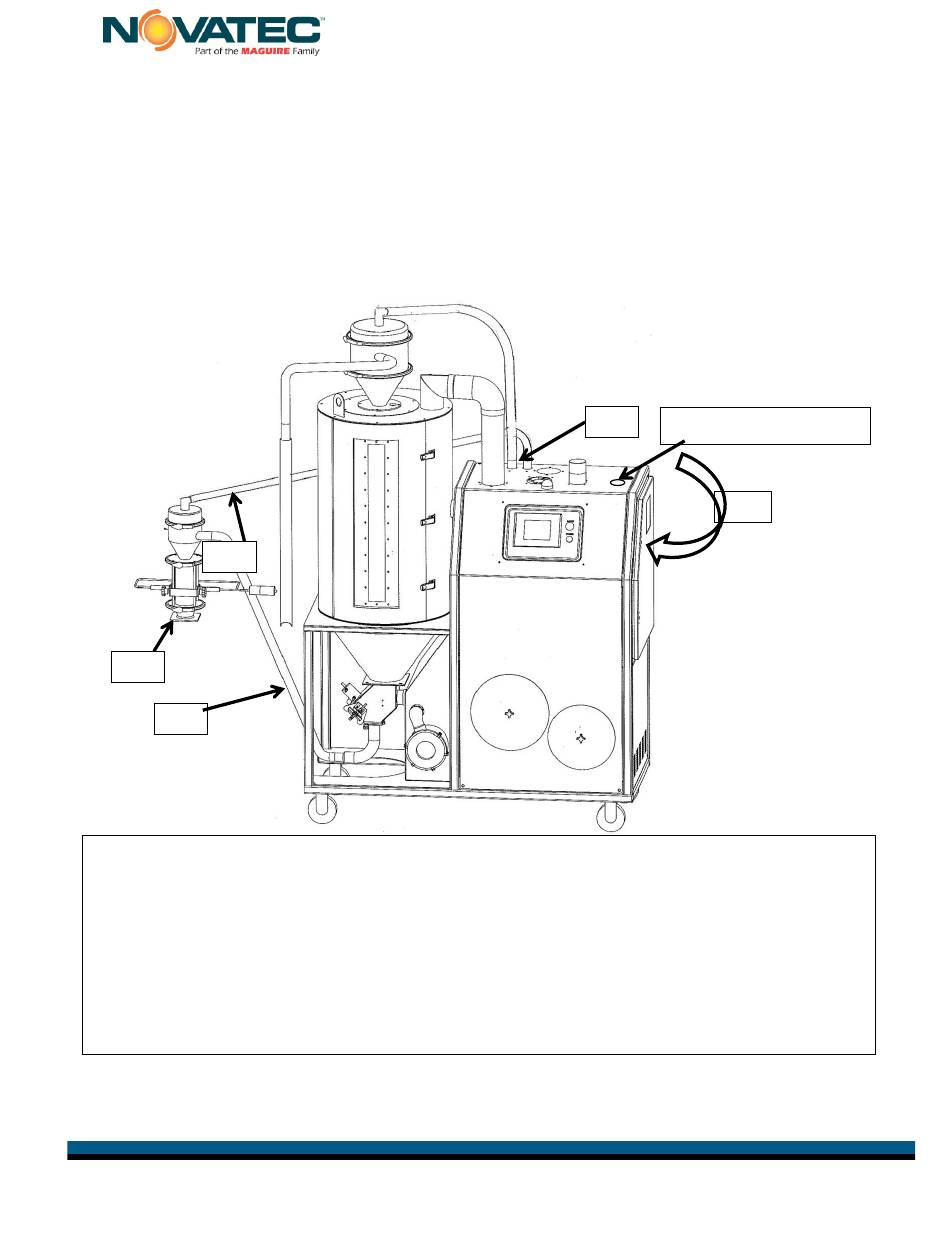

2.3 Install Machine Mount Receiver and Connect Flex Hose

3-B
3-A
3-C
3-A: Bolt the Machine Mount Receiver to the process machine throat with user-supplied bolts.
3-B:
Push one end of the flex hose all the way onto the material inlet stub on the side of the receiver and
fasten it securely with a hose clamp (supplied).
3-C: String flex hose to the vacuum purge valve tube (attached to the bottom of the hopper) cut it to
length and fasten securely with a hose clamp.
3-D: Attach one end of flex hose to the vacuum inlet stub on top of the Machine Mount receiver and
fasten it securely with a hose clamp. String the flex hose to the farthest EPV Dual Station
Vacuum Valve Stub extending from the top of the dryer. Cut flex hose to length and attach it
securely to the stub with a hose clamp.
NWDC IM 26 MAR 2014 © 2014 Novatec, Inc. All Rights Reserved
NWDC IM 26 MAR 2014
3-D
Entry point for power
4-A
