10 PROGRAMMING OTHER DRYING AND CONVEYING FUNCTIONS

10.1 Commonly Used Screens

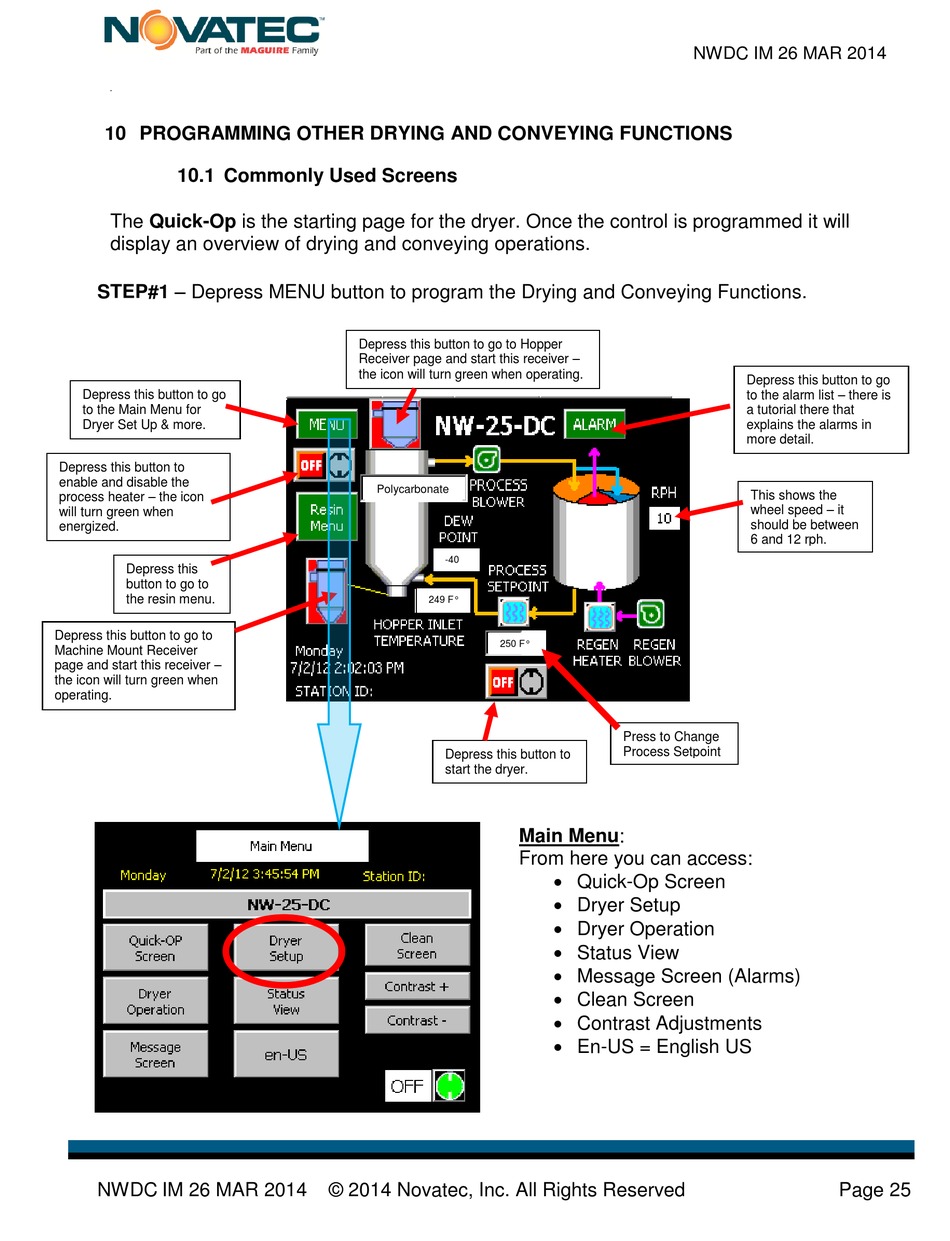

The Quick-Op is the starting page for the dryer. Once the control is programmed it will
display an overview of drying and conveying operations.
STEP#1 – Depress MENU button to program the Drying and Conveying Functions.
Depress this button to go
to the Main Menu for
Dryer Set Up & more.
Depress this button to
enable and disable the
process heater – the icon
will turn green when
energized.
Depress this
button to go to
the resin menu.
Depress this button to go to
Machine Mount Receiver
page and start this receiver –
the icon will turn green when
operating.
NWDC IM 26 MAR 2014
Depress this button to go to Hopper
Receiver page and start this receiver –
the icon will turn green when operating.
Polycarbonate
-40
249 F°
250 F°
Depress this button to
start the dryer.
© 2014 Novatec, Inc. All Rights Reserved
NWDC IM 26 MAR 2014
Press to Change
Process Setpoint
Main Menu:
From here you can access:
 Quick-Op Screen
 Dryer Setup
 Dryer Operation
 Status View
 Message Screen (Alarms)
 Clean Screen
 Contrast Adjustments
 En-US = English US
Depress this button to go
to the alarm list – there is
a tutorial there that
explains the alarms in
more detail.
This shows the
wheel speed – it
should be between
6 and 12 rph.
