Assembly Instructions

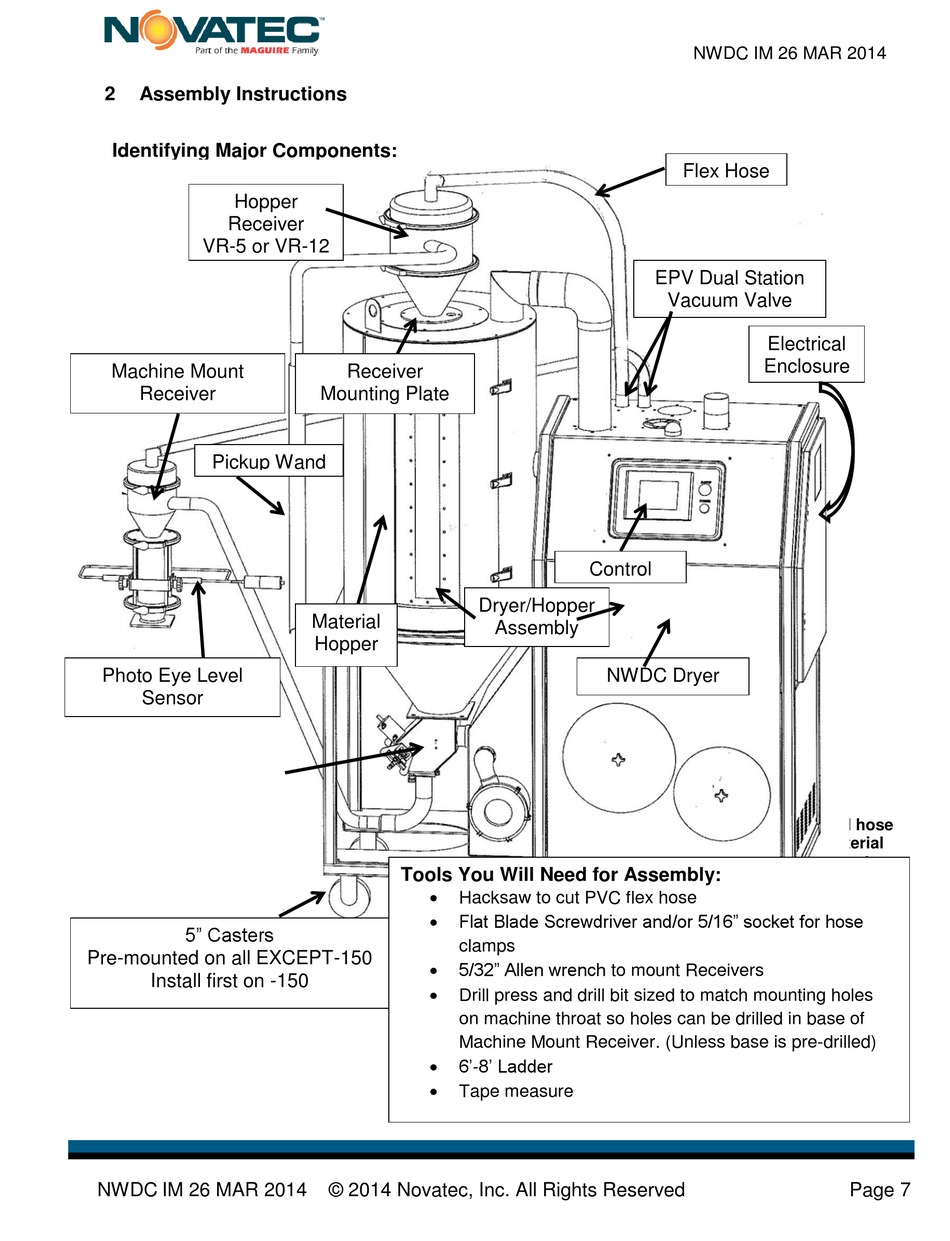

Identifying Major Components:
Basic Components of NOVATEC NWDC Dryer Assembly
Hopper
Receiver
VR-5 or VR-12
Machine Mount
Receiver
Pickup Wand
Vacuum
Purge Valve
Photo Eye Level
1.2.1 Prepare/Assemble Machine Mount Receiver
Sensor
Vacuum Vacuum
Purge Valve Purge Valve
1-A
1-B
5" Casters
Pre-mounted on all EXCEPT-150
Install first on -150
NWDC IM 26 MAR 2014
Receiver
Mounting Plate
Material
Hopper
1-A: If Machine Mount Receiver base has not been pre-drilled,
remove base from Machine Mount Receiver and drill holes
1-C
to match machine throat hole pattern and re-attach base to
MM Receiver.
1-B: Attach Photo Eye Level Sensor to the bracket provided.
NOTE: As you proceed with assembly, make sure that all bolts and hose
clamps are securely fastened to ensure that there are no air or material
1-C: Connect 115/1/50-60 VAC wiring to twist lock plug.
leaks in the system. Do not use excessive flex hose but avoid sharp turns
Tools You Will Need for Assembly:
(supplied)
as this will hurt the efficiency of the system operation.

Hacksaw to cut PVC flex hose

Flat Blade Screwdriver and/or 5/16" socket for hose
clamps

5/32" Allen wrench to mount Receivers

Drill press and drill bit sized to match mounting holes
on machine throat so holes can be drilled in base of
Machine Mount Receiver. (Unless base is pre-drilled)

6'-8' Ladder

Tape measure
© 2014 Novatec, Inc. All Rights Reserved
EPV Dual Station
Control
Panel
Dryer/Hopper
Assembly
NWDC Dryer
NWDC IM 26 MAR 2014
Flex Hose
Vacuum Valve
Stubs
Electrical
Enclosure
