Hopper Receivers with Blowback are supplied with a
male/female twist lock plug to which 115/1/50-60 VAC
should be wired. A clean source of 80-120 psi com-
pressed air should be connected to the supplied FNPT
fitting. (3/8" on the VR-5 and ¼" on the VR-12)

5.3 Positioning the NWB-DC

Roll the NWB-DC into position next to the process ma-
chine it will be serving.
NOTE: LOCATION
Position your NWB-DC Series dryer in a location where
material and vacuum hoses will not be disturbed. Allow
sufficient distance (at least 2 feet) from the surround-
ing equipment, so the access doors may be opened to
perform routine maintenance on the dryer and for safe
operation.
5.4 Install Machine Mount Receiver and
Connect Flex Hose
5.4 Install Machine Mount Receiver and Connect
Flex Hose

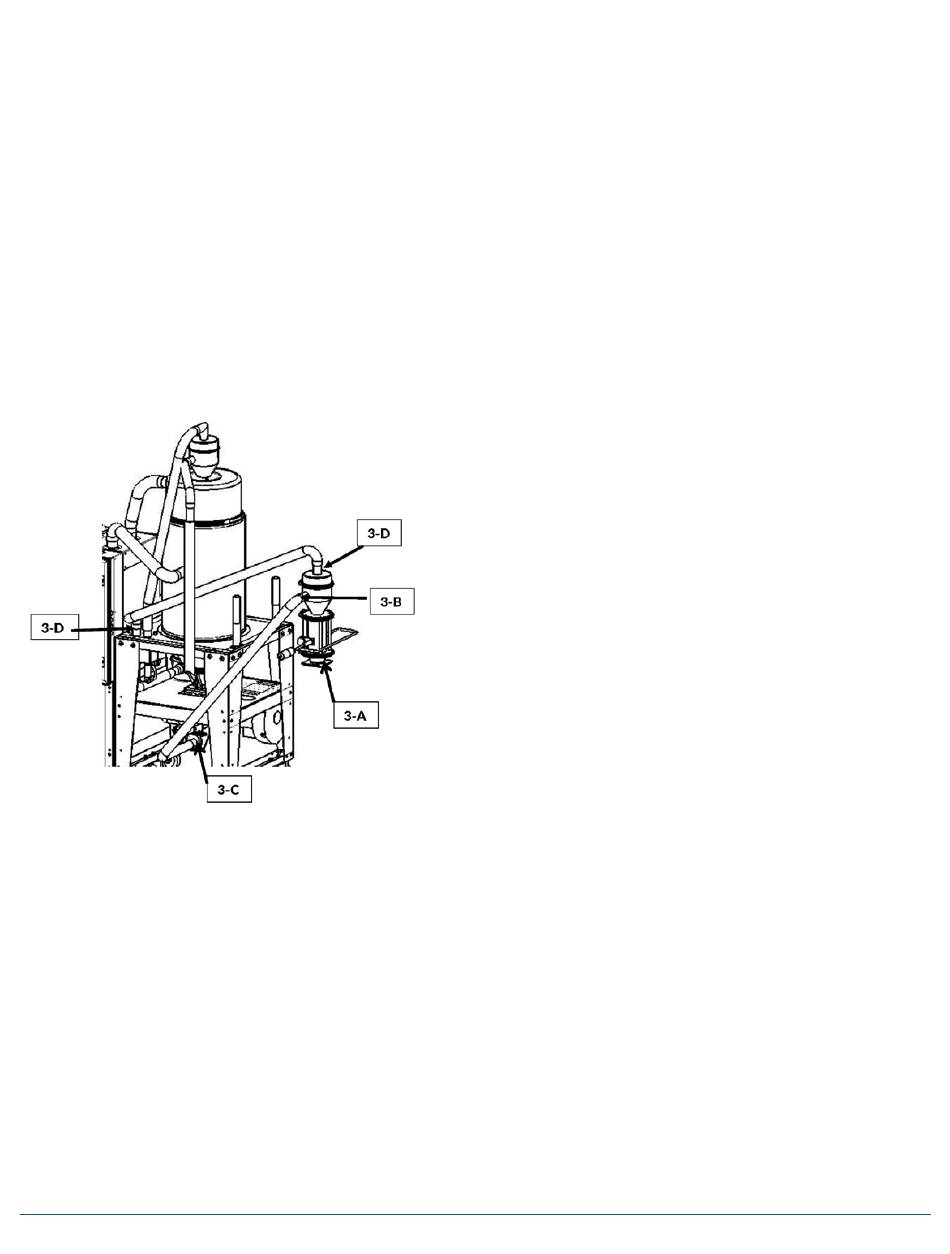

3-A Bolt the Machine Mount Receiver to the process
machine throat with user-supplied bolts.
3-B Push one end of the flex hose all the way onto the
material inlet stub on the side of the receiver and
fasten it securely with a hose clamp (supplied).
3-C String flex hose to the vacuum purge take-off (at-
tached to the bottom of the hopper) cut it to length
and fasten securely with a hose clamp.
3-D Attach one end of flex hose to the vacuum inlet stub
on top of the Machine Mount receiver and fasten it
securely with a hose clamp. String the flex hose to
the farthest EPV Dual Station Vacuum Valve Stub
extending from the top of the dryer. Cut flex hose to
length and attach it securely to the stub with a hose
clamp.
9
