Prepare/Assemble Machine Mount Receiver; Mount Hopper Receiver & Connect Flex Hose And Pickup Wand - NovaTec NovaWheel NWDC Series Instruction Manual

2.1 Prepare/Assemble Machine Mount Receiver

1-A
1-B
NOTE: As you proceed with assembly, make sure that all bolts and hose clamps are securely fastened to
ensure that there are no air or material leaks in the system. Do not use excessive flex hose but avoid
sharp turns as this will hurt the efficiency of the system operation.
2.2 Mount Hopper Receiver & Connect Flex Hose and Pickup Wand
2-B
2-C
2-A
Hopper Receivers with Blowback are supplied with a male/female twist lock plug to which 115/1/50-60 VAC
should be wired. A clean source of 80-120 psi compressed air should be connected to the supplied FNPT fitting.
(3/8" on the VR-5 and ¼" on the VR-12)
Roll the NWDC into position next to the process machine it will be serving.
NWDC IM 26 MAR 2014

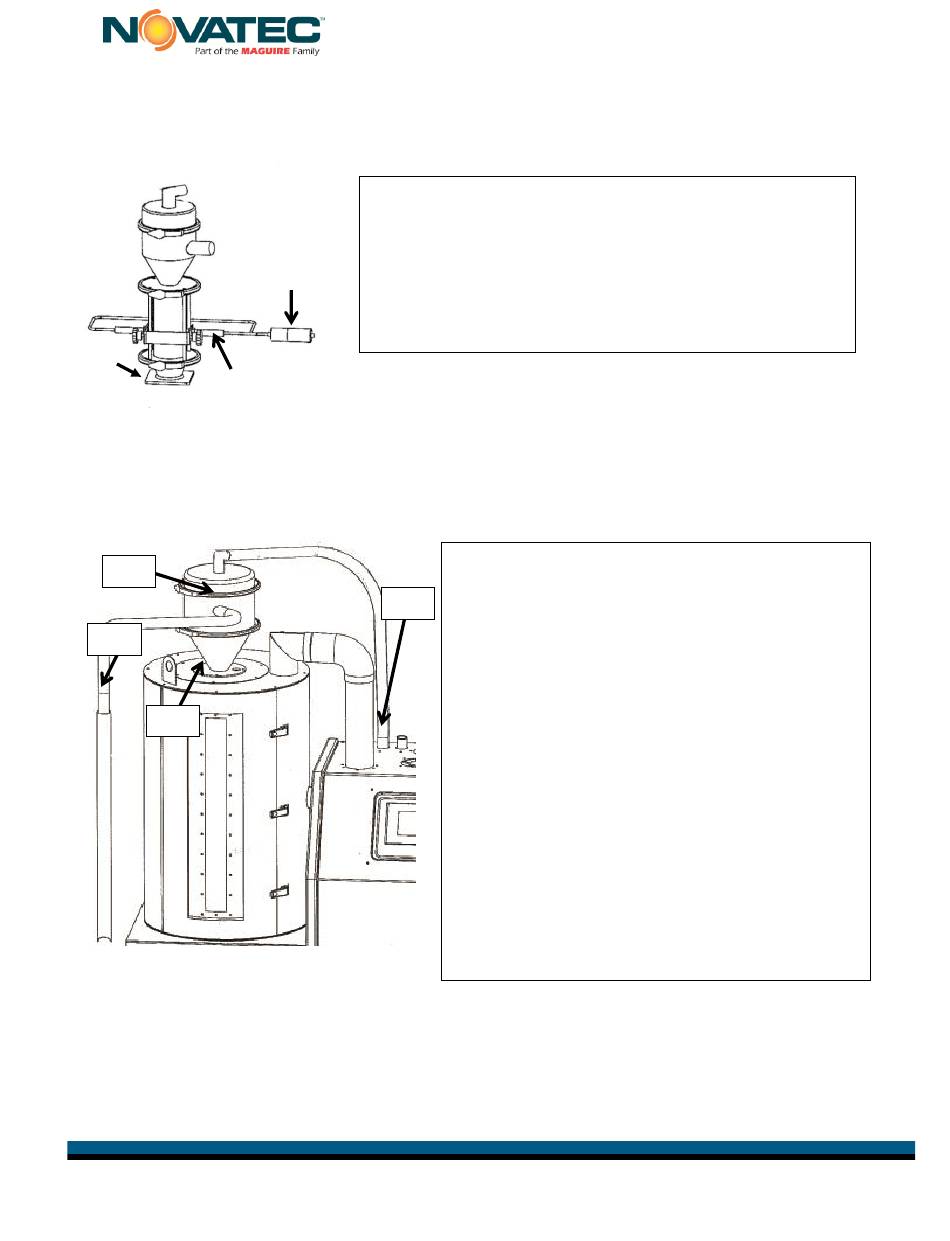

1-A: If Machine Mount Receiver base has not been pre-drilled,
remove base from Machine Mount Receiver and drill holes
to match machine throat hole pattern and re-attach base to
MM Receiver.
1-C
1-B: Attach Photo Eye Level Sensor to the bracket provided.
1-C: Connect 115/1/50-60 VAC wiring to twist lock plug.
(supplied)
2-D
© 2014 Novatec, Inc. All Rights Reserved
2-A: Remove cover plate from top of Material Hopper
(save bolts and washers) then, after removing
green tape from flapper, place Hopper Receiver
in hole. Align inlet stub to face direction from
where material will be pulled. Fasten the Receiver
to the Hopper using the saved ¼" x 20 bolts and
washers.
2-B: Place hose clamp over one end of flex hose and
push end of the hose on to the material inlet stub
on the side of the receiver. Fasten hose clamp
securely.
2-C: Cut the flex hose to a length that will allow the
5' long pickup wand to reach all corners of the
bulk container supplying the material to the
dryer hopper. Push the cut end of the flex hose
over the end of the pickup wand and secure with
hose clamp.
2-D: Follow same instructions to attach flex hose
running from the vacuum stub on top of the
Hopper Receiver to the nearest EPV Dual
Station Vacuum Valve Stub extending from
the top of the dryer. (See illustration)
