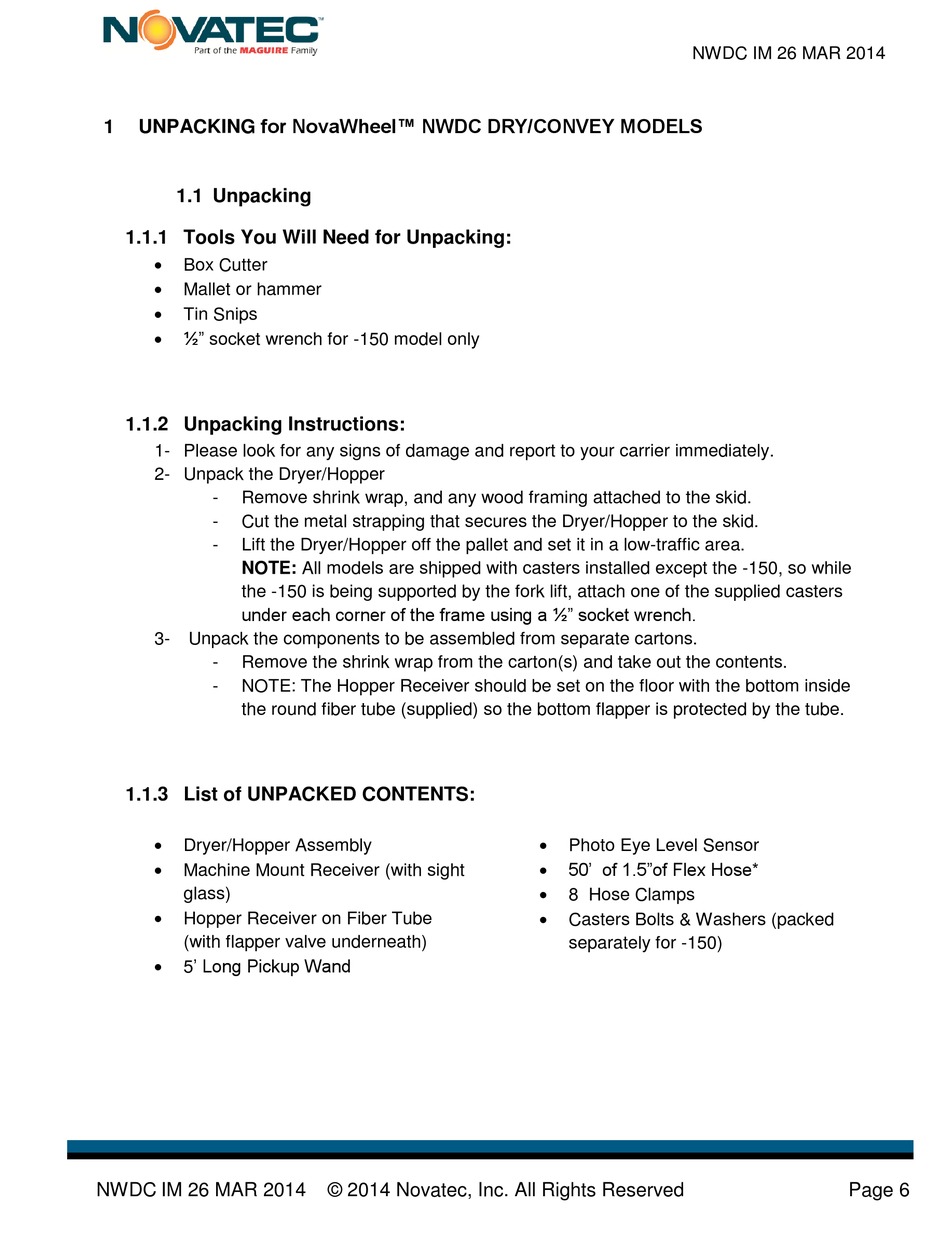

UNPACKING for NovaWheel™ NWDC DRY/CONVEY MODELS
1

1.1 Unpacking

1.1.1 Tools You Will Need for Unpacking:


Box Cutter

Mallet or hammer

Tin Snips

½" socket wrench for -150 model only

1.1.2 Unpacking Instructions:

1- Please look for any signs of damage and report to your carrier immediately.
2- Unpack the Dryer/Hopper
- Remove shrink wrap, and any wood framing attached to the skid.
- Cut the metal strapping that secures the Dryer/Hopper to the skid.
- Lift the Dryer/Hopper off the pallet and set it in a low-traffic area.
NOTE: All models are shipped with casters installed except the -150, so while
the -150 is being supported by the fork lift, attach one of the supplied casters
under each corner of the frame using a ½" socket wrench.
3- Unpack the components to be assembled from separate cartons.
- Remove the shrink wrap from the carton(s) and take out the contents.
- NOTE: The Hopper Receiver should be set on the floor with the bottom inside
the round fiber tube (supplied) so the bottom flapper is protected by the tube.

1.1.3 List of UNPACKED CONTENTS:


Dryer/Hopper Assembly

Machine Mount Receiver (with sight
glass)

Hopper Receiver on Fiber Tube
(with flapper valve underneath)

5' Long Pickup Wand
NWDC IM 26 MAR 2014 © 2014 Novatec, Inc. All Rights Reserved
NWDC IM 26 MAR 2014

Photo Eye Level Sensor

50' of 1.5"of Flex Hose*

8 Hose Clamps

Casters Bolts & Washers (packed
separately for -150)
Page 6
