4.1 Differences in Layout for -300 model

5.0 ASSEMBLY INSTRUCTIONS

Tools You Will Need for Assembly:
• Hacksaw to cut PVC flex hose
• Flat Blade Screwdriver and/or 5/16" socket for hose
clamps
• 5/32" Allen wrench to mount Receivers
• Drill press and drill bit sized to match mounting holes
on machine throat so holes can be drilled in base of
Machine Mount Receiver. (Unless base is pre-drilled)
• 6'-8' Ladder
• Tape measure

5.1 Prepare/Assemble Machine Mount Receiver

NOTE: As you proceed with assembly, make sure that all
bolts and hose clamps are securely fastened to ensure
that there are no air or material leaks in the system. Do
not use excessive flex hose but avoid sharp turns as this
will hurt the efficiency of the system operation.
5.2 Mount Hopper Receiver & Connect Flex Hose and
Pickup Wand
2-A: Remove cover plate from top of Material Hopper
(save bolts and washers) then, after removing mask-
ing tape from flapper, place Hopper Receiver in
hole. Align inlet stub to face direction from where
material will be pulled. Fasten the Receiver to the
Hopper using the saved ¼" x 20 bolts and washers.
2-B: Place hose clamp over one end of flex hose and
push end of the hose on to the material inlet stub
on the side of the receiver. Fasten hose clamp
securely.
2-C: Cut the flex hose to a length that will allow the 5'
long pickup wand to reach all corners of the bulk
container
supplying the
material to the
dryer hopper.
Push the cut
end of the
flex hose over
the end of the
pickup wand
and secure
with hose
clamp.
2-D: Follow same
instructions
to attach flex
hose running
from the vacu-
um stub on top of the Hopper Receiver to the near-
est EPV Dual Station Vacuum Valve Stub extending

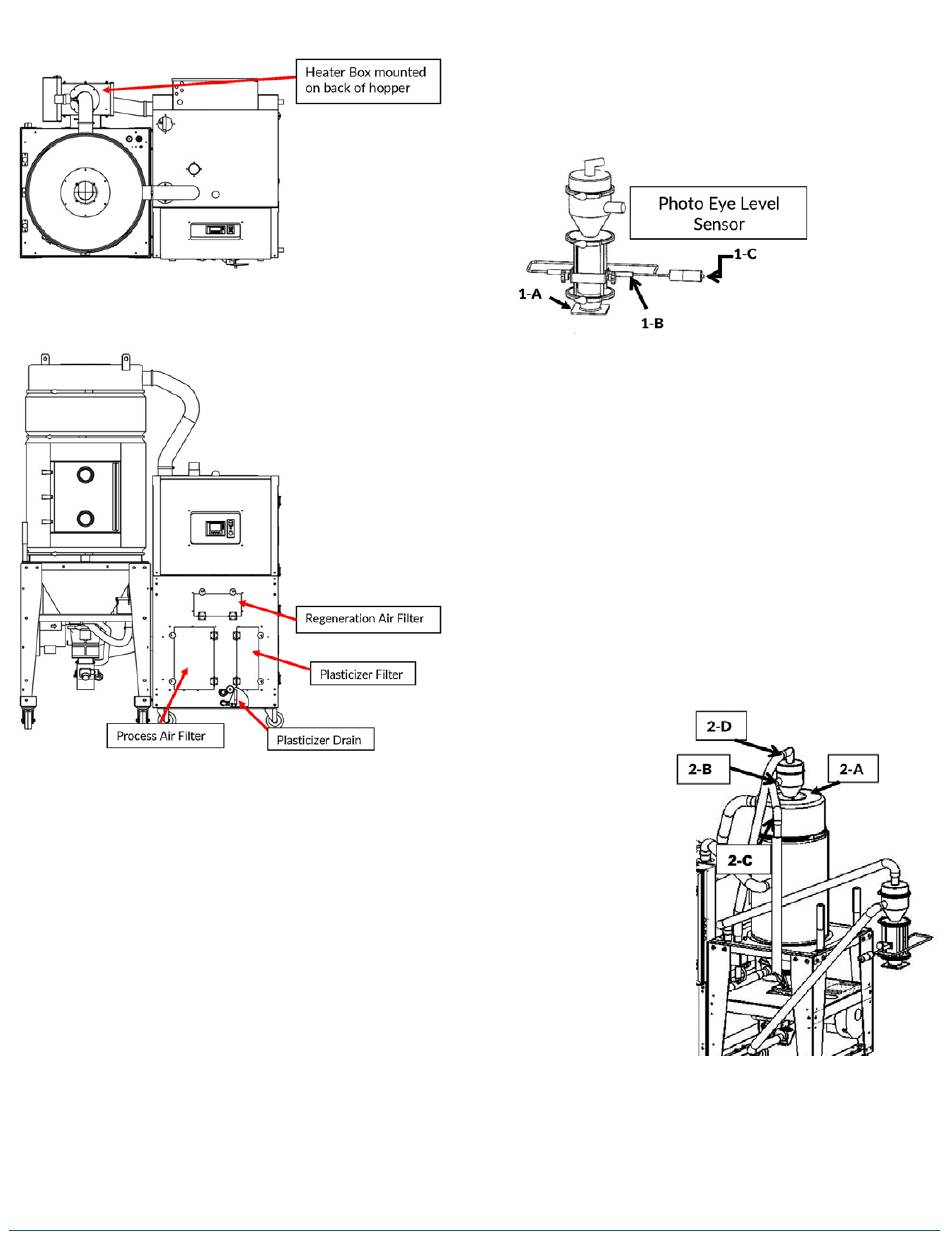

from the top of the dryer. (See illustration)
8
