5.1.4
Verify Output
Load demo.iic file from the Bridge Control Panel, as explained in
page
17. The light intensity and temperature transmitted by target board to host is shown on the
Bridge Control Panel screen, as shown in

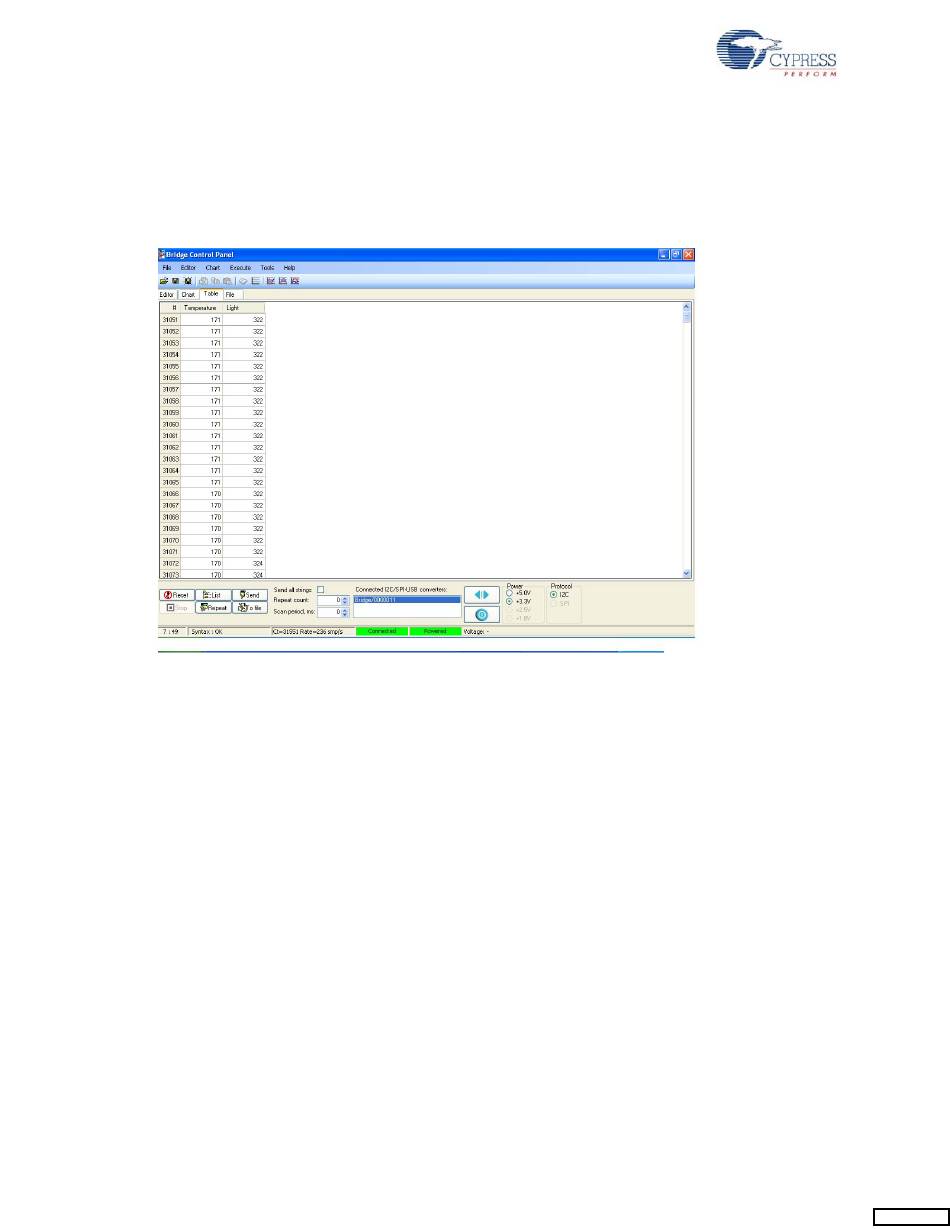

Figure 5-2. Light Intensity and Temperature Values on Bridge Control Panel
5.2
Example Project 2: I2C-USB Bridge Board Project
5.2.1
Project Description
This project demonstrates communication between the bridge and host. After each packet is
received by the bridge, an acknowledgement is sent to the host before the next transfer operation
begins.
This project uses the following modules:
CMPRG: Used to compare the data programmable reference threshold.
PWRFB: Used to set the power level for this application.
TIMER8: Used to wake up the application from sleep mode.
34
Run Demonstration Board Test on
Figure
5-2.
CY3240-I2USB I2C-USB Bridge Guide, Doc. # 001-66660 Rev.**
