Figure 3-4. ISSP Programming Header
3.3

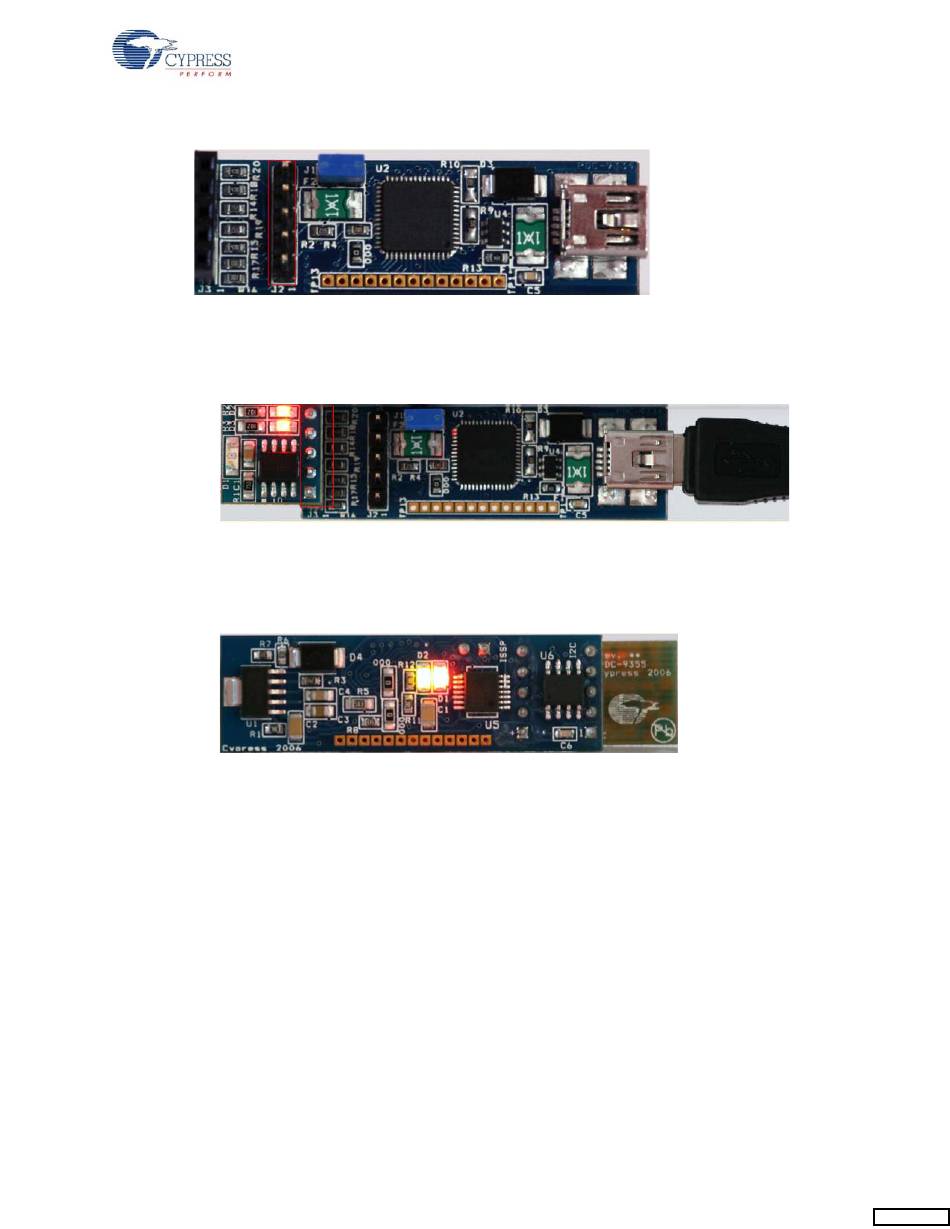

Connect Demonstration Board to Bridge
1. Connect I2C slave demonstration board to bridge, as shown in
Figure 3-5. Demonstration Board and Bridge Connection
2. Select +5V as power supply to the board from Bridge Control Panel. The LED (red) on the bridge
board lights up, as shown.
Figure 3-6. LED (Red) on the Bridge Board
3. Click List; the bridge will find I2C slave demonstration board at 0x00 address.
3.3.1
Run Demonstration Board Test
The demonstration board has built-in temperature sensor and photodiode. The measurement results
of these are sent over I
1. Open the Variable Setting dialog box from the Chart menu.
CY3240-I2USB I2C-USB Bridge Guide, Doc. # 001-66660 Rev.**
2
C.
Kit Operation
Figure
3-5.
17
