Getting Started
2.3
PSoC Programmer
To open PSoC Programmer, click Start > Programs > Cypress > PSoC Programmer 3.12 >
PSoC Programmer 3.12.
To successfully program the device, follow these steps:
1. Select the I2C-USB bridge in Port Selection, as shown in

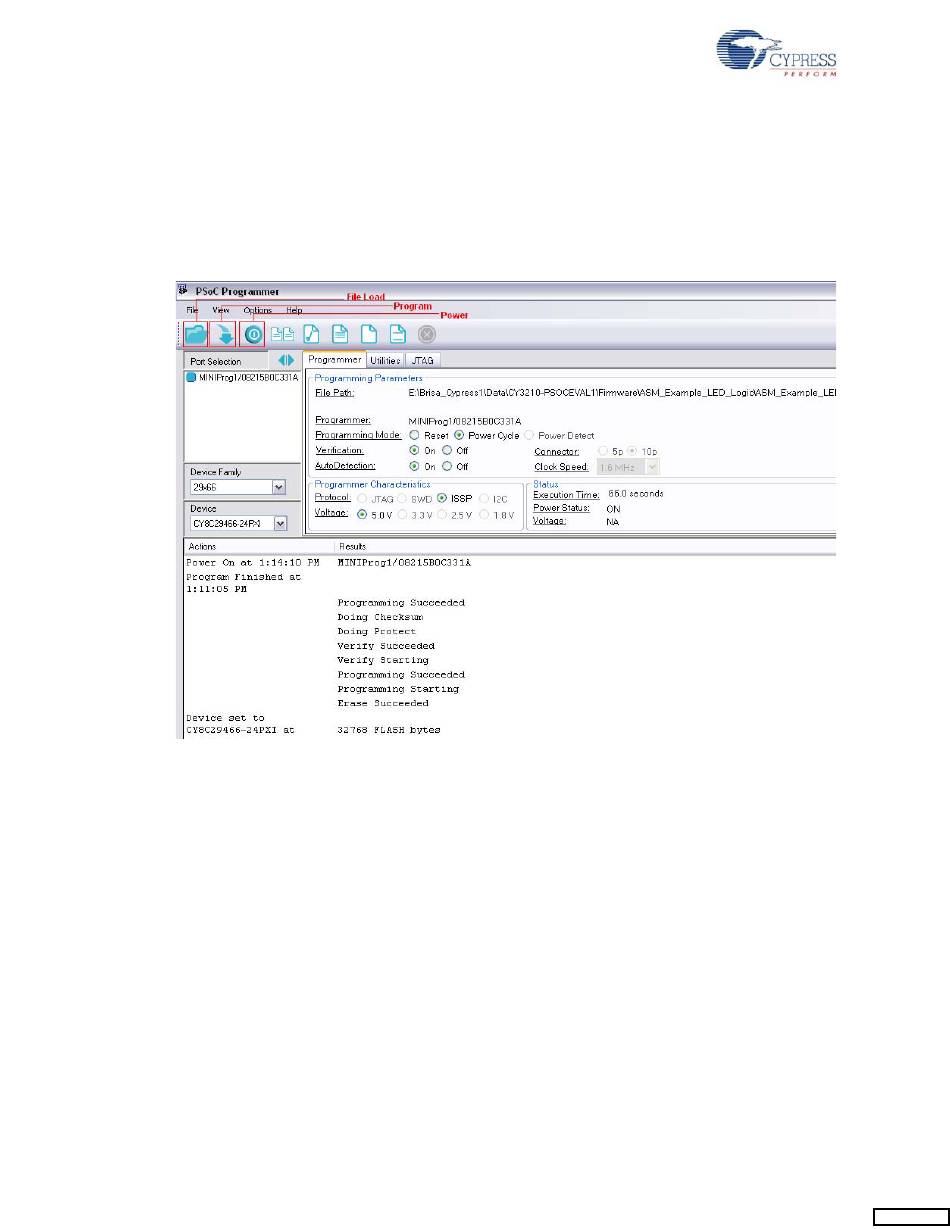

Figure 2-8. PSoC Programmer Window
2. Click the File Load button to load the hex file.
3. Click the Program button to program the hex file on the chip.
4. Close PSoC Programmer.
2.4
Bridge Control Panel
The Bridge Control Panel is used with CY3240 I2C-USB Bridge to enable communication with I2C
slave devices. This program is used to configure I
received from I2C slave devices. The Bridge Control Panel helps in optimizing, debugging, and cali-
brating the target application.
1. Click Start > Programs > Cypress > Bridge Control Panel 1.2 > Bridge Control Panel
2. Select Power Supply, as highlighted in
3. Select the port connectivity.
12
Figure
2
C devices and also to acquire and process data
Figure
2-9.
CY3240-I2USB I2C-USB Bridge Guide, Doc. # 001-66660 Rev.**
2-8.
