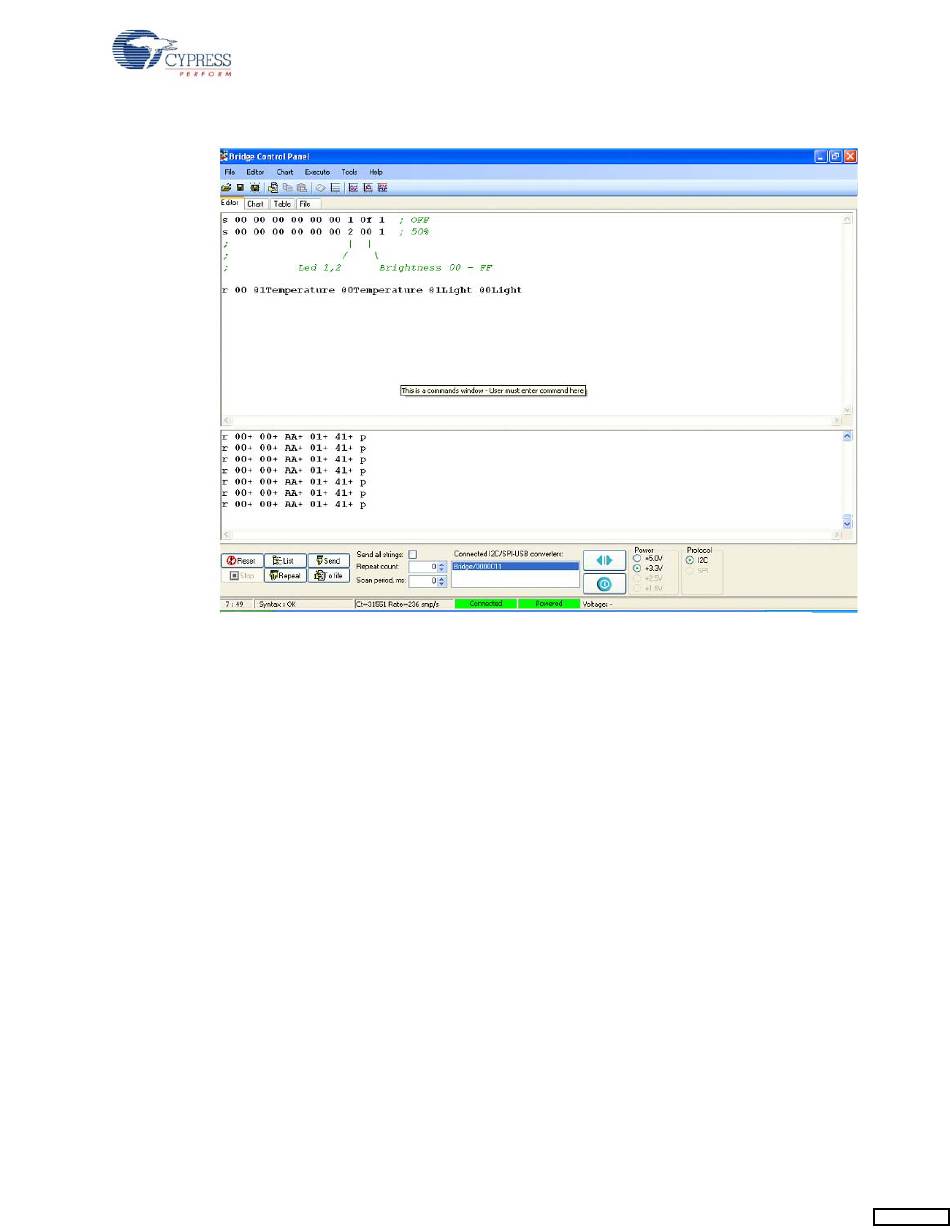

Figure 3-8. Bridge Control Panel Editor Screen View
5. Click in the last line, which reads temperature and light data from the device and then click the
Repeat button. On clicking Repeat, the command that is sent last is repeated until Stop is
clicked. This makes data collection easier. The data received from slave can be viewed either
graphically or in a tabular form.
6. Click the Chart tab to view data graphically, as shown in
CY3240-I2USB I2C-USB Bridge Guide, Doc. # 001-66660 Rev.**
Figure 3-9.
Kit Operation
19
