Getting Started

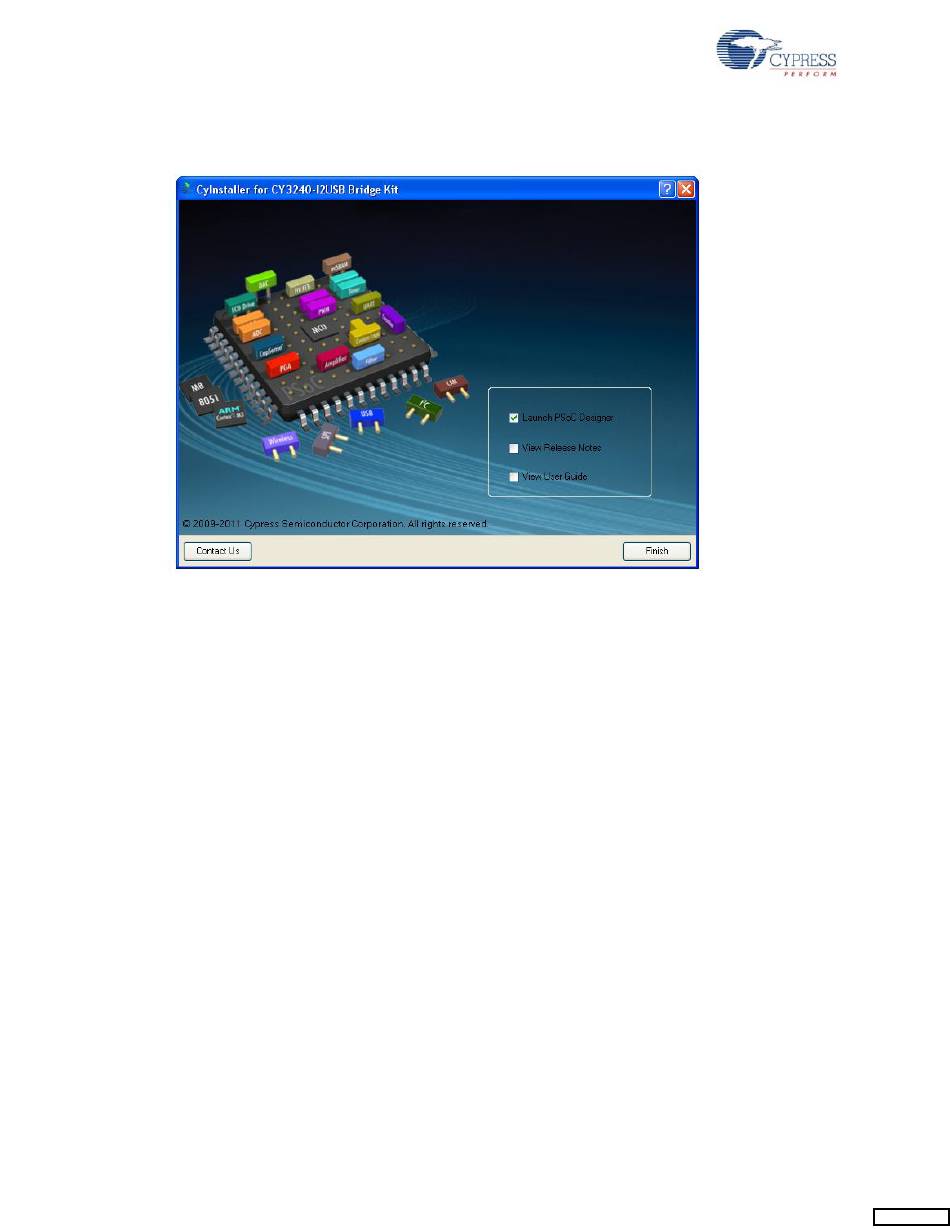

11. Click Finish to complete the installation, as shown in
Figure 2-6. Installation Complete Page
After the software installation, verify that you have all hardware and drivers set up for the I2C-USB kit
by connecting the bridge to your PC via its USB interface. Because this is the first time you have
connected this board to the PC, initial drivers are installed. Follow the instructions to complete the
installation process. Also, verify your installation by opening PSoC Programmer with the kit board
attached to USB.
2.2

PSoC Designer

PSoC Designer 5.1 is the revolutionary integrated design environment (IDE) that helps to customize
PSoC to meet specific application requirements. PSoC Designer software accelerates system bring-
up and time-to-market.
To open PSoC Designer, click Start > Programs > Cypress > PSoC Designer 5.1 >
■
PSoC Designer 5.1
To create a new project, click File > Create New Project
■
To open an existing project, click File > Open
■
To experiment with the example projects, go to
■
10
Figure 2-6.
Example Projects on page 31
CY3240-I2USB I2C-USB Bridge Guide, Doc. # 001-66660 Rev.**
