BATTERY CHARGER ASSEMBLY

Your HDBC45 is shipped with the following parts which require assembly to the main
body of the battery charger unit:
• 1 x Battery Charger Handle
• 4 x 50mm Screws
• 1 x Bottom Stabiliser Stop
• 2 x 25mm Screws
• 2 x Trolley Wheels with Covers
• Wheel Axle
• 2 x Circlips
• 2 x Black Voltage Terminal Caps
1 Place the main body of the battery charger in an upright position, install the top

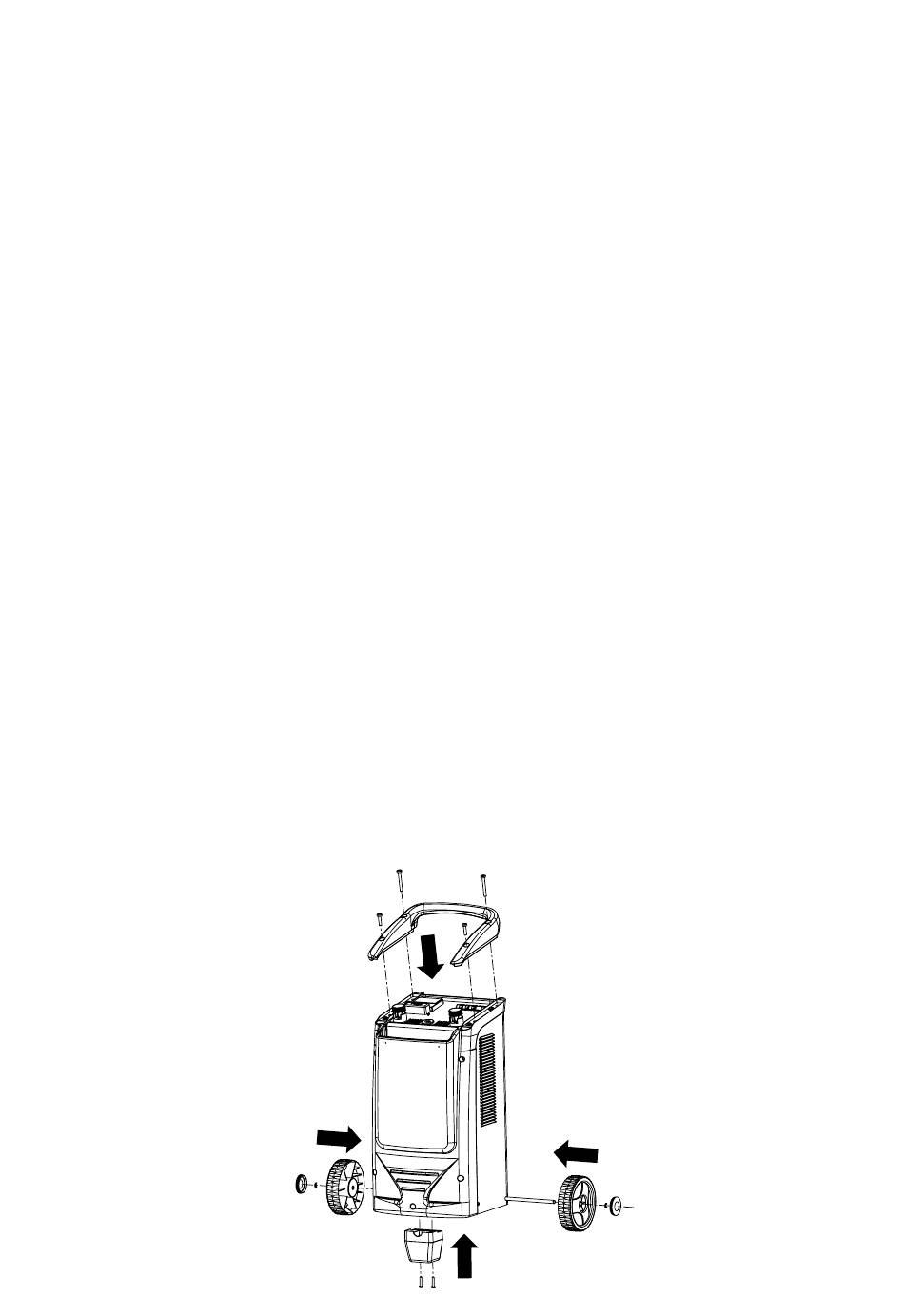

handle of the battery charger using the 4 x 50mm screws as per the below illustration.
Use a Phillips head screw driver to tighten all 4 screws.
2 Lay the main body of the battery charger down flat and fit the stabiliser stop to the
bottom of the battery charger using the 2 x 25mm screws provided. Use a Phillips head
screw driver to tighten screws.
3 Place the wheel axle provided through the bottom of the battery charger as per the
below illustration.
4 Fit the 2 trolley wheels to either end of the axle and secure with the 2 circlips provided.
5 Fit the supplied wheel covers to each wheel.
6 Screw the 2 x black voltage terminal caps provided to both the 12V & 24V outlets on
the top panel of the battery charger.
