KIT FEATURES
ISO-DIN
head unit
provisions
Pocket
provisions

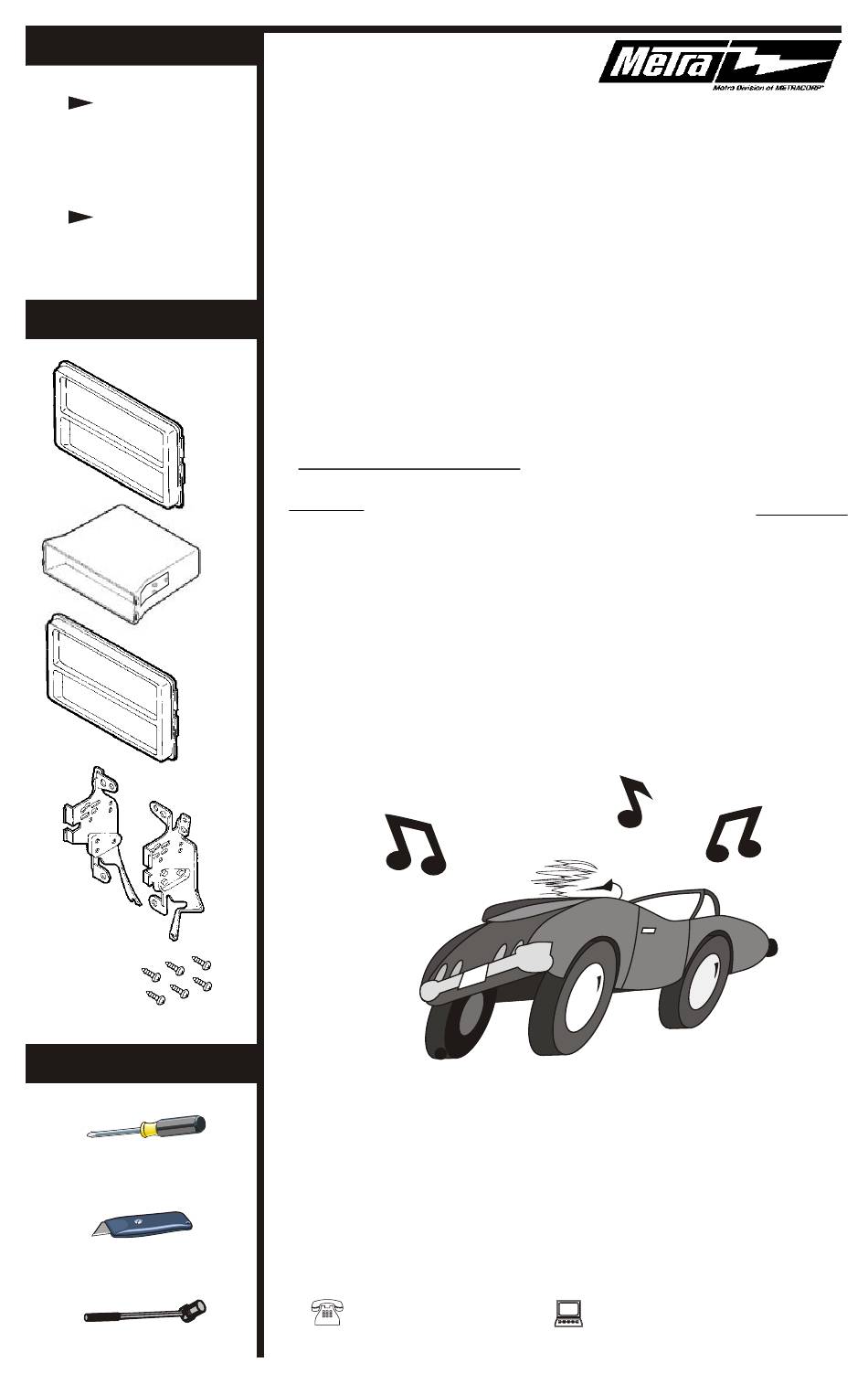

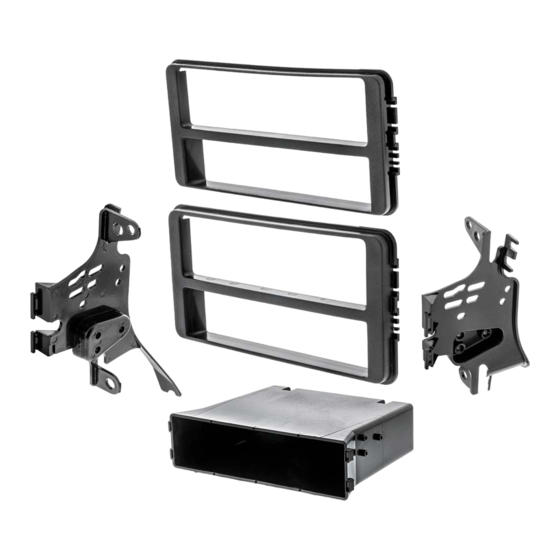

KIT COMPONENTS
Radio
Housing
"C"
Pocket
Radio
Housing
"E"
Mounting
Brackets
(6) #6 x ¼"
Phillips Flat-
TOOLS REQUIRED
Phillips screwdriver
Cutting tool
Socket wrench
99-8201
INSTALLATION
INSTRUCTIONS
APPLICATIONS
CAR
TOYOTA
Celica 2000-05................................................1-3
Echo 2000-05..................................................1-3
1-800-221-0932
© COPYRIGHT 2001-07 METRA ELECTRONICS CORPORATION
www.metraonline.com
PAGE
Advertisement
Table of Contents
Related Manuals for Metra Electronics 99-8201
Summary of Contents for Metra Electronics 99-8201
- Page 1 KIT COMPONENTS Radio Housing "C" APPLICATIONS PAGE TOYOTA Celica 2000-05..........1-3 Pocket Echo 2000-05..........1-3 Radio Housing "E" Mounting Brackets (6) #6 x ¼" Phillips Flat- TOOLS REQUIRED Phillips screwdriver Cutting tool 1-800-221-0932 www.metraonline.com © COPYRIGHT 2001-07 METRA ELECTRONICS CORPORATION Socket wrench...
- Page 2 TOYOTA Celica 2000-05 "C" "C" Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the gear shifter trim bezel and remove (2) Locate Radio Housing "C". Using the Phillips screws exposed below the climate dotted lines as a guide, cut and remove controls.
- Page 3 ALL VEHICLES Snap the Pocket onto the back of the Radio Housing. Attach the Mounting Brackets to the sides of the Radio Housing by inserting the slotted Bracket tabs into the slotted Housing tabs. (Be sure the mounting bosses on the Brackets align with the mounting bosses on the Pocket ).
- Page 4 Align the holes in the Mounting Brackets with the holes in the ISO-DIN head unit and mount the Brackets to the head unit with the screws included with the unit. A) Strip wire ends back ½" B) Twist ends together C) Solder D) Tape Locate the factory wiring harness in the...
