Metra Electronics 99-8225G Installation Instructions Manual

Car radio kit

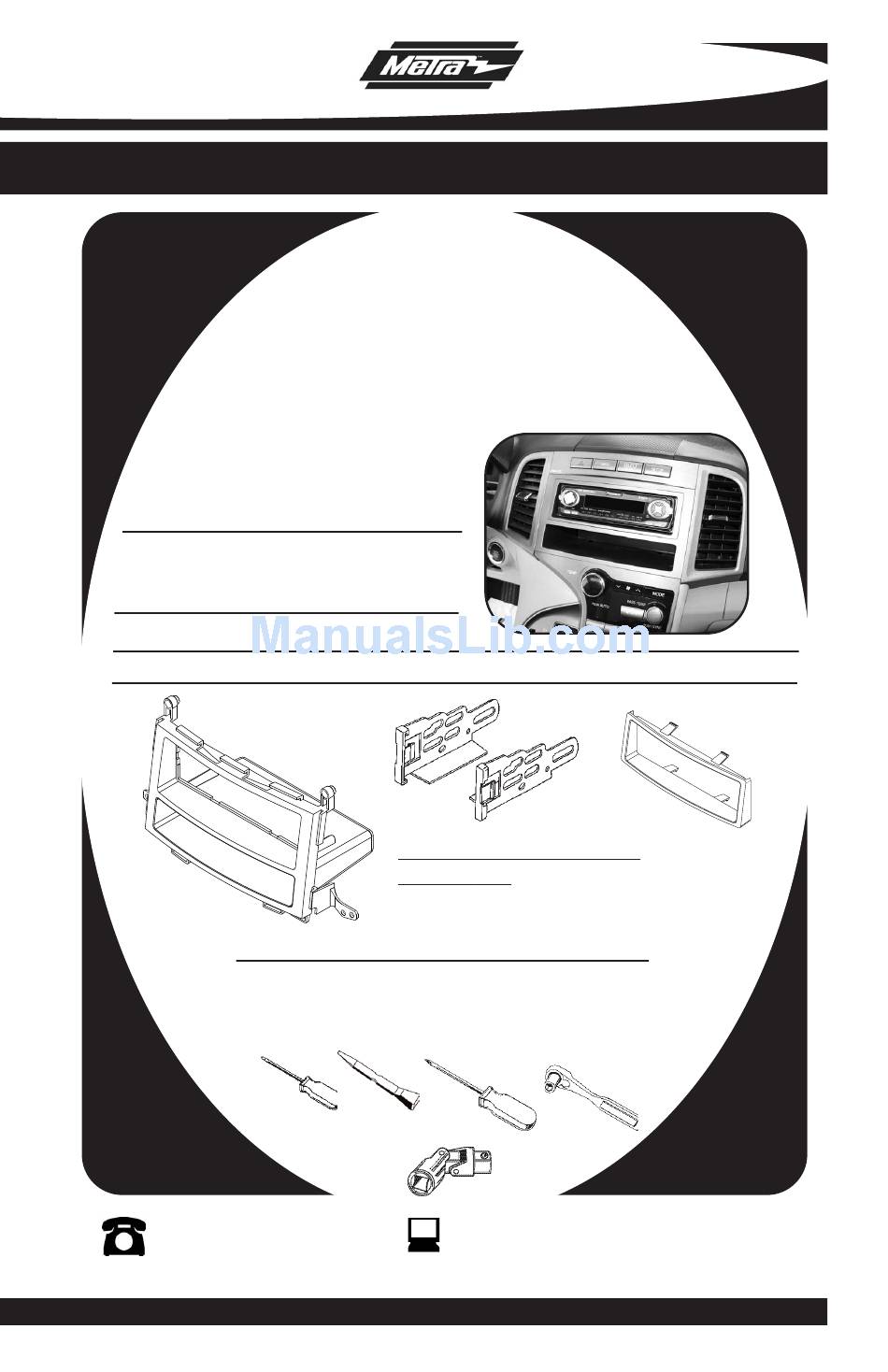

INSTALLATION INSTRUCTIONS FOR PART 99-8225G

99-8225G

KIT FEATURES

• DIN Head Unit Provision With Pocket

• ISO DIN Head Unit Provision With Pocket

• Painted to match factory dash - G=Gray

KIT COMPONENTS

• A) Single DIN Radio Housing • B) ISO Brackets • C) Trim Plate

Small Flat Blade Screwdriver/ Panel Removal Tool

• Magnetized Universal Swivel Head Socket Adapter

1-800-221-0932

APPLICATIONS

Toyota Venza

2009-2010

WIRING AND ANTENNA CONNECTIONS

(Sold Separately)

• 70-1761 - 1987-up Toyota harness

• TYTO-01 - 2003-up Toyota JBL amp interface

TOOLS REQUIRED:

• Phillips Screwdriver • Socket Set

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 99-8225G and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8225G Toyota Venza 2009-2010 99-8225G KIT FEATURES • DIN Head Unit Provision With Pocket • ISO DIN Head Unit Provision With Pocket • Painted to match factory dash - G=Gray KIT COMPONENTS • A) Single DIN Radio Housing • B) ISO Brackets • C) Trim Plate Small Flat Blade Screwdriver/ Panel Removal Tool •...
Page 2 - ISO Din Head Unit Provision With Pocket ..... . . 3 *Note: Refer also to the instructions included with the aftermarket radio. 99-8225G NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
Page 3 (Figure C) Remove (4) Phillips screws securing the factory radio to the a/c vent panel. (Figure D) Continue to kit assembly. REAR VIEW - RADIO AND A/C VENT PANEL RADIO 99-8225G DASH DISASSEMBLY...
Page 4 Slide the aftermarket head unit into the cage and secure. (Figure C) Snap the factory vent panel/Radio Housing over dash cavity. (Figure D) Reassemble remaining radio and dash assemblies in reverse order of disassembly. 99-8225G KIT ASSEMBLY REAR VIEW - A/C VENT PANEL...
Page 5 Snap the Trim Plate into the Radio Housing. (Figure C) 5 Snap the factory vent panel/Radio Housing over dash cavity. (Figure D) Reassemble remaining radio and dash assemblies in reverse order of disassembly. 99-8225G KIT ASSEMBLY REAR VIEW - A/C VENT PANEL...
Page 6 99-8225G NOTES...
Page 7 99-8225G NOTES...
