INSTALLATION INSTRUCTIONS FOR PART 99-8204
2003-2008 Toyota Corolla
99-8204
KIT FEATURES
• DDIN Head Unit Provision with Pocket
• ISO DIN Head Unit Provision with Pocket
KIT COMPONENTS

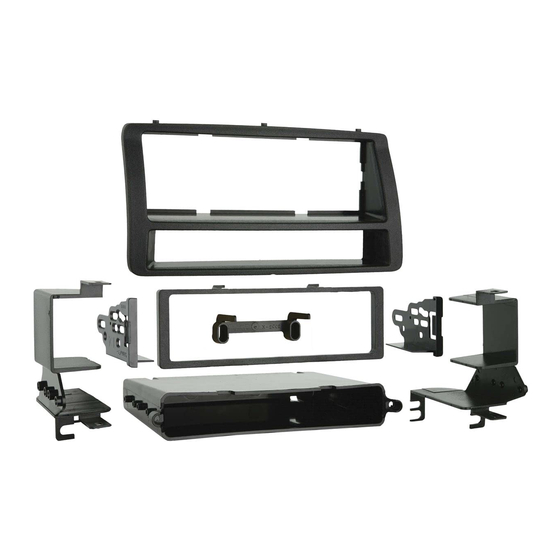

A) Radio Housing • B) Pocket • C) Trimplate • D) Mounting Brackets • E) ISO Brackets • F) Rear Support Bracket
G) (8) #8x3/8" Phillips Flat Head Screws • H) (4) #8x3/8" Phillips Pan Head Screws
