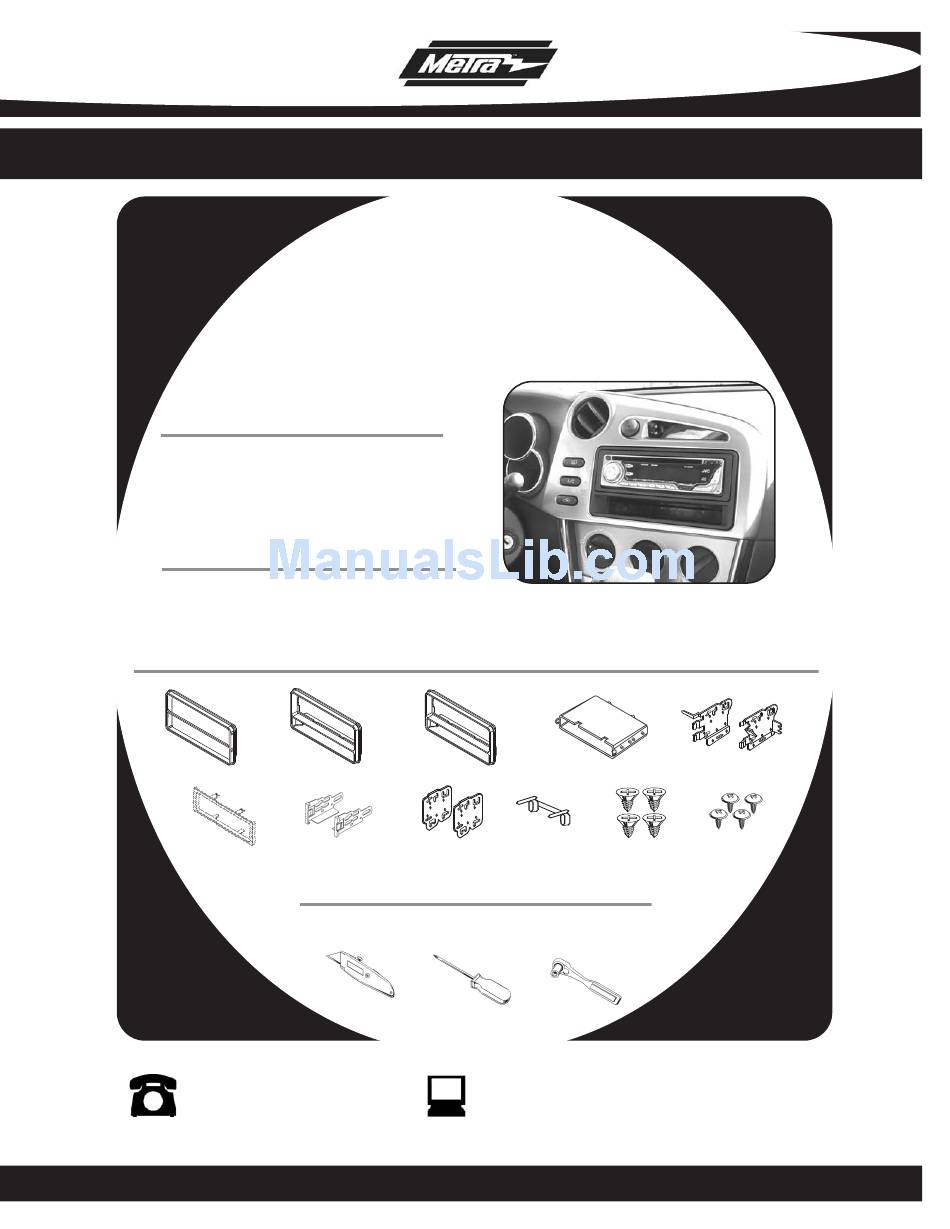

INSTALLATION INSTRUCTIONS FOR PART 99-8205
99-8205
KIT FEATURES
• DIN head unit provision
• ISO DIN head unit provision
• DDIN head unit provision
- Excluding 2005-2008 Matrix
• Stacked ISO DIN head unit provision
- Excluding 2005-2008 Matrix
KIT COMPONENTS
A) DDIN Faceplate (excluding 2005-2008 matrix) • B) ISO DIN Faceplate (excluding 2005-2008 matrix)
• C) ISO DIN Faceplate 2005-2008 Matrix D) Pocket • E) Mounting Brackets • F) ISO Trim Plate • G) ISO Brackets
• H) ISO Spacers • I) Rear Support • J) (4) #6x1/4" Phillip Screws • K) (4) #8x3/8" Phillip Screws
B
A
G
F
1-800-221-0932
© COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION
APPLICATIONS
Toyota Matrix 2003-2008
Pontiac Vibe 2003-2008
C
H
TOOLS REQUIRED:
Cutting Tool • Phillips Screwdriver • Socket Wrench
www.metraonline.com
E
D
I
J
K
Advertisement
Related Manuals for Metra Electronics 99-8205
Summary of Contents for Metra Electronics 99-8205
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8205 Toyota Matrix 2003-2008 Pontiac Vibe 2003-2008 99-8205 KIT FEATURES • DIN head unit provision • ISO DIN head unit provision • DDIN head unit provision - Excluding 2005-2008 Matrix • Stacked ISO DIN head unit provision...
- Page 2 99-8205 T ABLE OF CONTENTS Dash Disassembly ........1,2 Kit Assembly .
- Page 3 99-8205 TOYOT A MA TRIX 2003-2008 PONTIAC VIBE 2003-2008 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip the bottom edge of the radio trim panel then lift up and out to remove. (Figure A) Remove (4) 10 MM bolts securing the factory radio.
-
Page 4: Din Head Unit Provision
99-8205 DIN HEAD UNIT PROVISION Choose the correct faceplate for your application. The 2005-2008 Matrix faceplate is smaller than the other supplied faceplate. Attach the pocket to the back of the ISO/DIN Faceplate (by holding the faceplate upside down and inserting... - Page 5 99-8205 DIN HEAD UNIT PROVISION #6x1/4” Screws Mount the rear support to the back of the pocket with (2) #8X3/8” Phillips screws. (Figure D) Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure E) Slide the aftermarket head unit into the cage and secure.
-
Page 6: Iso Din Head Unit Provision
99-8205 ISO DIN HEAD UNIT PROVISION Choose the correct faceplate for your application. The 2005-2008 Matrix faceplate is smaller than the other supplied faceplate. Attach the the pocket to the back of the ISO/DIN Faceplate (by holding the face- plate upside down and inserting the right... - Page 7 99-8205 ISO DIN HEAD UNIT PROVISION #6x1/4” Screws Mount the rear support to the back of the pocket with (2) #8x3/8” Phillips screws. (Figure D) Mount the ISO Brackets to the head unit with the screws supplied with the unit. (Figure E) Slide the the head unit into the radio opening until the side clips engage.
-
Page 8: Double Din Head Unit Provision
99-8205 DOUBLE DIN HEAD UNIT PROVISION NOTE: 2005-2008 Matrix not applicable. Cut and remove the bottom portion (Displayed) of the mounting brack- ets. (Figure A) Cut and remove the center bar from the DDIN faceplate. (Figure B) Attach the ISO spacers to the... -
Page 9: Stacked Iso Din Head Unit Provision
99-8205 STACKED ISO DIN HEAD UNIT PROVISION NOTE: 2005-2008 Matrix not applicable. Cut and remove the bottom portion (Displayed) of the mounting brack- ets. (Figure A) Attach the ISO spacers to the mount- ing brackets by inserting the (4) bosses on each spacer into the (4) holes in each bracket. -
Page 10: Final Assembly
99-8205 FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) - Page 11 99-8205 NOTES...
- Page 12 INST998205 1-800-221-0932 www.metraonline.com REV. 09/26/08 © COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION INST99-8205...
