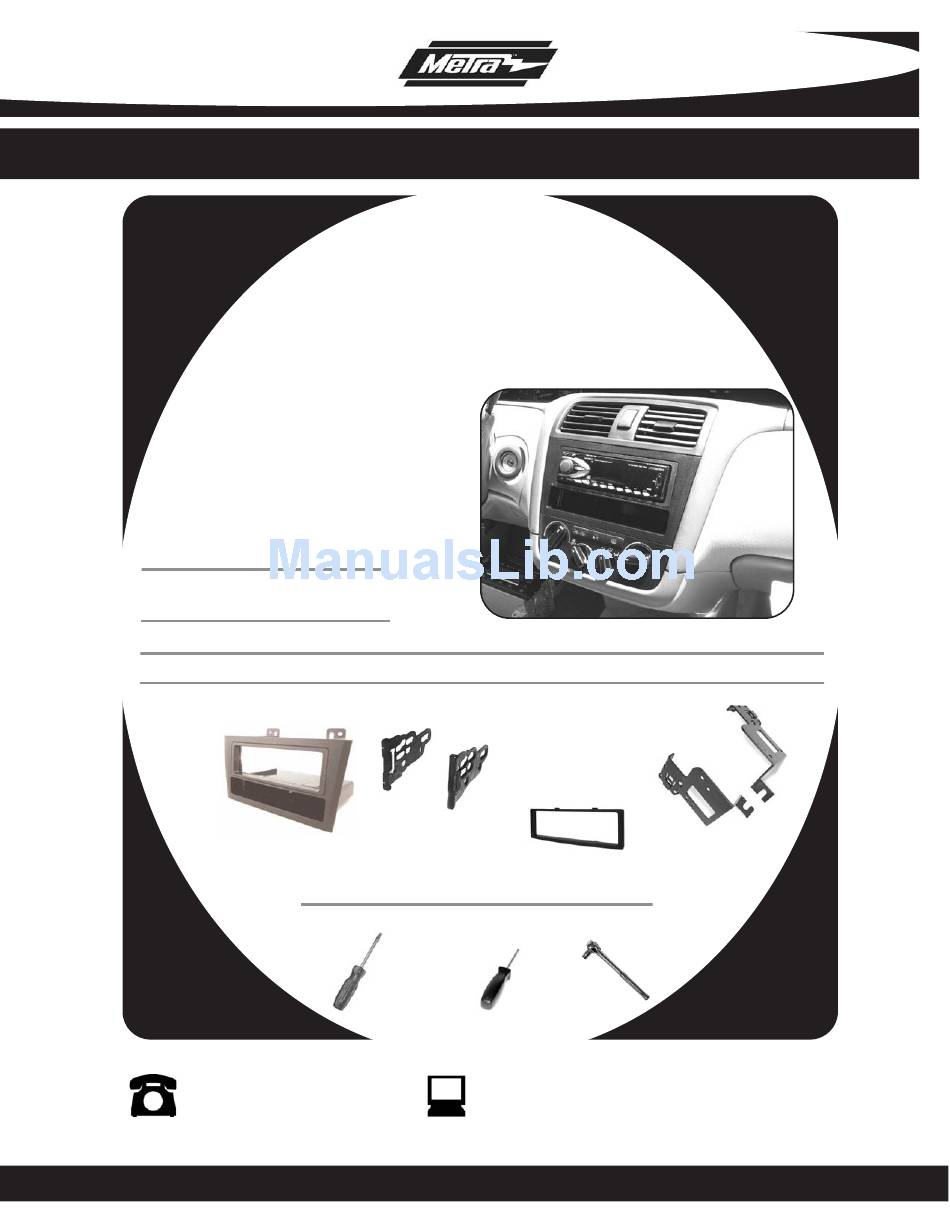

INSTALLATION INSTRUCTIONS FOR PART 99-8211
99-8211
KIT FEATURES
• DIN Head Unit Provisions with Pocket
• ISO DIN Head Unit Provisions with Pocket
KIT COMPONENTS
A) Radio Housing
I
B) ISO Brackets
A
Small Flat Blade Screwdriver I Phillips Screwdriver I Socket Wrench
1-800-221-0932
© COPYRIGHT 2004 METRA ELECTRONICS CORPORATION
APPLICATIONS
2000-04 TOYOTA AVALON
I
C) ISO Trim Plate I D) Radio Housing Brackets
B
TOOLS REQUIRED:
www.metraonline.com
D
C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-8211
Summary of Contents for Metra Electronics 99-8211
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8211 2000-04 TOYOTA AVALON 99-8211 KIT FEATURES • DIN Head Unit Provisions with Pocket • ISO DIN Head Unit Provisions with Pocket KIT COMPONENTS A) Radio Housing B) ISO Brackets Small Flat Blade Screwdriver I Phillips Screwdriver I Socket Wrench 1-800-221-0932 ©...
- Page 2 99-8211 Dash Disassembly • - 2000-2004 Toyota Avalon (column shift models) ... 1 - 2000-2004 Toyota Avalon (console shift models) ..2 Kit Assembly •...
- Page 3 Remove (2) 10 MM bolts from above radio/climate control assembly and remove assembly together. (Figure C) Remove (6) Phillips screws (4 from radio and 2 from climate control) from each side bracket to separate radio and cli- mate control. (Figure D) 99-8211 (column shift models)
- Page 4 Remove (2) 10 MM bolts from above radio/climate control assembly and remove assembly together. (Figure E) Remove (6) Phillips screws (4 from radio and 2 from climate control) from each side bracket to separate radio and cli- mate control. (Figure F) 99-8211 (console shift models)
-
Page 5: Din Head Unit Provision
99-8211 DIN Head Unit Provision Slide the mounting bracket onto the 99-8211 until side clips engage. (Figure A) Slide factory climate controls into the 99-8211 and secure using the factory hardware. (Figure B) Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. -
Page 6: Iso Din Head Unit Provision
ISO DIN HEAD UNIT PROVISION Slide the mounting bracket onto the 99-8211 until side clips engage. (Figure A) Slide factory climate controls into the 99-8211 and secure using the factory hardware. (Figure B) Mount the ISO Brackets to the head unit with the screws sup- plied with the unit. - Page 7 99-8211 Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit) Re-connect the negative battery terminal and test the unit for proper operation.
- Page 8 99-8211...
- Page 9 99-8211...
- Page 10 INST998211 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004 METRA ELECTRONICS CORPORATION...
