Summary of Contents for Stealth Products MTMD-42

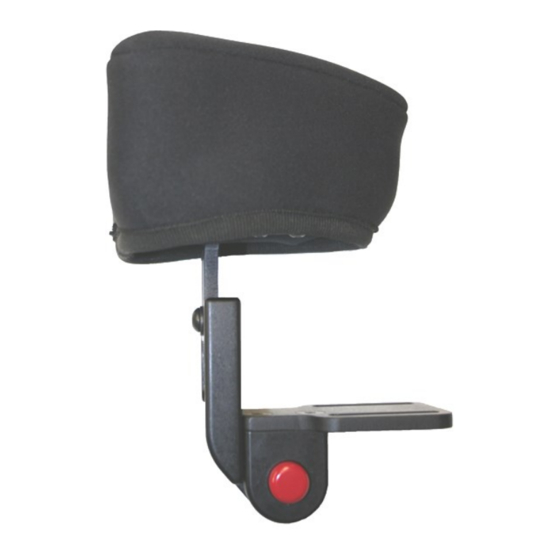

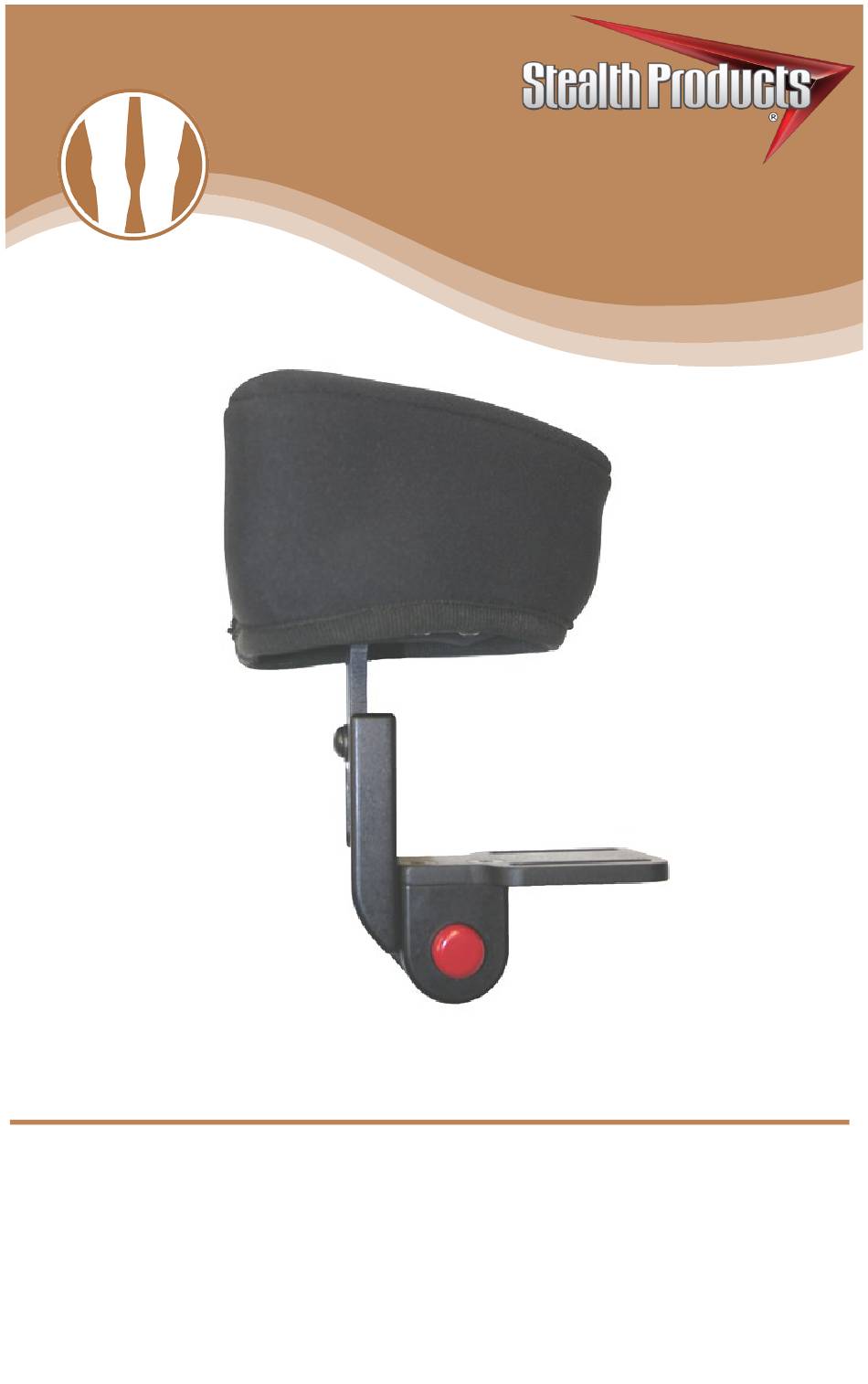

- Page 1 Medial Hardware USER MANUAL MTMD-42 Stealth’s User Manual and Maintenance Guide for Medial Thigh Support...
- Page 2 Customer Satisfaction Stealth Products strives for 100% customer satisfaction. Your complete satisfaction is important. Please contact us with feedback or suggested changes that will help improve the quality and usability of our products. You may reach us at: Stealth Products, LLC...
- Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...
-
Page 4: Introduction
They also contain important safety and maintenance information. For further assistance, or more advanced applications, please contact your supplier or Stealth Products at (512) 715-9995 or toll free at (800) 965-9229. Always keep the operating instructions in a safe place so they may be referenced as necessary. -
Page 5: Warranty
Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty. -
Page 6: Table Of Contents
Table of Contents 1.0 Customer Satisfaction……………………………………………………………i 2.0 Important Information…………………………………………………….…….ii 3.0 Introduction………………………………………………………………………...iii 4.0 Warranty………………………………………………………………………….….iv 5.0 Table of Contents………………………………………………………………….v 6.0 Warning Labels…………………………………………………………………….vi 6.1 Warning Labels……………………………………………………………………………..….vi 6.2 Limited Liability………………………………………………………………………………..vi 6.3 Testing…………………………………………………………………………………………..….vi 7.0 Design and Function…………………….………………………….………...….1 7.1 Available Hardware Mounting Options……….…………….………….………….1 8.0 Mounting..…………………………………………………………………………..2 8.1 Standard Mounting Options……...…………………………………………...……….2 Fixed…………………………………………………………………………………...…………...2 Removable………………………………………………………………………...…………….2 9.0 Operating……………...………..………………………………..…………...…….3... -
Page 7: Warning Labels
Initial setup and driving should be done in an area free of obstacles until the user is fully capable of driving safely. The MTMD-42 should always be tested without any person sitting in the wheelchair until every alteration of the physical installation or adjustment... -
Page 8: Design And Function
Design and Function Available Hardware Mounting Options MTHW-600 Fixed Position Removable hardware with knob fastener for easy adjustments Maximum height of 4 3/4inches 1/4-20 Button Head Screws are included. Use a 5/32 T– Handle for height adjustments and pad mount screws. -
Page 9: Mounting
Mounting Standard Mounting Options Fixed Insert the 1/4 20x 1/2” Socket Head Screws (F) (Qty. 4) through the drilled slots into the bottom of the seat pan and tighten. Removable Insert the 1/4 20x 3/4” Socket Head Screws (G) (Qty. 2) through the drilled out slot into the bottom of the seat pan and tighten. -
Page 10: Operating
Operating Operating Abductors Swing Away/Flip Down To remove the abductor: Depress the quick release button (A). Press against the pad mount (B) until the pommel is out of the way. To return the pad, depress the quick release button while returning the pad mount back into its upright and locked position. -
Page 11: Adjustments
10.0 Pommel Modification The adjustable medial pad modification (MTMD-42) is an upgraded pad option that allows adjustment in multiple angles/planes. The purpose of this adjustment is to allow for a more natural fit and comfort for the client. -
Page 12: Angle Adjustment
Adjustments 10.0 Angle Adjustment 10.3 To adjust pad angle: Loosen the 1/4-20 x 1 1/4” Flat Head Screw (F). Open/close abductor to the desired position Re-tighten screw with a 3/16 T-Handle Do not overtighten screws. WARNING *Medial support above shown with slip cover. -
Page 13: First Time Use
Explain to the customer any possible issues and how to address them. Conditions of Use 11.3 The MTMD-42 is intended for use as installed by the dealer, in accordance to the installation instructions in this manual: The foreseen conditions of use are communicated by the dealer or service technician to the user and/or attendant during the first-time use. -
Page 14: Maintenance
Maintenance 12.0 Care and Maintenance 12.1 Periodically check the hardware for loose screws or worn parts. Check the headrest for any foam breakdown and/or metal coming through the foam. This could be potentially dangerous for the client. To wash the cover, remove the foam from the medial hardware. - Page 15 NOTES 13.0...
- Page 16 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P91D280 Revision Date 2019-12-17...
