Installation - B-K lighting Precision2 HP2 Series Installation Instructions

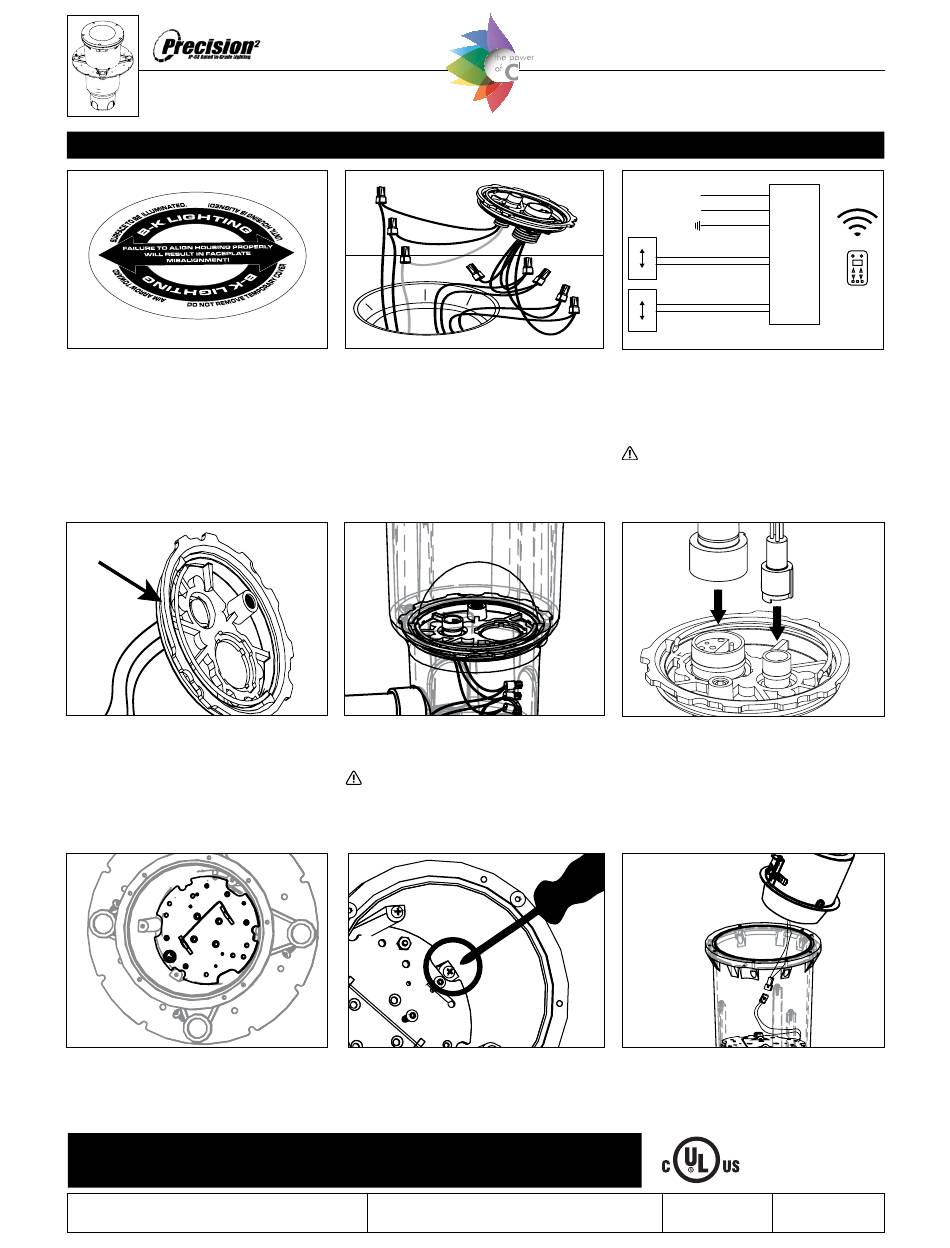

Installation Instructions

Installation

1. Remove temporary cover.
3. Wipe inside of housing where HydroLock® plate
will sit clean of debris before inserting patented
HydroLock® plate on to junction box. Align
HydroLock® plate with pins in housing and seat
it firmly in place.
6. Attach driver assembly to housing by aligning
keyhole notch under one (1) of three (3) #8 screw
heads.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
2. Make watertight connections using waterproof
wire connectors (provided) to leads on the
bottom of Patented HydroLock® Barrier Plate
Assembly. See wiring diagram.
4. Turn HydroLock® Barrier Plate clockwise ¼" to
lock.
Patented HydroLock® Barrier Plate must be
completely seated to ensure proper seal or
water may intrude. This step must be done
as stated or you will void your warranty.
7. Tighten the Phillips screws to secure driver
plate to housing.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
hybrid (0-10v wired dimming & continuous cct /sat. and hue by LCT)
HP
Solid State LED with Color Tuning
COM
GROUND
10V
0-10V Dim +
0-10V Dim -
0V
10V
0-10V CCT +
0-10V CCT -
0V
WIRING DIAGRAM - HydroLock® Plate
8 wire, 2 plug HydroLock® plate. Connect incoming
primary, ground and chosen external 0-10V and CCT
controls to HydroLock® plate. Use LCT to control
CCT, Dimming, Saturation, and Hue.
LCT (Light Commissioning Tool) must be
within 10 meters range of fixture for wireless
operation.
5. Connect driver assembly to Patented Hydro-
Lock™ Barrier Plate with quick disconnects.
8. Attach optical assembly to installed driver
assembly with quick disconnect.
RELEASE DATE
12-11-16
SERIES
2
LINE
Hydrolock
Plate
LCT
hp2/co2
REFERENCE NUMBER
INS001399
