Fixture Installation - B-K lighting ArtiStar Integral Standard Installation

Standard Installation

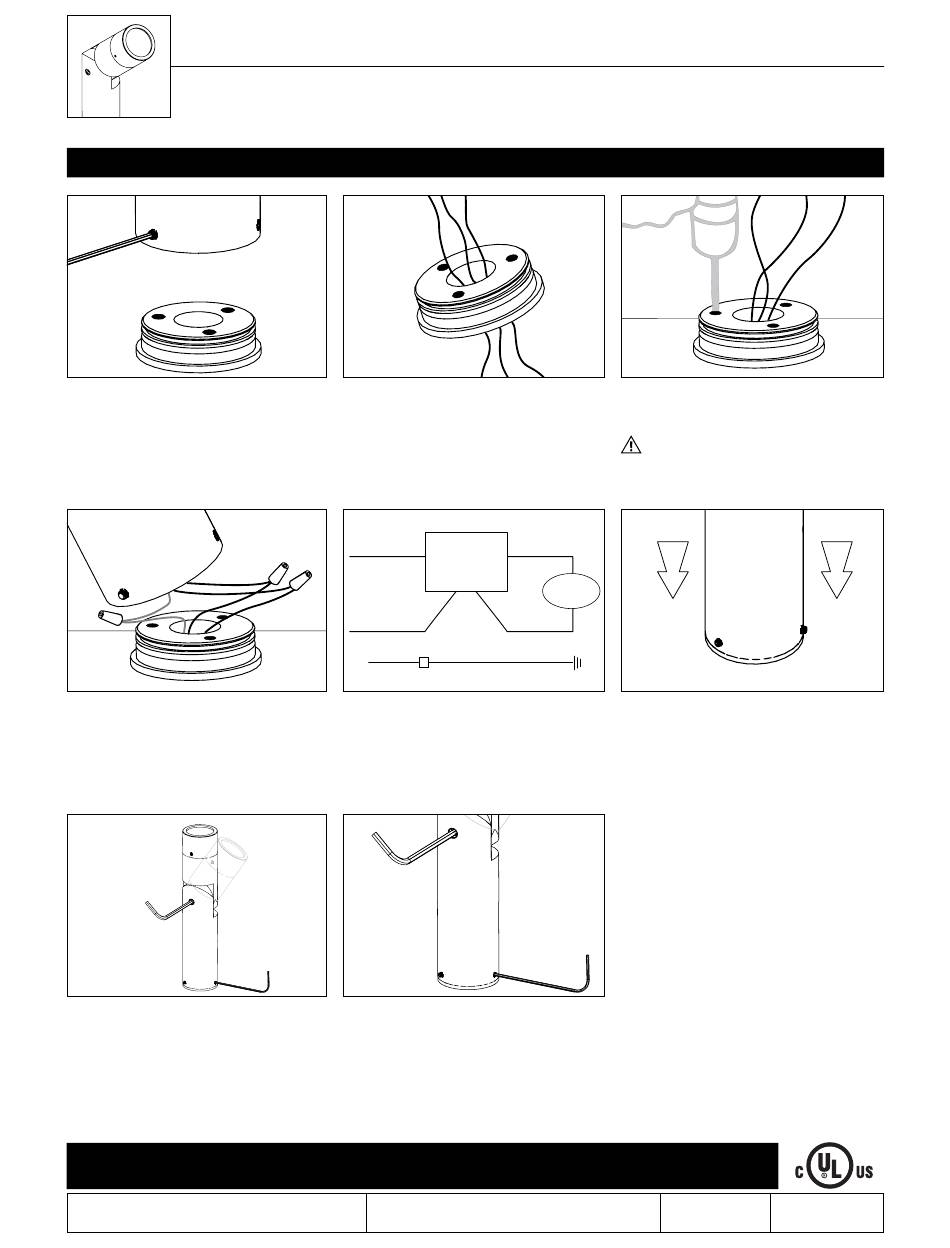

Fixture Installation

1. Study anchor base plan. Prepare mounting
surface for anchor base.
2. Use a 5/64" allen wrench to loosen three (3)
#8-32 stainless steel set screws (do not remove
stainless steel set screws from fixture base).
Remove anchor base from bottom of fixture.
5. Make watertight connections using waterproof
wire connectors (not included) to connect
primary branch circuit wiring to primary driver
side. Connect incoming ground to ground wire
provided in fixture body. See wiring diagram.
7. Use a 3/16" allen wrench to slightly loosen ¼"-28
stainless steel black oxide socket head cap screw
at the knuckle for vertical aiming purposes.
Rotate fixture at base and aim fixture to desired
horizontal location.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
3. Pull branch circuit wiring necessary for
installation (not included). Feed branch circuit
wiring through anchor base.
HOT
DRIVER
NEUTRAL
GROUND IN HOUSING
GROUND
WIRING DIAGRAM
All line voltage connections must be made in
compliance with the National Electrical Code.
Failure to do so will void warranty.
8. Tighten the three (3) #8-32 stainless steel set
screws on anchor base and ¼"-28 stainless steel
locking screw at the knuckle to secure all aiming
positions.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
ArtiStar Integral
4. Secure anchor base to solid surface (i.e. wood,
concrete) using appropriate hardware for specific
surface.
Seal base to surface as per NEC.
(+)
FIXTURE
(-)
6. Place fixture onto mounted anchor base and
press straight down until the two pieces are flush
with each other.
RELEASE DATE
11/03/2021
Solid State LED
REFERENCE NUMBER
INS-2119-00
