Remote Transformer Installation Instructions
Warning
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY TO
PERSONS IMPORTANT SAFETY
INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before replacing lamp.
Lamp gets HOT quickly! Contact only switch/plug when
turning on.
Do not touch hot lens, guard, or enclosure (see diagram/
picture).
Keep lamp away from materials that may burn.
Do no touch the lamp at any time. Use a soft cloth. Oil
from skin may damage lamp.
Do not operate the luminaire fitting with a missing or
damaged shield.
SAVE THESE INSTRUCTIONS
Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.
Tilt
Assembly
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Low Voltage
Hot Surface
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY
Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all Local
and Provincial Codes.
Follow product label information and instructions.
Qualified Personnel must perform all servicing or relamping of
this product.
Before wiring to power supply and during servicing or relamping,
turn off power at fuse or circuit breaker before service.
The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause an
unsafe condition. The use of damaged components may cause
an unsafe condition and void product warranty.
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations · Suitable for recessed in ground locations
Optional
Accessory
Holder
Retaining
Clip
Opti Lock®
Assembly
Concrete Pour
Collar (CPC)
Silicone Filled
Wire Nuts

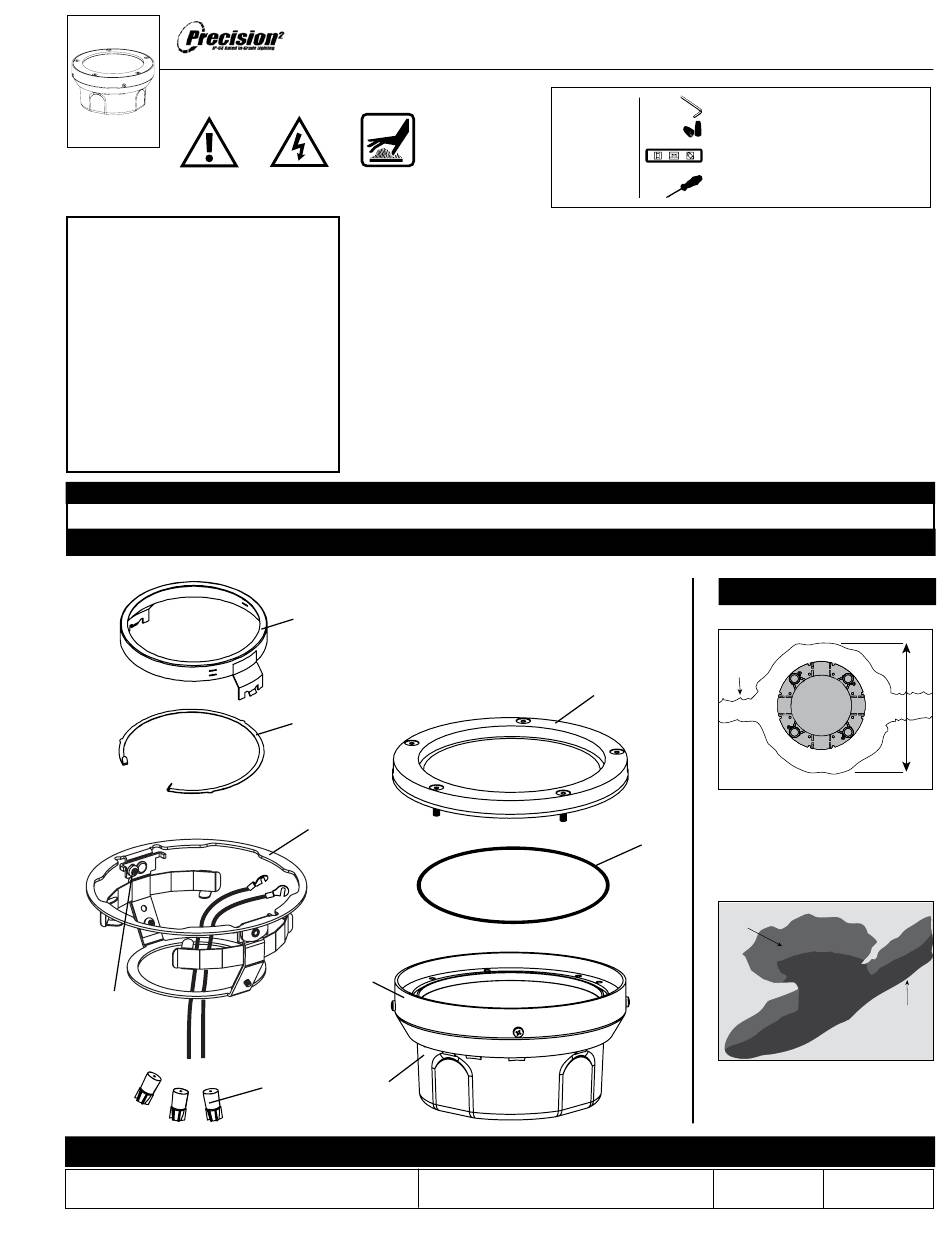

HP2 Shallow
Housing
Shallow Housing - Halogen (AR111/PAR36)
NEEDED
FOR
INSTALLATION:
By Others
AND INSTALLATION INSTRUCTIONS
Faceplate
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
HP
2
1/8" Allen Wrench
Wire Connectors
Level
Phillips Screwdriver
Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin may
damage the lamp and cause it to rupture.
Replace lamp only with correct wattage and type of lamp
marked on fixture label.
All gaskets, o-rings and sealing surfaces must be kept clean
during installation and service; failure to do this may cause an
unsafe condition and void product warranty.
Soil Prep
Conduit
trench
A. Determine Soil Type by referencing
DIG-IT Guide.
O-Ring
B. Dig hole 24" wide and 8" deep.
Excavated
for Housing
C. Prep soil according to DIG-IT Guide.
RELEASE DATE
7-13-16
SERIES™
Conduit
Trench
REFERENCE NUMBER
INS-1348-00
