Module Replacement
Warning

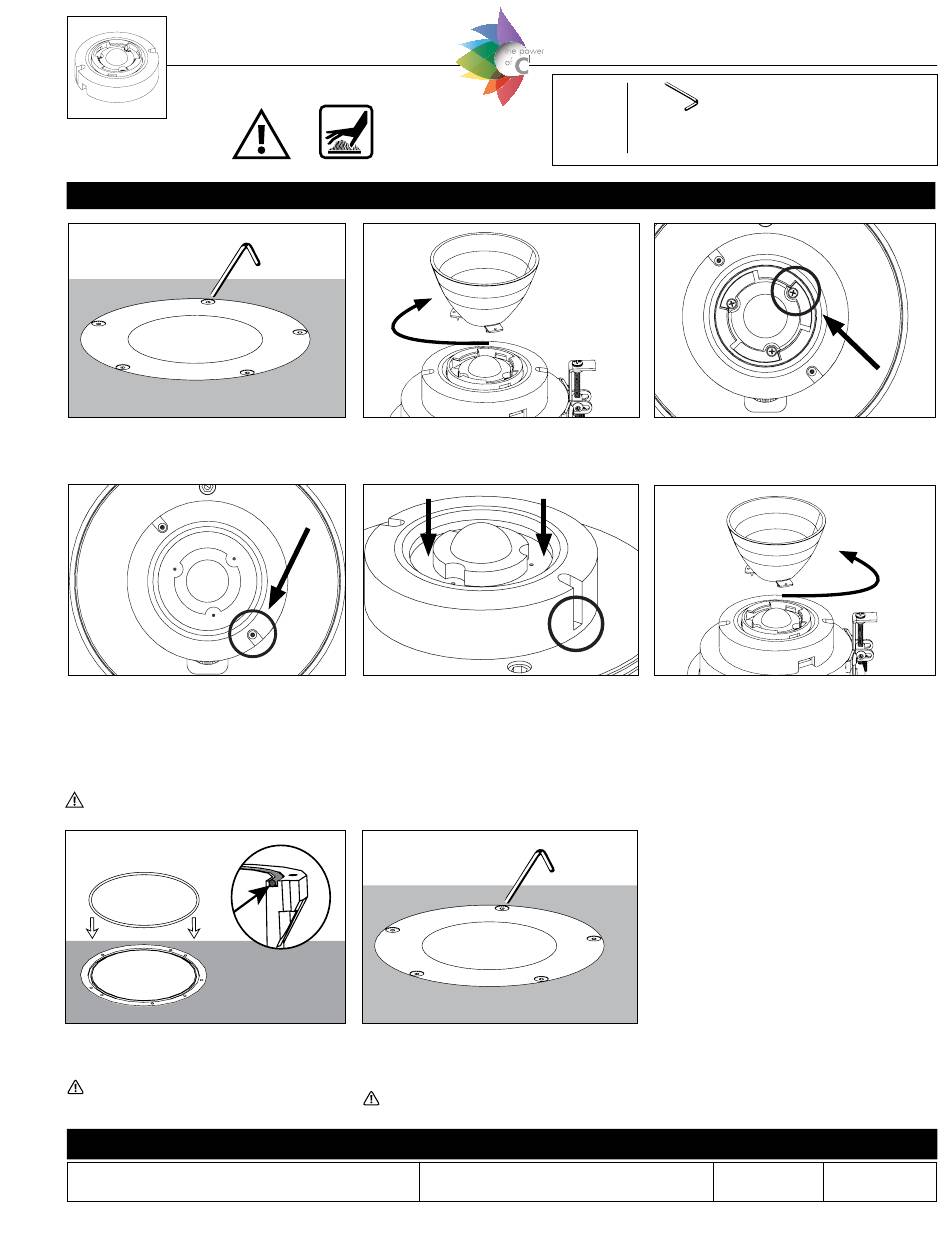

Replacing LED Module and Optic
1. Remove faceplate using 1/8" Allen wrench and
loosen the faceplate screws in a star pattern to 30
in-lbs. min.
4. Loosen and remove two (2) #2-56 screws holding
LED module to heatsink.
5. Carefully remove LED module from heatsink, then
disconnect the quick disconnects for the wiring
and the control wiring from the fixture to the LED
module.
Do not pull on connectors or wiring. Handle with
care.
9. Remove any dirt or debris in O-ring groove near top
of housing. Place O-Ring inside of groove.
Failure to clean groove of debris will cause fixture
to fail and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY
DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
Hot Surface
2. Gently twist optic to the left so optic tabs are clear
of optic holder and carefully pull away.
6. Connect new LED module to fixture via quick
disconnects for wiring and for control wiring. Place
new LED module onto heatsink, lining up module
with holes for screws.
7. Secure LED module to heatsink with two (2) #2-56
screws.
10. Install faceplate using 1/8" Allen wrench and hand-
tighten the faceplate screws in a star pattern to 30
in-lbs. min.
Do not use a power tool to install screws. Do not
exceed 40 in-lbs.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
LED MODULE / OPTICS
TOOLS
1/8", 5/32" & .050" Allen Wrench
NEEDED:
By Others
3. Loosen, then remove three (3) #2-28 screws from
optic module using .050" Allen wrench. Remove
optic holder from module.
8. Line up optic tabs in the optic holder, then gently
twist to the right.
RELEASED
4-18-16
HP2 - Color Tuning
REFERENCE NUMBER
INS-2321-14
