Remote Transformer Installation Instructions

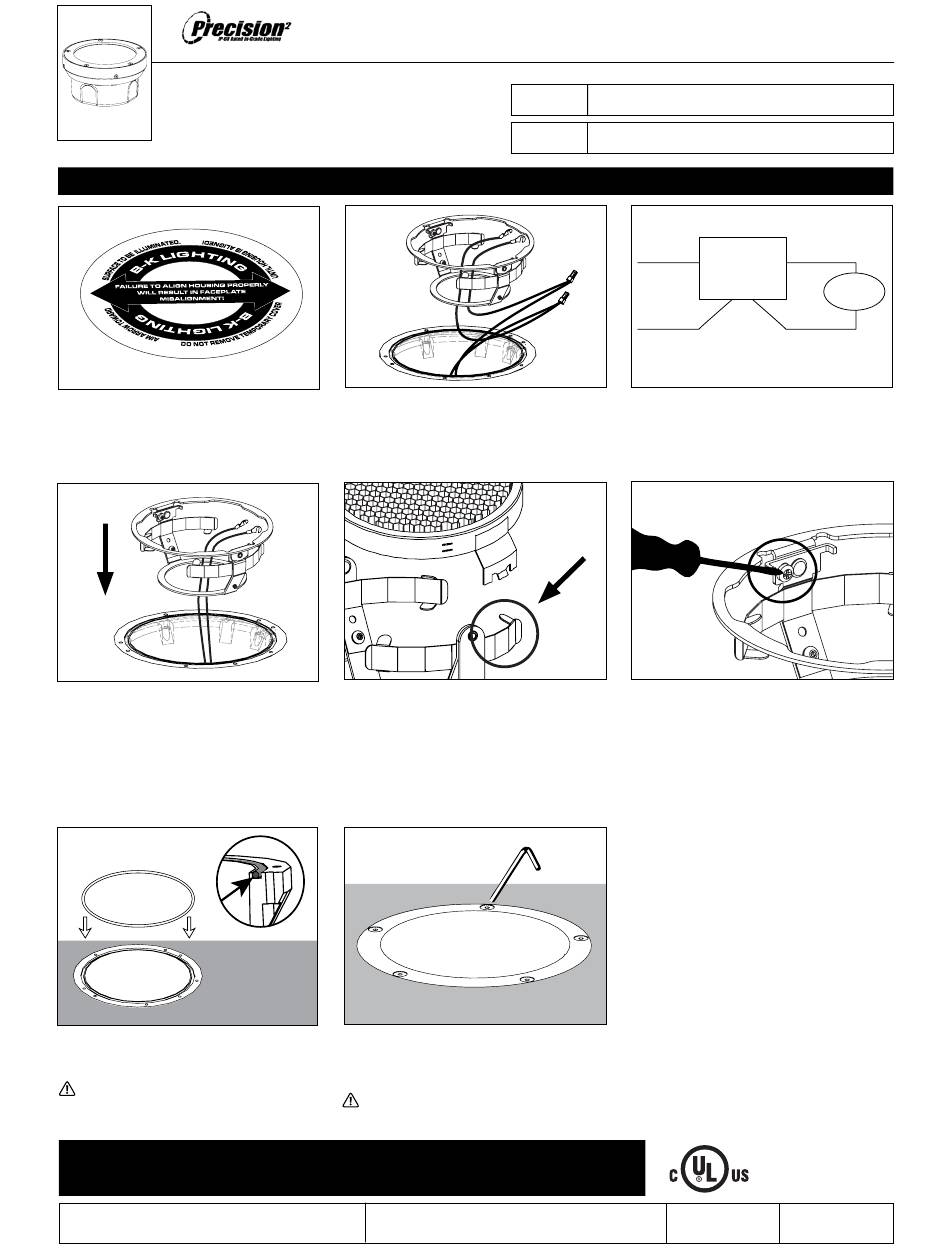

Fixture Installation

1. Remove temporary cover.
3. Place OptiLock® in HP2 housing and align
keyhole notch under one of (3) #8 screw heads.
Install proper lamp. Rotate horizontally to
desired aiming position, then tighten (2) #8
Phillips screws using Phillips screwdriver. Install
proper AR111 or PAR36 halogen lamp.
6. Remove any dirt or debris in O-ring groove near
top of housing. Place O-Ring inside of groove.
Failure to clean groove of debris will cause
fixture to fail and void product warranty.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Shallow Housing - Halogen (AR111/PAR36)
2. Make connections using silicone filled wire nuts
(provided) from OptiLock® to secondary wiring.
See wiring diagram.
4. For Optional Accessory Holder: Insert
accessory holder tabs onto arms on OptiLock®.
7. Install faceplate using 1/8" Allen wrench and
hand-tighten the (5) #10-24 faceplate screws in
a star pattern to 30 in-lbs. min.
Do not use a power tool to install screws. Do
not exceed 40 in-lbs.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
PROJECT:
TYPE:
LINE
Transformer
COM
WIRING DIAGRAM
5. Aim vertically by turning the #10 Phillips head
screw on OptiLock® assembly with Phillips
screwdriver.
RELEASE DATE
7-13-16
HP SERIES™
2
12V
Remote
Fixture
COM
REFERENCE NUMBER
INS-1348-00
