Installation Instructions

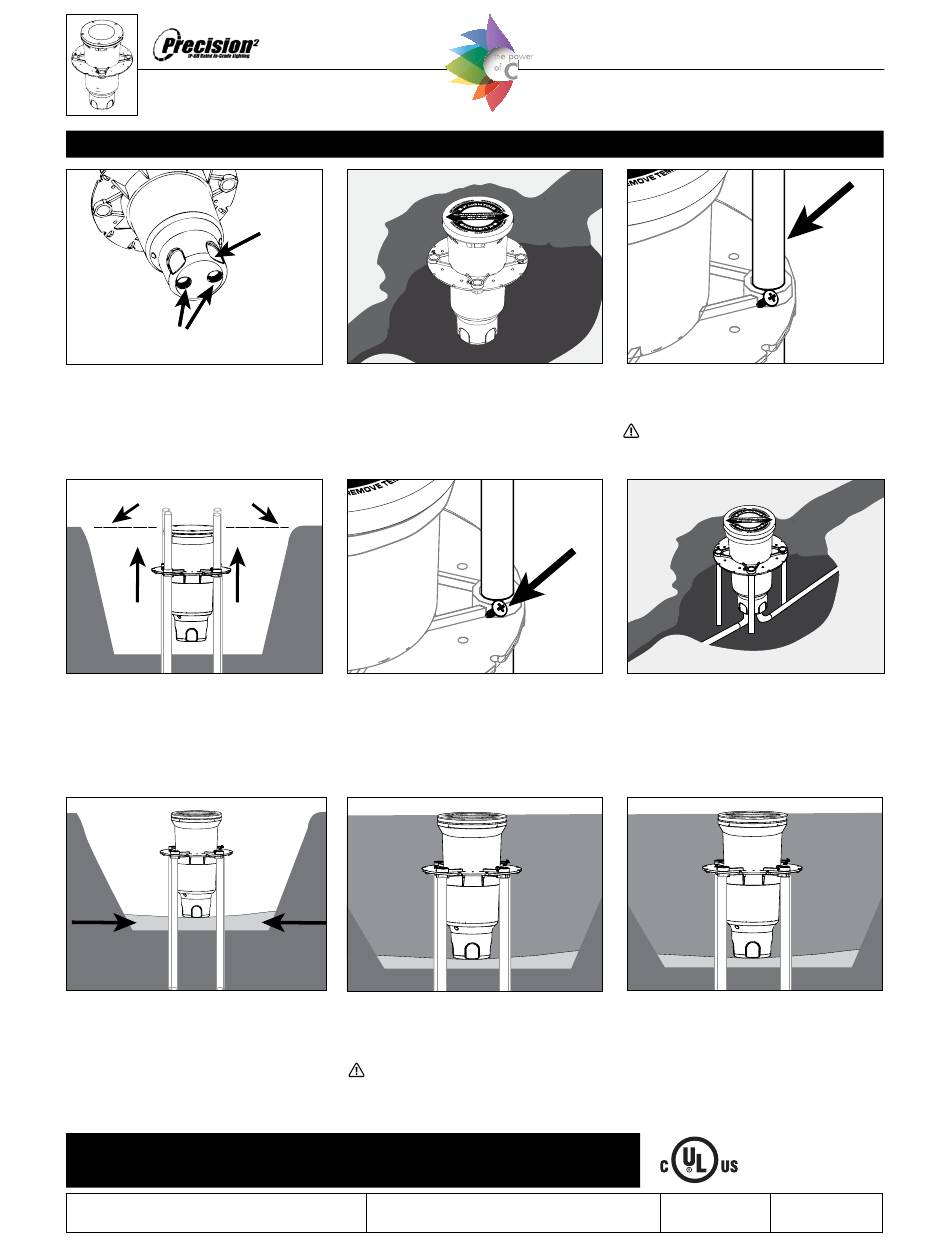

Housing Installation

Threaded Entry
1. Connect branch conduit connectors (By Others)
to the junction box using either the threaded
conduit entries on the bottom of the junction
box or through holes drilled into the sides of the
junction box.
Flush with finished grade
4. Raise housing on EMT so concrete pour collar is
flush with finished grade. Use a level to aid in
housing installation.
8. Per DIG-IT Guide, backfill the gap between the
bottom of housing and bottom of hole with
sand for drainage.
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
Side Flats
2. Place housing in hole. Align junction box in the
path of the conduit trench.
5. When housing is level, tighten screws on
Stability Flange™ to secure housing to EMT.
Remove excess EMT as needed.
9. For soil installation: Fill and tamp soil to
the appropriate height leaving room for sod,
pavers, etc. to be level with the top of the
temporary cover.
Soil installation is not drive-over rated.
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
www.bklighting.com • info@bklighting.com
HP
Solid State LED with Color Tuning
3. Insert (4) pieces of ½" EMT conduit through the
Stability Flange™. Hammer into substrate until
secure.
Leave sufficient clearance to elevate housing
to finished grade.
6. Connect the conduit to the conduit connectors.
7. Pull primary branch circuit wiring into junction
box.
10. For concrete installation: Fill the hole around
the fixture housing to 12" below the finished
grade with clean fill dirt and tamp carefully to
prevent settling of fixture. Pour concrete and
finish as required flush with the top surface of
the temporary cover.
RELEASE DATE
12-11-16
SERIES
2
REFERENCE NUMBER
INS001399
