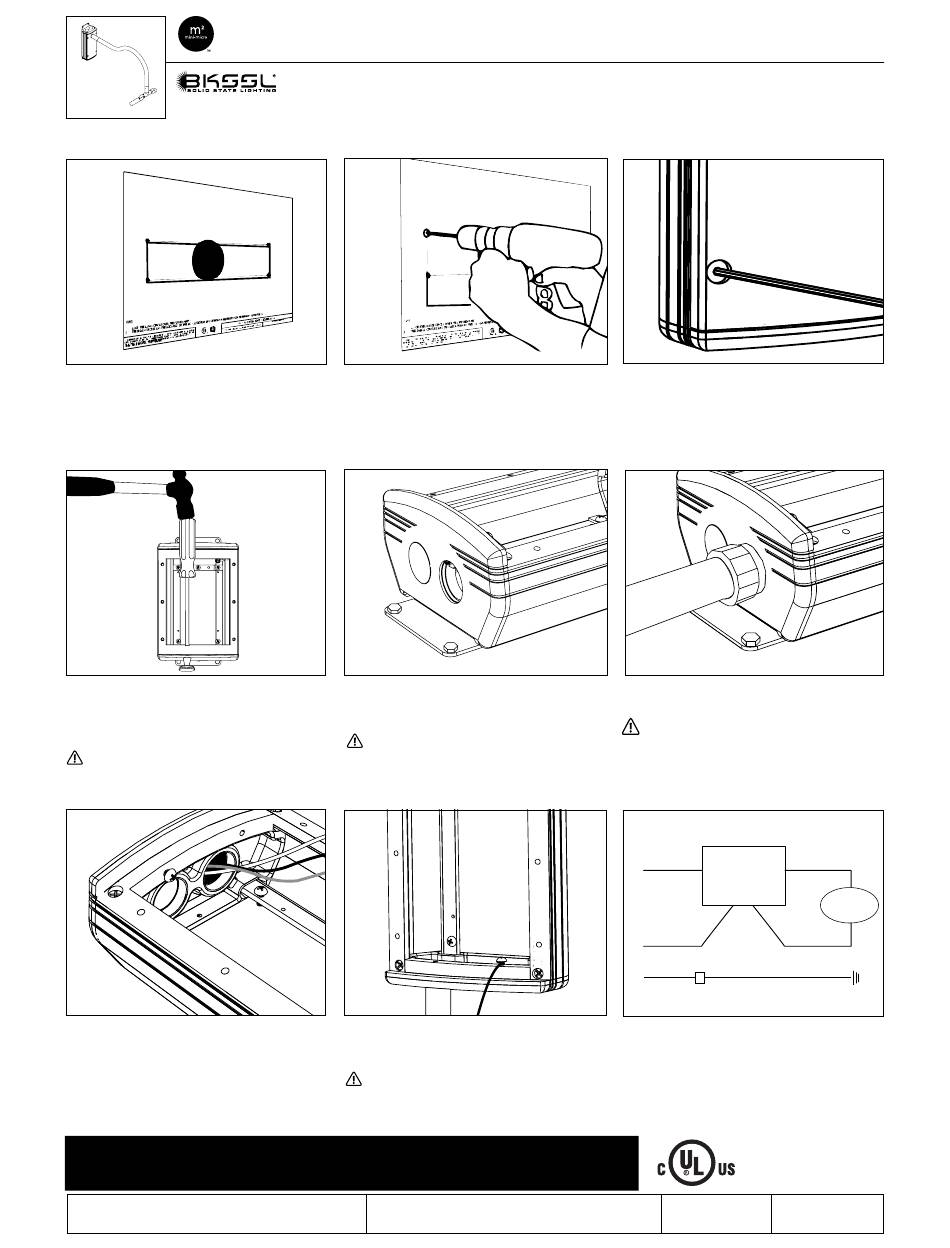

Installation Instructions - B-K lighting Mini-Micro Series Installation Instructions Manual

1. Prepare for final mounting position according to
designed lighting plan.
4. Remove Patented Knockout(s) as necessary
from the inside of the UPM housing. Leave
remaining unused knockouts in place to
maintain seal.
NOTE: Patented design featuring a silicone
'O' Ring allowing knockout to be tapped back
into place to renew seal integrity.
Neutral Hot Ground
Neutral Hot
7. Pull branch circuit wiring necessary for
installation (By Others.)
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
B-K LIGHTING
GREEN
WHITE

Installation Instructions

BARE WIRE
IN UPM
2. Drill holes into surface for ¼" fasteners (By
Others) on locations illustrated on template.
5. Attach the UPM housing at mounting brackets
with ¼" fasteners (By Others). Use suitable
mounting hardware for surface.
NOTE: Many methods exist to bolt to a flat
surface. The fixture is provided with mounting
brackets with ¼" holes.
Neutral
LAMP
Ground
BARE WIRE
IN UPM
8. Attach tether wire under screw head at the base
of the UPM housing and tighten. Slowly lower
the faceplate until tether is taut.
NOTE: Faceplate tether supplied with UPM
is designed as an installation aid and NOT a
safety cable. Do not add weight to, or drop
faceplate.
40429 Brickyard Drive • Madera, CA 93636 • USA
www.bklighting.com • info@bklighting.com
BLUE
RED
BALLAST
BLACK
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
Hot Ground
BLUE
WHITE
GROUND
QUICK DISCONNECT
BLUE
BLUE
RED
BALLAST
GREEN WHITE
LAMP
WHITE GROUND
BLACK
LINE (BLACK)
NEUTRAL (WHITE)
GROUND (GREEN)
BARE WIRE
IN UPM
559.438.5800 • FAX 559.438.5900
TWIN SIGN STAR™
Neutral Hot Ground
Mini-Micro™ Series on UPM™
3. Loosen (4) #6-32 captive screws using a 5/64"
Allen wrench and disconnect quick disconnect
to remove faceplate of UPM housing.
6. Connect 3/4" conduit connector through female
threaded conduit entry.
NOTE: Surface conduit is a common entrance
for water if not properly sealed. Seal connector
threads and conduit with a suitable sealant
(Teflon tape, adhesive, etc.). Sealing the
conduit after knockouts are removed is
required to maintain warranty.
BLUE
WHITE
LAMP
GROUND
QUICK DISCONNECT
GREEN
WHITE
LINE
Transformer
BARE WIRE
IN UPM
QUICK DISCONNECT
BLUE
COM
RED
BALLAST
GREEN
GROUND GROUND IN HOUSING
WHITE
BLACK
LINE (BLACK)
WIRING DIAGRAM
NEUTRAL (WHITE)
GROUND (GREEN)
9. Use waterproof wire connectors (By Others) to
connect transformer primary leads to branch
circuit wires. Connect incoming ground to
ground wire provided in UPM housing. See
wiring diagram.
RELEASED REFERENCE NUMBER
7-25-18 INS-2249-02
BLUE
RED
BALLAST
12V
BLACK
LINE (BLACK)
NEUTRAL (WHITE)
FIXTURE
GROUND (GREEN)
COM
