- Page 1 COMMERCIAL HEAVY BAG STAND Model 522CHBS Owner’s Manual V2.0—06.2012 www.tko.com...
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 3 Hours: Monday-Friday 8:30am to 4:30pm CT © Copyright 2011, TKO Sports Group USA Limited. All rights reserved. TKO Sports Group USA Limited. 4660 Pine Timbers, Suite 198, Houston, TX 77041 Phone + 713-895-9270 Fax + 713-934-8495 www.tko.com...

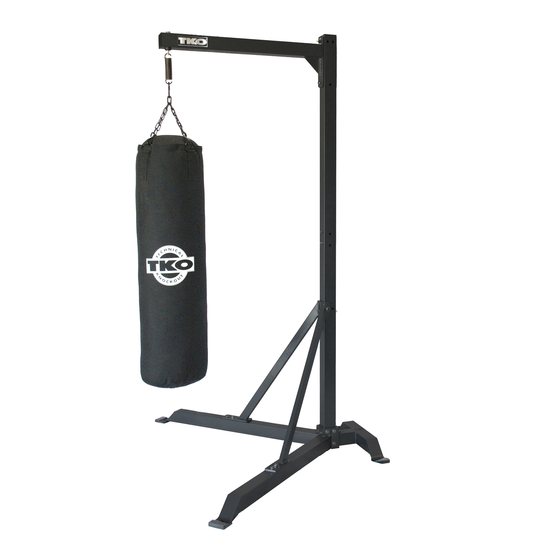

- Page 4 522CHBS Product Diagram Commercial Grade Heavy Bag Stand...
- Page 5 Exploded Diagram EXPLODED-VIEW heavy bag mount shaft assembly are installed in the heavy bag support frame (part #7)
- Page 6 Parts List PARTS LIST 2. Base Frame- Left (1pc) 3. Base Frame- Right (1pc) 4. Base Cross Frame (1pc) 5. Angel Support Frame-Right (1pc) 6. Angel Support Frame-Left (1pc) 7. Heavy Bag Support Frame (1pc) 8, 9, 10, 11, 12,. Heavy Bag Mount Shaft Assembly (1 set) 13.
- Page 7 Assembly ASSEMBLY STEP STEP 1. Attach the Right and Left Base Frame (2&3) and Base Cross Frame (4) to the Upright (1) using 5 Hex Bolts (16), 10 Washers (19) and 5 Lock Nuts (13). Do not tighten these nuts and bolts at this time. STEP 2.
- Page 8 Assembly ASSEMBLY STEP STEP 3. Attach the Heavy Bag Support Frame (7) to the Upright (1) with 3 Hex bolts (17), 6 Washers (19) and 3 Lock nuts (13), put the metal plate(15) in the opposite side. Tighten all 3 nuts and bolts securely using wrenches.
