Tunstall New Pebbell Quick User Manual

Quick User Guide for New Pebbell

Contents of Box

Pebbell
Key Ring
Lanyard
Charging Dock
White Cable
Black Charging Block

Getting Started

Connect white cable to back of Charging Dock and then the opposite end to Black Charging Block

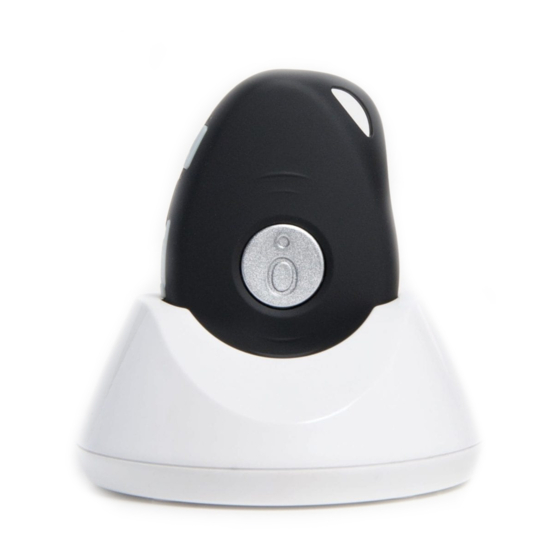

Plug into power source and place your Pebbell on the dock with the " O " button facing you.
The Pebbell will give a quick vibration to indicate it is on correctly and charging.
Charging will take approximately 2 hours (red light on the white base will go off)
Once charged remove Pebbell, press and hold the "O" button for approx. 3 secs and it will vibrate.
The Pebbell will sound once and vibrate and then it will give a ring tone, the monitoring
operator will then speak through the Pebbell.
Testing the GPS take your Pebbell outside for approx. 5 - 10 mins and then activate the Pebbell
as described as above. Ask the Monitoring operator to give you a GPS location, this
is only required on the initial test.
Your device is now ready to use.
