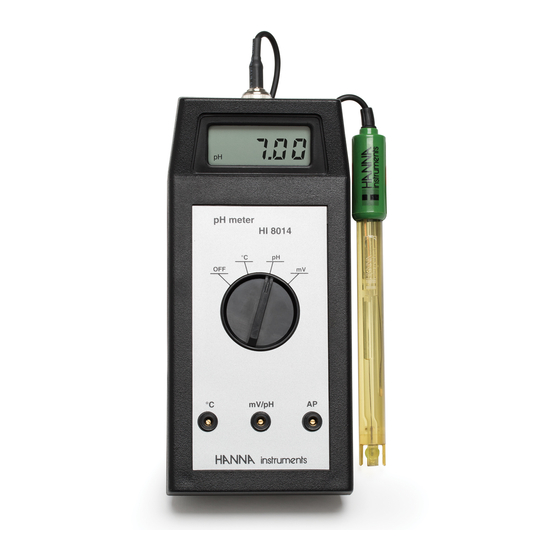

  • Page 1 HI8014 Portable pH Meter...
  • Page 2 Dear Thank you for choosing a Hanna Instruments product. Customer, Please read this instruction manual carefully before using the instrument. This manual will provide you with the necessary information for correct use of the instrument, as well as a precise idea of its versatility.
  • Page 3 Preliminary Examination ............Safety Measures ..............Description ................Functional Description ............Specifications ................ Operational Guide ..............pH Calibration ............... Taking REDOX measurements ..........mV output ................Display Codes Guide .............. Electrode Conditioning and Maintenance ......13 Battery Replacement ............16 Accessories ................17...
  • Page 4 If noticeable damage is found, notify your Dealer or the nearest Hanna Customer Service Center. Each HI8014 meter is supplied with: • HI1230B ‑plastic body, double jonction, gel, combination •...
  • Page 5 HI8014 is hand‑held pH/mV meter with interchangeable plastic‑ body electrode, simple controls on the front panel, low battery detector, large easy‑to‑read display, simple calibration procedure and lightweight ABS plastic housing. HI8014 is an affordable portable pH/mV meter. The pH or mV ranges are easily selected with a rotary knob, as well as the °C...
  • Page 6 Range 0.00 to 14.00 ±1999 Resolution 0.01 Accuracy ±0.01 ±1 @ 25 °C / 77 °F mV Manual 2 point through offset and pH Calibration slope trimmers Offset Calibration ±1 pH Slope Calibration from 85 to 105% Temperature Manual from 0 to 100 ºC Compensation (32 to 212 ºF) HI1230B combination, double‑...

  • Page 7: Initial Preparation

    INITIAL PREPARATION Each meter is supplied complete with a 9V battery. Slide off the battery compartment cover on the back of the meter, install the battery while paying attention to its polarity. Always remove the electrode protective cap before taking any measurements.
  • Page 8 After cleaning, rinse the electrode with some of the sample to be measured. Temperature compensation The pH reading is directly affected by temperature. In order for the meter to measure the pH accurately temprature must be taken into consideration. HI8014 provides only for manual compensation.

  • Page 9: Orp Measurements

    ORP MEASUREMENTS Connect an ORP electrode to the BNC socket on the top of the meter. To enter the “mV” mode (ORP Oxidation Reduction Potential) switch the rotary knob to the mV position. To measure the mV of a sample submerge the ORP electrode tip (4 cm/1½”) in the sample to be tested.
  • Page 10 (HI7004) if you are going to measure acidic samples, or pH 7.01 (HI7007) and pH 10.01 (HI7010) for alkaline measurements. If you need to calibrate HI8014 to NBS standards, use pH 6.86 (HI7006) instead of pH 7.01 and pH 9.18 (HI7009) instead of pH 10.01.
  • Page 11 Note: The electrode should be submerged approximately 4 cm (1½”) into the solution. The HI98501 should be located as close as possible to the pH electrode. • Set the rotary knob to °C position to display the manual temperature setting and adjust the °C trimmer until the LCD shows the measured temperature.
  • Page 12 4.01 or 7.01 or 10.01. With the temperature at 20 °C, the display should show pH 4.00 or 7.03 or 10.06. Likewise, at 50 °C, the display should show pH 4.06 or 6.98 or 9.82. HI8014 has the capability to take ORP measurements, if using an optional ORP electrode.
  • Page 13 pH, mV and °C readings can be transmitted through the output sockets at a voltage that proportionally matches the displayed value. For example, when the meter reads 2.00, 7.00 or 12.00 pH, it emits a 200, 700 or 1200 mV signal, respectively. This makes it unnecessary to use conversion tables and charts.
  • Page 14 * Only available with refillable electrodes. PREPARATION Remove the protective cap. DO NOT BE ALARMED IF ANY SALT DEPOSITS ARE PRESENT. This is normal with electrodes and they will disappear when rinsed with water. During transport tiny bubbles of air may have formed inside the glass bulb.

  • Page 15: Test Measurement

    If the bulb and/or junction are dry, soak the electrode in HI70300 Storage Solution for at least one hour. For refillable electrodes: If the refill solution (electrolyte) is more than 2½ cm (1”) below the fill hole, add HI7082 (3.5M KCl Electrolyte Solution) for double junction or HI7071 (3.5M KCl+AgCl Electrolyte Solution)

  • Page 16: Cleaning Procedure

    CLEANING PROCEDURE General Soak in Hanna HI7061 General Cleaning Solution for approximately 30 minutes. Removal of films, dirt or deposits on the membrane/junction: Protein Soak in Hanna HI7073 Protein Cleaning Solution for 15 minutes. Inorganic Soak in Hanna HI 7074 Inorganic Cleaning Solution for 15 minutes.
  • Page 17 • Slow Response/Excessive Drift: Soak the tip in Hanna Solution HI7061 for 30 minutes, rinse thoroughly in distilled water and then follow the Cleaning Procedure (see page 16). • For ORP Electrodes: polish the metal tip with a lightly abrasive paper (paying attention not to scratch the surface) and wash thoroughly with water.
  • Page 18 This meter is powered by a 9V battery that is located on the rear of the instrument. When the battery becomes weak, the meters provide the following: reaching a certain minimum threshold, automatically switches the LCD off. Since a low voltage may also result in loss of calibration data or unreliable measurements, it is recommended to replace the battery immediately.
  • Page 19 pH CALIBRATION SOLUTIONS HI70004P pH 4.01 buffer solution, 20 mL sachet, 25 pcs HI7004M pH 4.01 buffer solution, 230 mL bottle HI7004L pH 4.01 buffer solution, 500 mL bottle HI7006M pH 6.86 buffer solution, 20 mL bottle HI7006L pH 6.86 buffer solution, 500 mL bottle HI70007P pH 7.01 buffer solution, 20 mL sachet, 25 pcs HI7007M...
  • Page 20 HI7082 3.5M KCl electrolyte, 4 x 30 mL, for double junction electrodes ORP SOLUTIONS HI7020M Test solution, 200‑275 mV, 230 mL bottle HI7020L Test solution, 200‑275 mV, 500 mL bottle HI7091L Reducing pretreatment solution HI7092M Oxidizing pretreatment solution, 230 mL bottle HI7092L Oxidizing pretreatment solution, 500 mL bottle pH ELECTRODES...

  • Page 21: Other Accessories

    FC200B PVDF body, single junction, conic, Viscolene, non‑refillable, combination pH electrode. Use: meat & cheese. FC210B Glass body, double junction, conic, Viscolene, non‑refillable combination pH electrode. Use: milk, yogurt. FC220B Glass body, triple ceramic, single junction, refillable, combination pH electrode. Use: food processing.
  • Page 22 HI731326 Calibration screwdriver (20 pcs.) HI8427 pH and ORP electrode simulator with 1 m (3.3’) coaxial cable ending in female BNC connectors HI931001 pH and ORP electrode simulator with LCD and 1 m (3.3’) coaxial cable ending in female BNC connectors...

  • Page 23: Warranty

    Service department and then send it with shipping costs prepaid. When shipping any instrument, make sure it is properly packed for complete protection. Hanna Instruments reserves the right to modify the design, construction or appearance of its products without advance notice.
  • Page 24 World Headquarters Hanna Instruments Inc. Highland Industrial Park 584 Park East Drive Woonsocket, RI 02895 USA www.hannainst.com Local Office Hanna Instruments USA 270 George Washington Highway Smithfield, RI 02917 Phone: 800.426.6287 Fax: 401.765.7575 e‑mail: tech@hannainst.com MAN8014V 06/16 Printed in ROMANIA...
